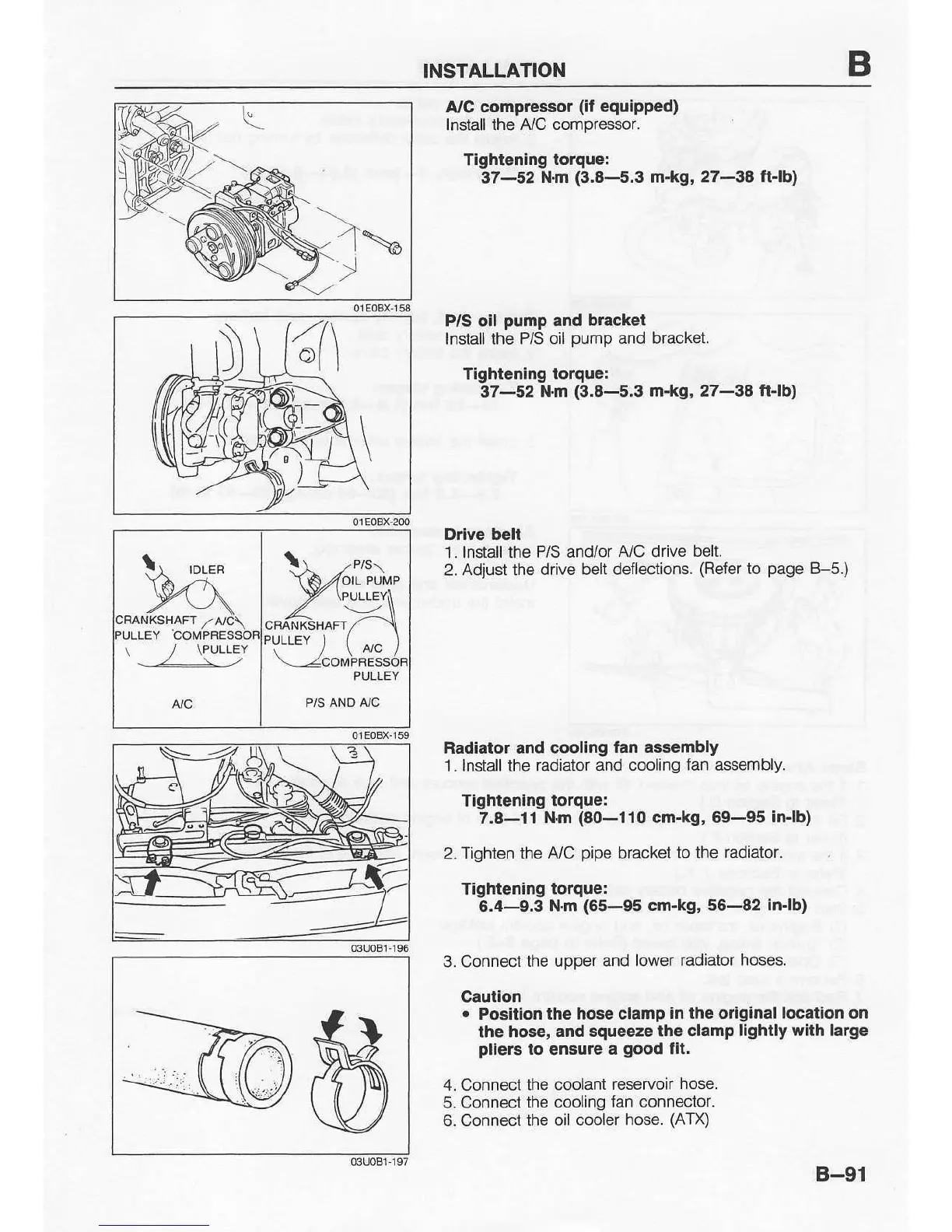

Mazda 121 - P;S Oil Pump and Bracket; Radiator and Cooling Fan Assembly

INSTALLATION
&6
A/C
compressor
(it
equipped)
Install the fuC compressor.
Tightening
torque:
37-s2
N.m
(3.8-s.3
m-kg, 27-38
ft-lb)
P/S oil
pump
and bracket
lnstall the P/S oil oump
and bracket.
Tightenlng torque:
37-52
N.m
(3.8-5.3
m-kg, 27-38 ftlb)
Drive
bell
1.
lnstall the P/S and/or
A/C drive belt.
2. Adjust the
drive bell deflections.
(Refer
to
page
B-5.)
Radiator and cooling
fan assembly
1. Install the radiator and
cooling lan assembly.
Tighlening
torque:
7.8-11 N.m
(80-il0
cm-kg, 69-95
in-lb)
2.
Tighten the
AJC
pipe
bracket to the
radiator.
Tightening
torqle:
6.4-9.3
Nm
(65-95
cm-kg, 56-82 in-lb)
3. Connect
the uooer and
lower radiator
hoses.
Caution
.
Poaltion
the hose clamp
in the orlginal location on
ihe hose, and
aqueeze the
claBp lightly wlth large
pllers
tg
ensure
a
good
fit.
4. Connect
the coolant
reservoir
hose.
5. Connect
the cooling
ian connector.
6. Connect the
oil cooler hose.
(Al'X)
