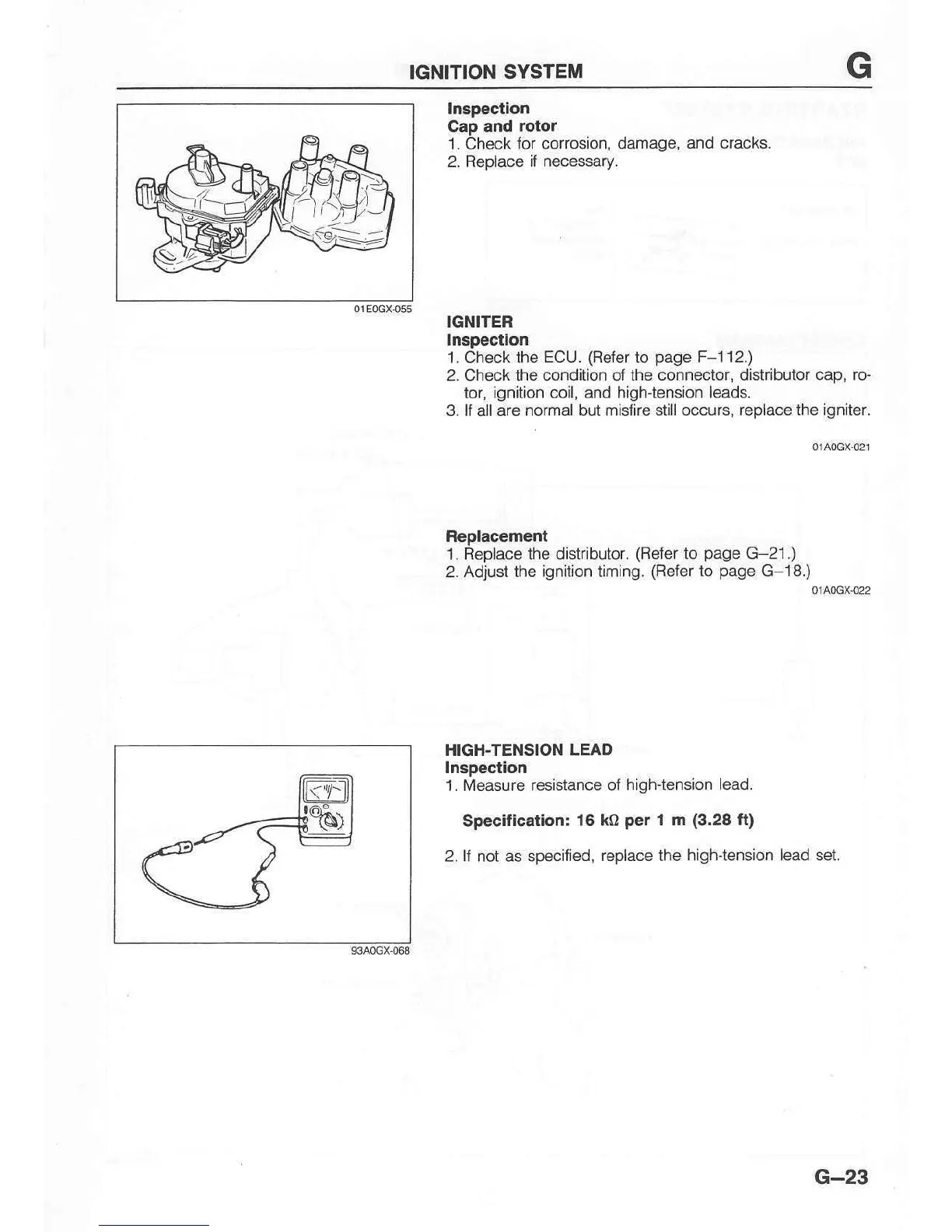

IGNITION SYSTEM
Inspectlon
Cap and
rotor
1. Check
for corrosion, damage, and cracks.
2. Replace il
necessary.
01E0GX.055
IGNITER
lmpqction
1. Check the
ECU.
(Refer
to
page
F-| 12.)
2. Check the condition of the connector,
distributor cap, ro-
tor, ignition coil, and high-tension
leads.
3. ll all are normal but misfire still occurs,
replace the igniter.
01a0GX.021
Feplacemert
1. Replace the distributor.
(Refer
to
page
G-21.)
2.
Adjust the ignition timing.
(Refer
to
page
G-18.)
OlAOGX€2
HIGH-TENSION LEAO
Insp€ciion
1. Measure resislance of
high'tension lead.
Spscification:
16 m
per
I n
(3.28
ff)
2. lf not as specified,
replace the high-tension
lead
set.
G-23
