J

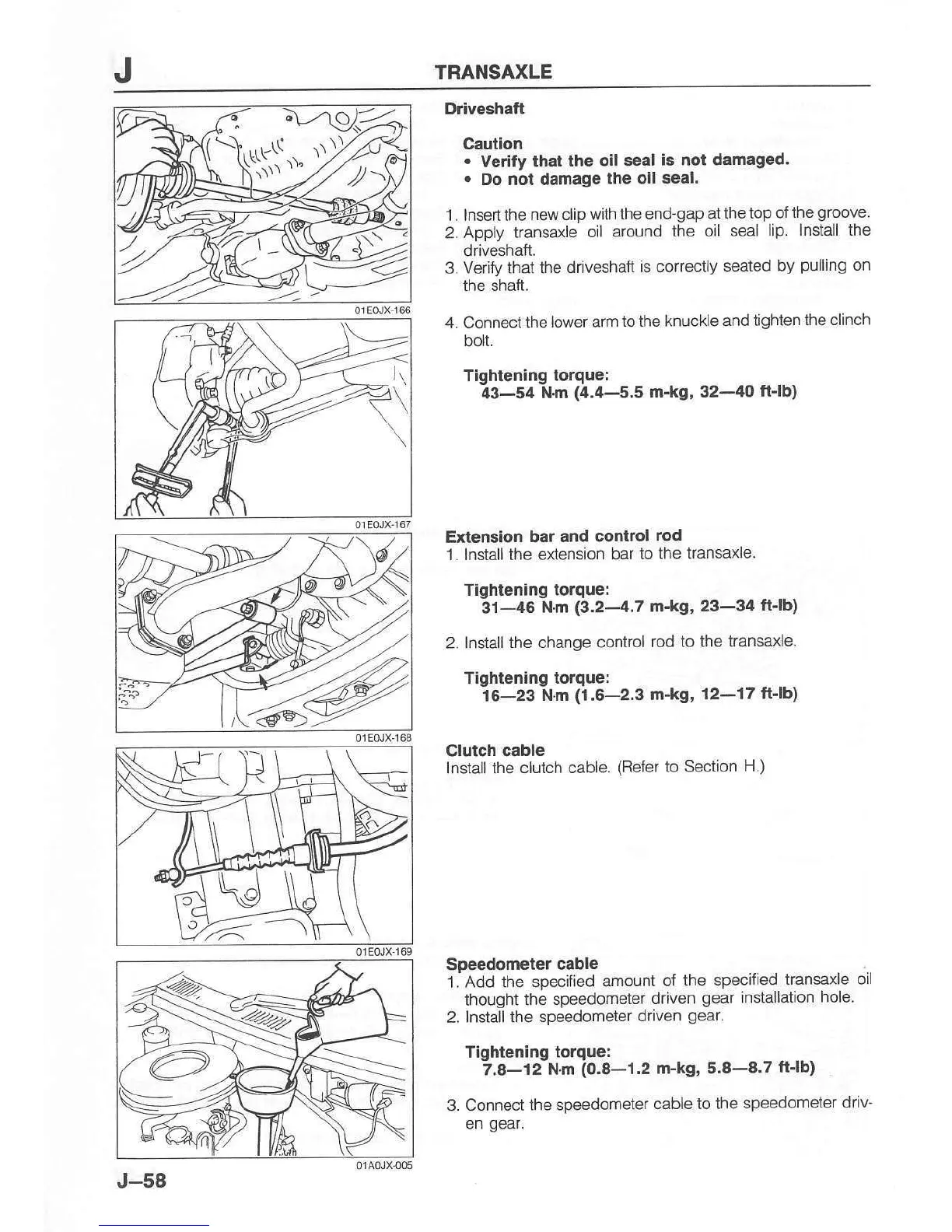

TRANSAXLE
f\rt")
Ddveshaft
Cautlon
.
Verlty that
the oil seal
is not damaged.
.
Do not damage
the oil seal.
'1
. Insert the
new clip with
the end-gap at
the top ot
the
groove
2.
Apply transaxle
oil around
the oil
seal lip
lnstall the
driveshaft.
3.
Verity that the driveshaft
is correctly seated
by
pulling
on
the shaft.
4. Connect the
lower arm
to the knuckle and
tighten the
clinch
bolt.
Tightening torque:
43-54
N.m
(4.4-5.5
m-kg,
32-40
tt-lb)
Extenslon
bar and conlrol
rod
1. lnstall the
extension bar
to the transaxle.
Tightenin9 torque:
31-46
Nfl
(3.2-4.7
m-kg,
23-34
fr'b)
2.
Install the change control
rod to
the transaxle.
Tightening
torque:
16-23
N.m
(1.6-2.3 m-kg,
l2-17 ft'lb)
Clulch cable
Install the
clutch cable.
(Refer
to Section
H.)
Speedometer
cable
1. Add the sDecified
amount
oi the
specified
kansaxle oil
thought the
speedometer
driven
gear
insiallation
hole
2. lnstall the
speedometer
driven
gear.
Tightening
torque:
7.8-12
Nm
(0.8-1.2
m-kg, 5.8-8.7
ft-lb)
3.
Connect the speedometer
cable to the
speedometer
driv'
en
gear.
*
<\
J-58
