Mazda 121 - Auxiliary Parts

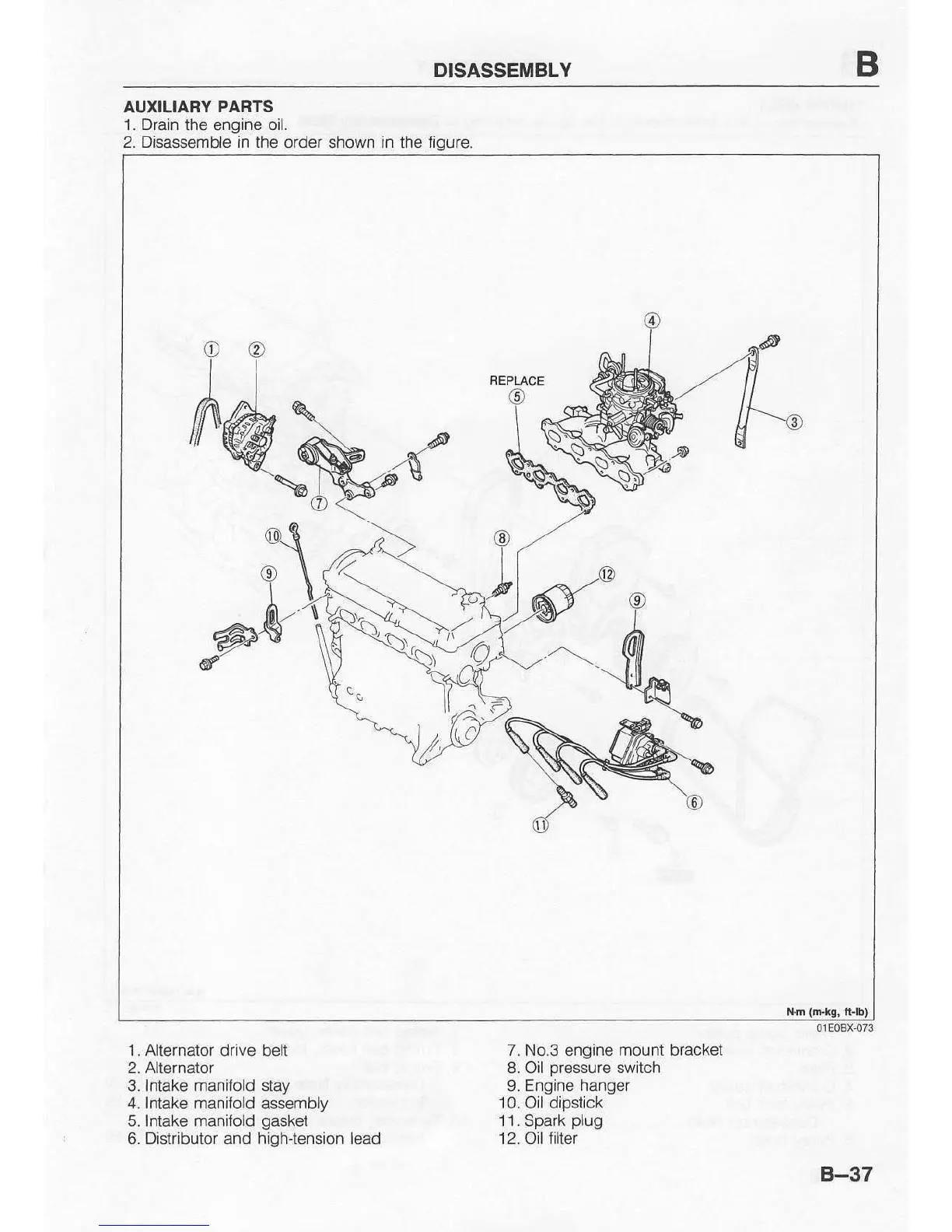

DISASSEMBLY
AUXILIARY
PARTS
'1.
Drain
the engine oil.
2. Disassemble in the
order shown
in
the
fioure.
oo
z,
\
N,)
ro
l
g
@
6P
'1.
Alternator drive belt
2. Alternator
3. Intake manifold stay
4. lntake manifold
assembly
5.
Intake manifold
gasket
6.
Distributor and
highlension lead
7. No.3 engine mount bracket
8. Oil
pressure
switch
L Engine hanger
'10.
Oil dipstick
1 1. Spark
plug
12. Oil filter
B-37
