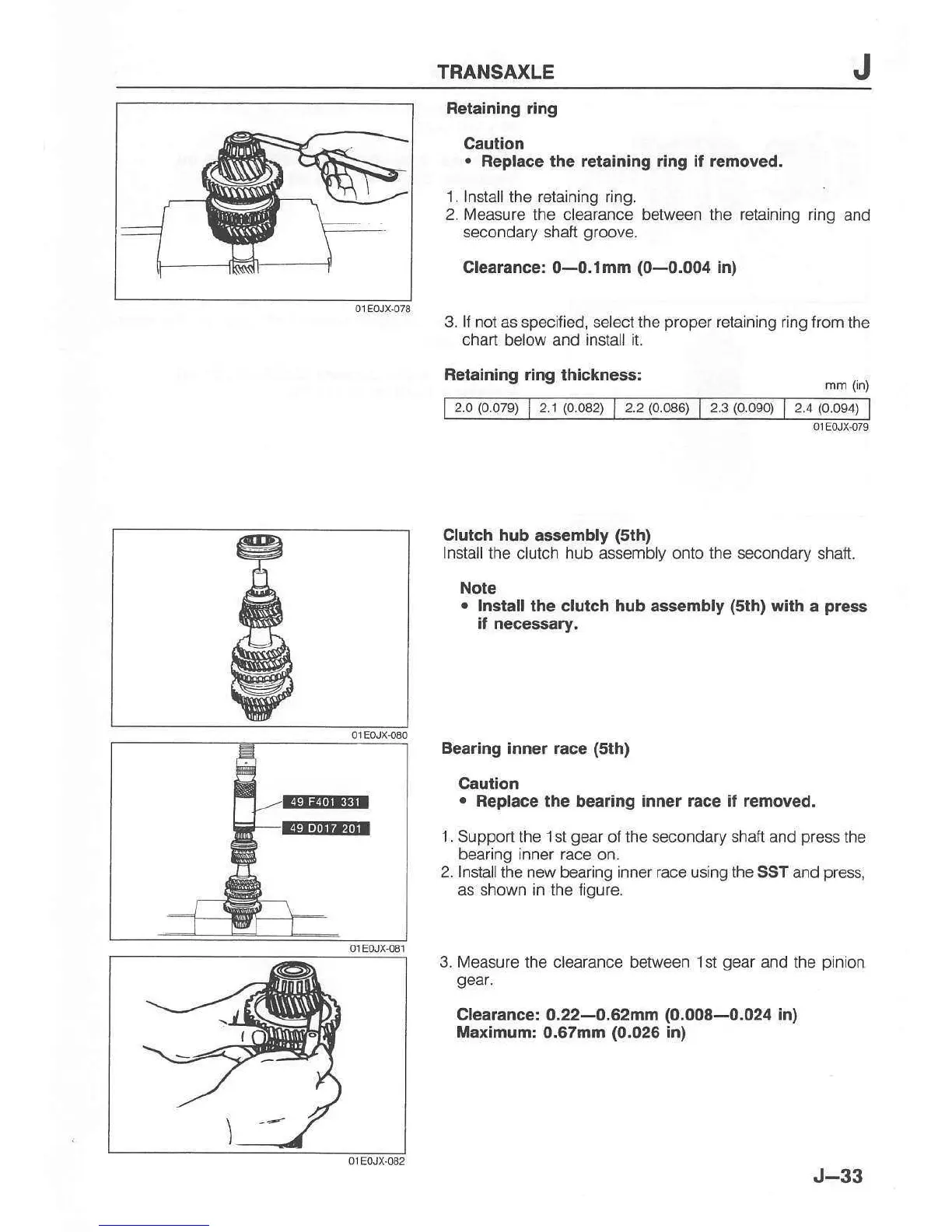

TRANSAXLE
J
Rstaining rlng
Cautlon
.
Roplace the retalning ng ll removed.
1. Install
the
retaining ring.
2. Measure the clearance between
the
retainino
secondary shaft
groove.
Clearance: 0-0.1mm
(0-0.004
in)
ring
and
3. ll not as specilied, select the
proper
retaining ring from
the
chart
below and
install it.
Retaining ring
thickness:
mm
(in)
2.0
(0.079)
|
2.1
{0.082)
|
2.2
(0.086)
|
2.3
(O.O9O)
|
24
(0.094)
Clutch
hub assembly
(5th)
Install
the clutch
hub
assembly onto the secondary shaft.
Note
.
Installthe clutch hub
assembly
(sth)
wilh
a
press
it necessary.
Bearlng
Inner race
(5th)
Cautlon
.
Replace
the bearlng Inner race it
removed.
1. Support the lst
gear
of
the secondary shaft and
press
the
bearing inner
race on.
2. Installthe
new bearing inner
race
usingthe SST and
press,
as shown in the figure.
3. lvleasure
the clearance between
1st
gear
and the
pinion
gear.
Clearance: 0.22-0.62mm
(0.008---{t.024
in)
Maximum:
0.57mm
(0.025
in)
J-33
