Mazda 121 - Pulley Lock Bolt

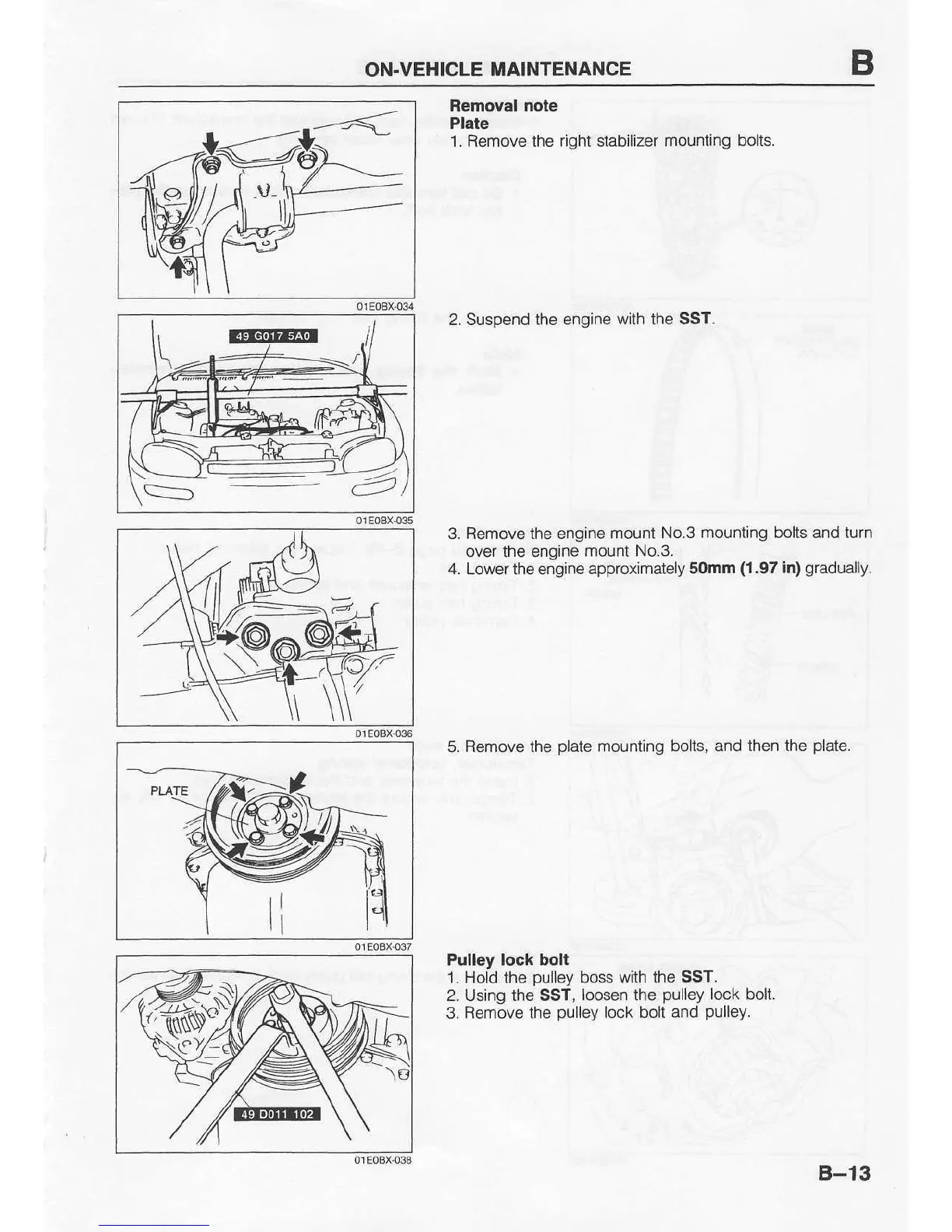

ON-VEHICLE
MAINTENANCE
Removal note
Plate
1. Remove lhe right stabilizer
mounting bolts.
2. Suspend the
engine with the SST.
5. Remove the
plate
mountingbolts, and then the
plate.
Remove the engine mounl
No.3 mounting bolts and turn
over the engine mount
No.3.
Lower the engine
approximately 50mm
(1.97
In)
gradually.
3
4
Pulley
lock
bolt
1. Hold the oullev
boss with the SST.
2. Using the SST,
loosen the
pulley
lock bolt.
3. Remove
the
pulley
lock bolt
and
pulley.
i.- i\\
z
B-13
