Mazda 121 - Transaxle Removal

TRANSAXLE
J
REMOVAL
1. Disconnect the negative
battery
cable.
2.
Raise
the vehicle
on a
vehicle hoist.
3.
Drain the
transaxle oil into a suitable container.
4. Remove in
the order shown ln the figure, referring to Removal Nole.

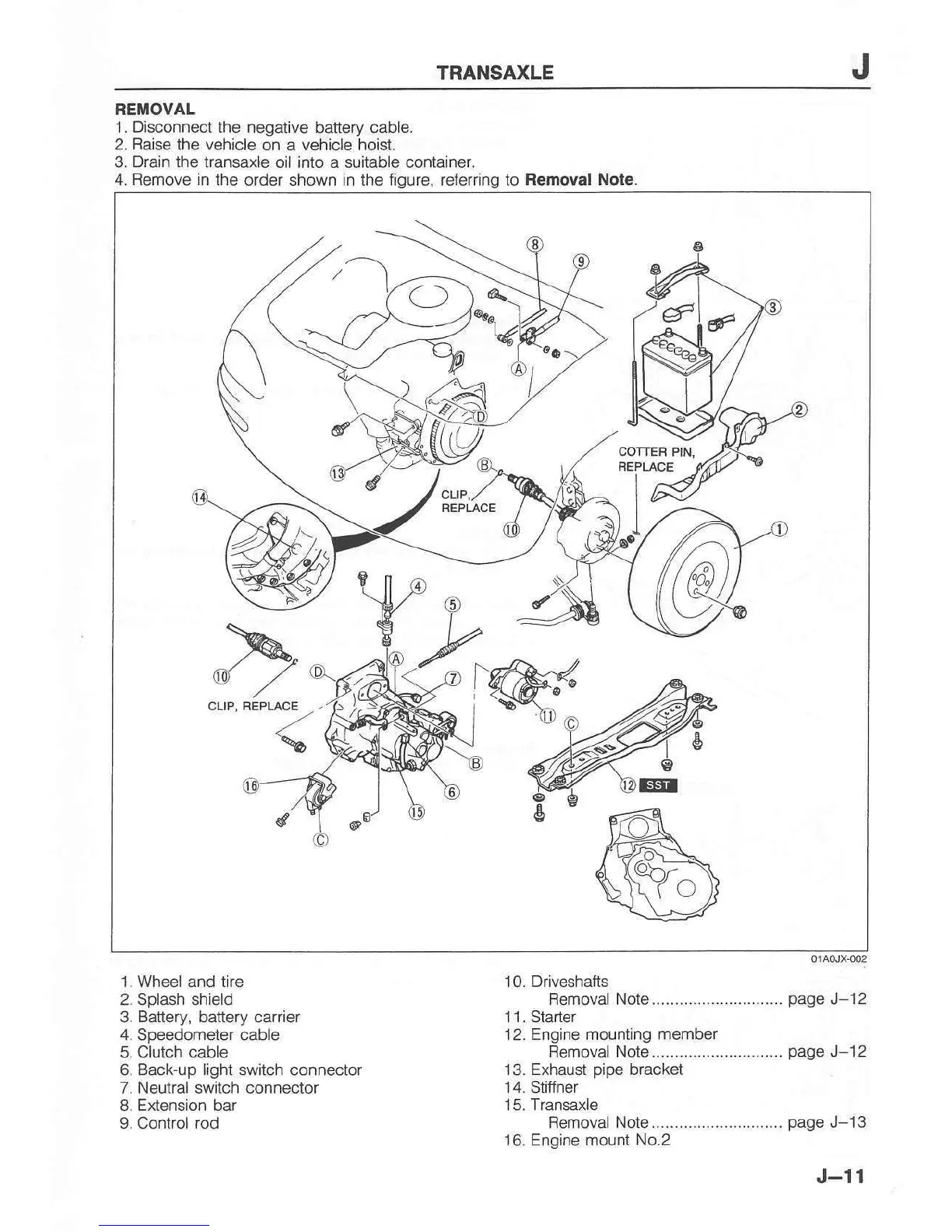

{!e
CLIP,
01A0JX{02
1. Wheel
and
tire 10. Driveshafts
2. Splash shield
Bemoval Note.............................
page
J-12
3.
Battery,
battery carrier 11 . Starter
4. Speedometer cable 12.
Engine mounting member
5. Clutch cable
Bemoval Note.............................
page
J-12
6. Back-up light switch connector
13. Exhaust
pape
bracket
7. Neutral switch connector
'14.
Stifiner
8.
Extension
bar
15. Transaxle
L Control
rod Removal Note.............................
page
J-13
16. Engine mount
No.2
J-1 1
