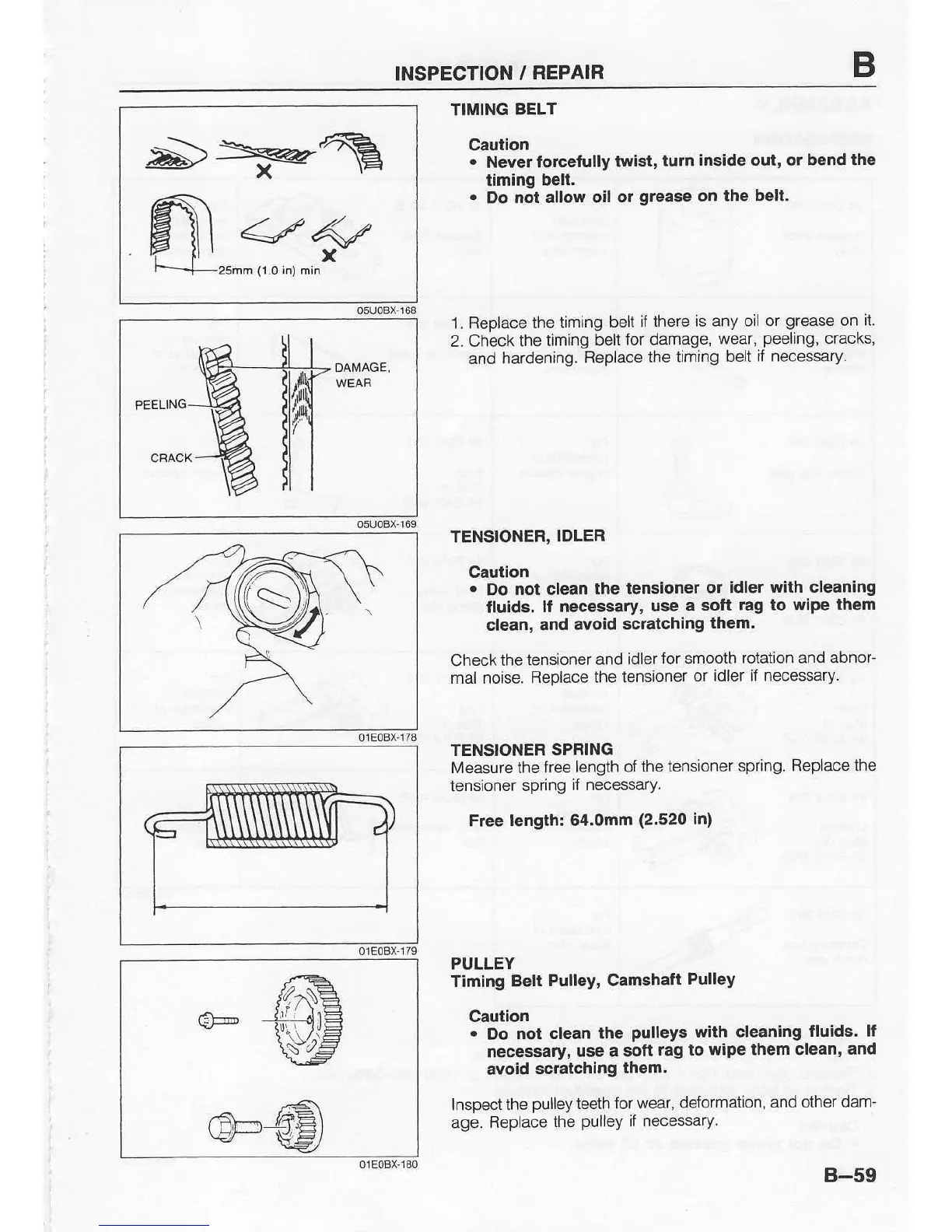

INSPECTION
/
REPAIR
sry6
f,*f^^y
TIMING BELT
Caution
.
Never forcelully
lwist,
turn
inside out, or bend the
timing beh.
.
Do
nol allow oil
or
grease
on the belt,
1. Replace
the timing
belt if there
is any oil
or
grease
on it
2. Check
the timing belt
for damage,
wear,
peeling,
cracks,
and hardening.
Replace
the timing
belt il necessary.
TENSIONER,
IDLER
Caution
.
Do
not clean
the lensioner
or idler
with cleanlng
fluids.
ll necessary,
use a
solt lag to wiPe
them
clean,
and avoid scratching
them.
Check the
tensioner and
idlerfor smooth
rotation and abnor-
mal noise.
Fleplace the tensioner
or
idler il necessary
TENSIONER
SPRING
Measure the lree
length of
the tensioner
spring. Replace the
tensioner
spring
'f necessary.
Free
length: 54.0mm
(2.520
in)
PULLEY
Timing Belt
Pulley, Camshalt
Pulley
Cautlon
.
Do not
clean the
pulleys
with cleaning
lluids' ll
necessary,
use a soft
rag to wipe them clean,
and
avoid
scralching
them.
Inspectthe
pulley
teeth
for wear, deformation,
and other
dam-
age.
Beplace
the
pulley
if necessary.
G
r-'E
T{7\\E
sry
lilll-1LlE
-5*\
reF.-
ZilF\
rsr-
Vg
B-59
