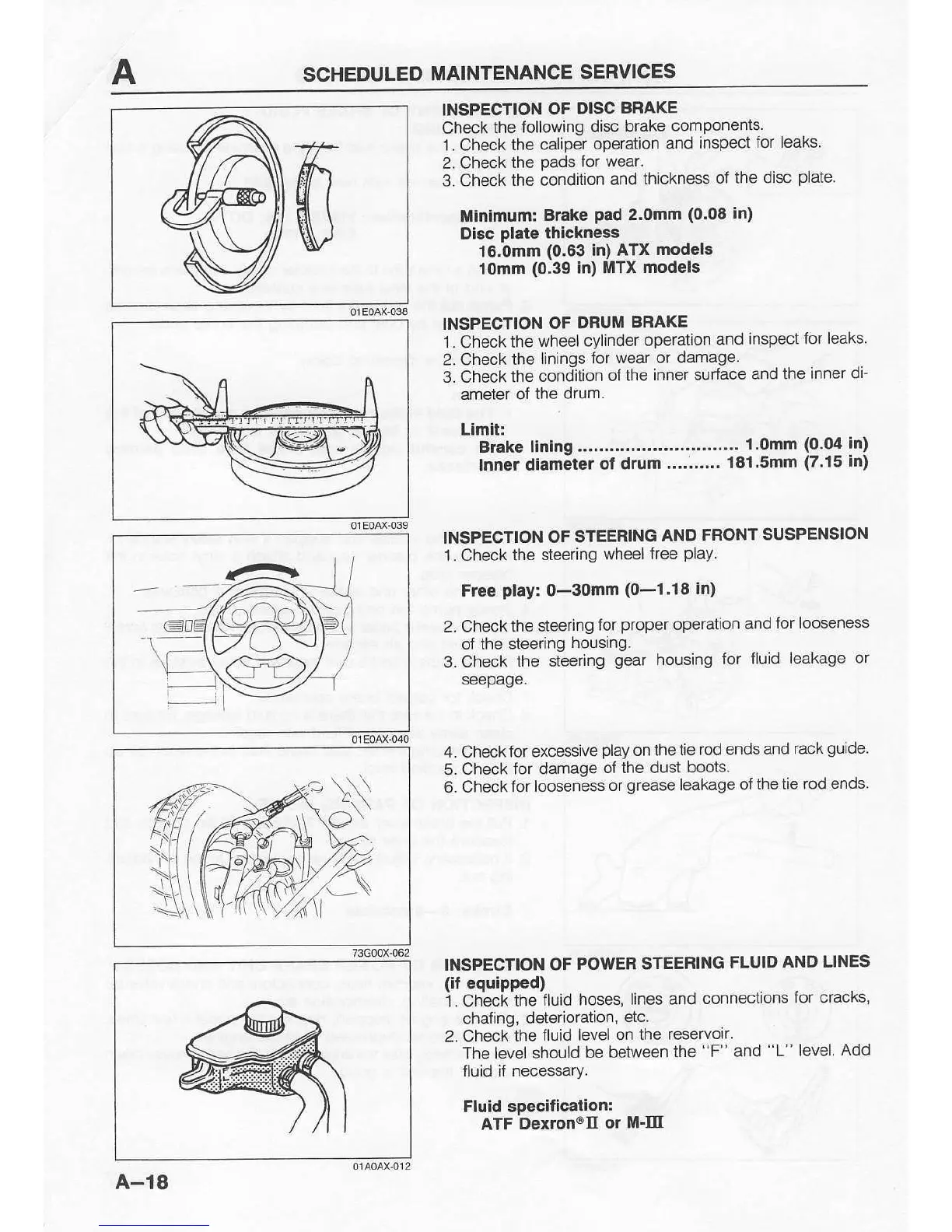

SCHEDULED
i'AINTENANCE
SERVICES
INSPECTION
OF
DISC
BRAKE
Check
the lollowing
disc brake
components.
1. Check
the caliper
operation
and
inspect
for leaks
2. Check
the
Pads
lot wear.
3 Check the condition
and
thickness
ol the disc
plate
Minimum:
Brake
Pad
2.0mm
(0.08 in)
Dlsc
plate
thicknesa
l6.0mm
(0.63
in) ATX
models
lomm
(0.39 in) MTX
mod€ls
INSPECTION
OF
DRUM BBAKE
'1
.
Check
the
wheel cylinder
operation
and
inspect tor
leaks.
2. Check
the
lin'ngs
for wear or damage
3. Check the
condition
of the
inner surface
and the
inner dl-
ameter of
the drum.
Limli:
Brake 1in1n9...........
l.omm
(0.04
in)
lnner
dlamater
of drum
'..'.,....
l81.smm
(7.15
in)
INSPECTION
OF STEERING
AND
FRONT SUSPENSION
1. Check the
steering
wheel
free
play
Free
play:
0-30mm
(0-1.18 in)
2. Checkthe
steering
for
proper
operation
and
for looseness
of the steering
houslng.
3.
Check the
steering
gear
housing
for lluid
leakage or
seepage.
4. Check tor exoessive
play
on the
tie rod ends
and rack
guide
5.
Check for damage
ol the dust
boots.
6.
Checklor
looseness
or
grease
leakage
ofthetie rod
ends
INSPECTION
OF
POWER STEERING
FLUID
AND LINES
(if
equipped)
i- Check the
fluid hoses,
lines and
connections
lor cracks,
chaf
ing, deterioration,
etc.
2. Check
the
fluid level on
the reservolr.
The level should
be between
the
"F"
and
"L"
level
Add
fluid
if necessary.
Fluld soecificalion:
ATF
Dexronoll
or M-m
A-18
