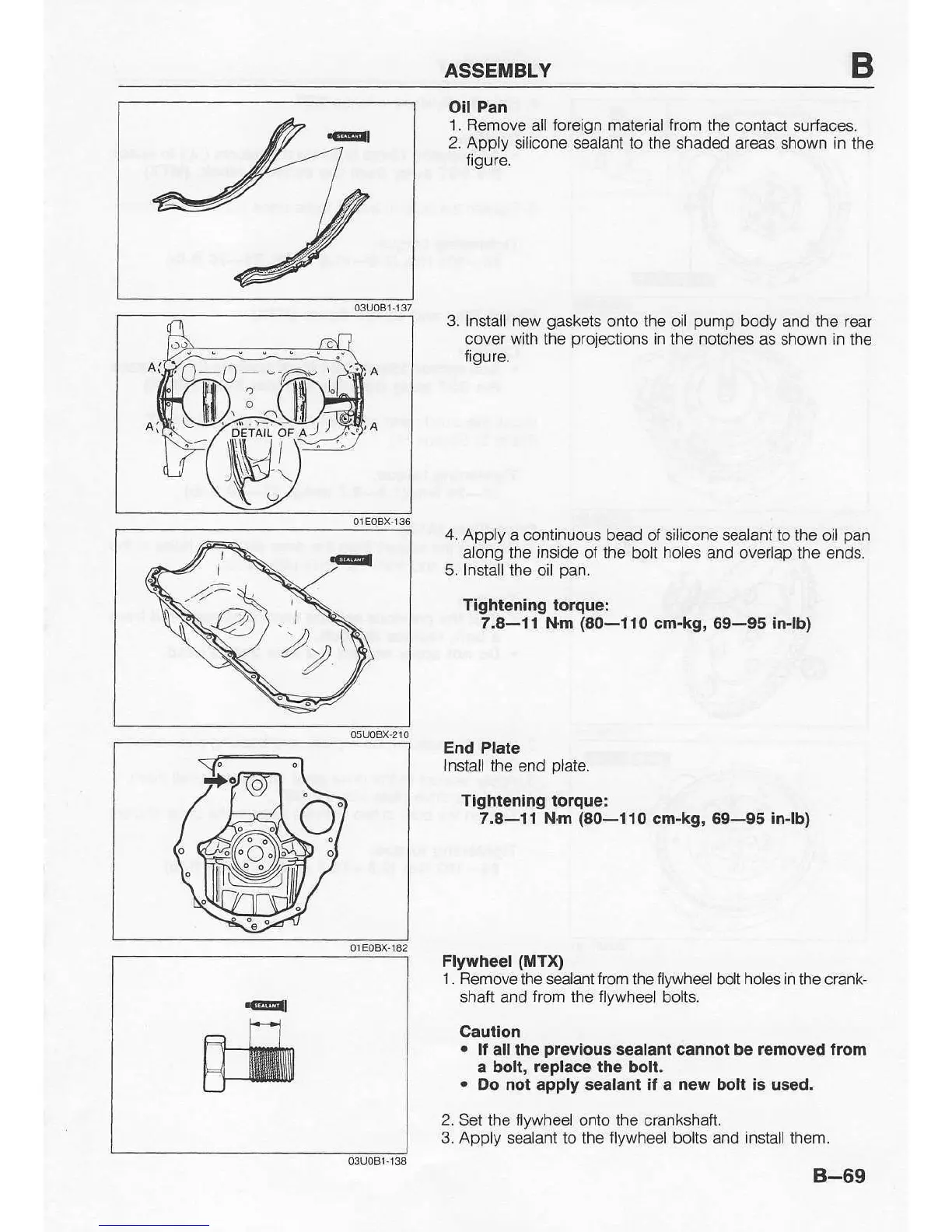

Mazda 121 - Oil Pan; End Plate; Flywheel (MTX)

ASSEi'BLY
Oil Pan
1. Remove all foreign material from the
contact surfaces.
2. Apply silicone sealant to the
shaded areas shown in the
figure.
l
-/-=
{. I
Qr)
3. Install new
gaskets
onto the oil
pump
body and the rear
cover with the
proiections
in the notches
as shown
in
ihe
figure.
4. Apply
a continuous bead of silicone sealant to the
oil
pan
along the
inside
of lhe bolt holes and overlap the ends.
5. Install the oil
pan.
Tightening torque:
7.8-ti N.m
(80-110
cm-kg, 69-95
in-lb)
End Plale
Install the end
plate.
Tightening torque:
7.8-ll N.m
(80-ll0
sm-kg,69-95
inlb)
Flywheel
(MTX)
1- Remove
the sealant
from
the
tlwheel
bolt
holes
in the crank-
shaft and
trom
the
flywheel
bolts.
Cautlon
.
lf all the
previous
sealant cannot be removed lrom
a bolt,
replace
the bolt,
.
Do not apply sealant if a new bolt is used.
2. Set the flywheel onlo the
crankshaft.
3. Apply
sealant to the
flywheel
bolts and
install
them.
@
BM
B-69
