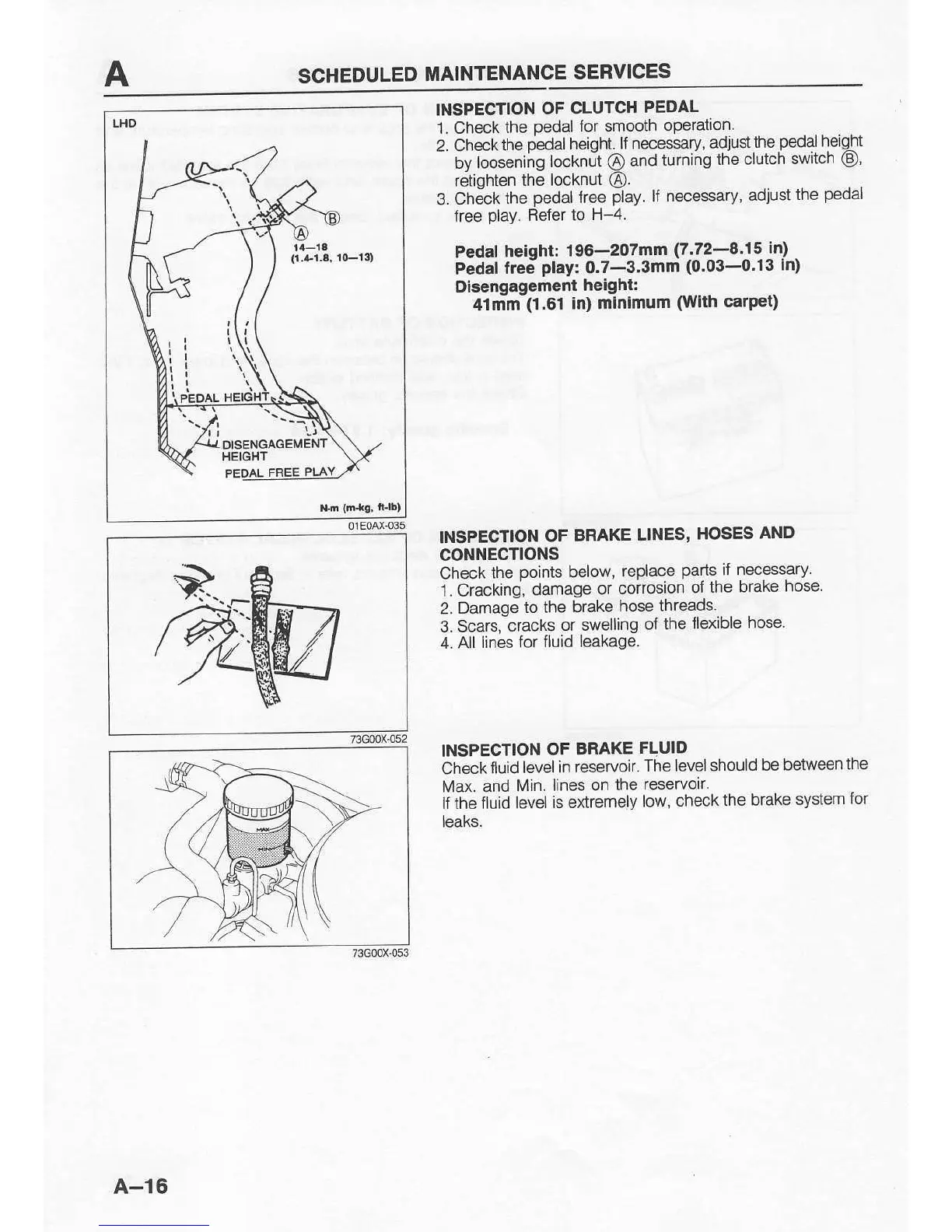

Mazda 121 - Inspection of Clutch Pedal; Inspection of Brake Lines, Hoses and Connections; Inspection of Brake Fluid

SCHEDULED
MATNTENANCE
SERVICES
INSPECTION
OF CLUTCH
PEDAL
'1.
Check
the
pedal
lor
smooth operation
2. Checkthe
pedal
height.
lf necessary'
adjudthe
pedalheight
by
loosening
locknut
@
and
turning
the clutch
swltch
(q).
retighlen
the locknut
(4).
3.
Ch;ck
the
pedal
free
play.
lf
necessary,
adiust
the
pedal
free
play.
Refer to
H-4.
Pedal
heiqht:
196-207mm
(7.72-8.15 in)
Pedal
freC
play:
0.7-3.3mm
(0.03-0.13 In)
Diaenqagement
height:
4lmm
(1.61
in)
mlnimum
(With carPet)
INSPECTION
OF
BFAKE
LINES,
HOSES
AND
CONNECTIONS
Check
the
points
below,
replace
parts
if
necessary.
1. Crackind,
damage
or
corrosion
ol
the brake
hose
2.
Damaoe
to the brake
hose threads.
3. Scars.lracks
or swelling
of the
flexible hose.
4. All
lines for
fluid
leakage.
INSPECTION
OF
BRAKE
FLUID
Checklluid
level
in reservoir.
The
levelshould
be between
the
lvax.
and Min.
lines on
the
reservoir.
lf the fluid
level
is extremelv
low,
check
the brake
system
for
€aKs.
A-16
