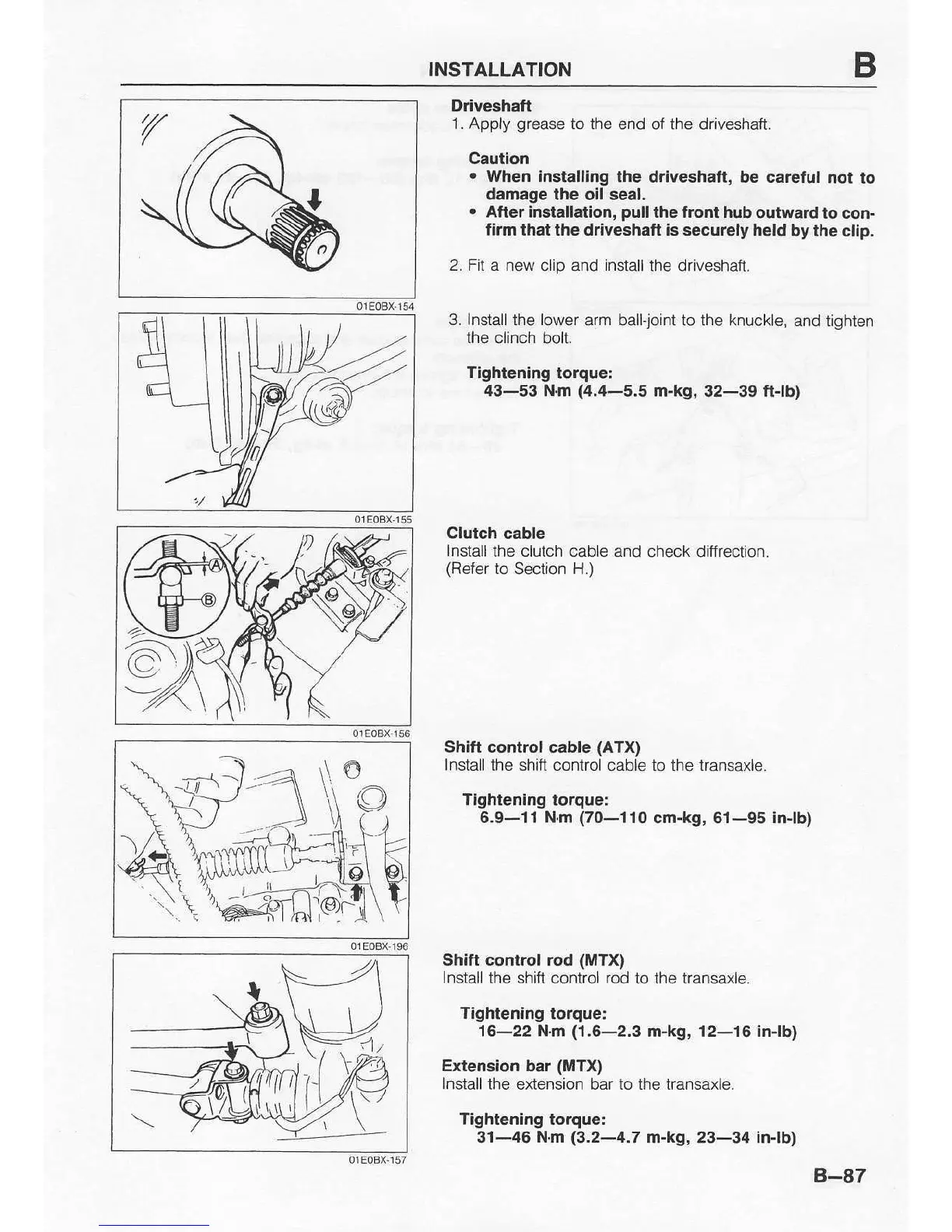

INSTALLATION
Drlveshaft
1. Apply
grease
to the
end ot the driveshaft.
Caulion
.
When installing
the drlveshaft, be caretul
not to
damage lhe oil seal.
.
After Installation,
pull
the front hub
oulward to
con-
lirm that the driveshalt is
sequrely held bythe
clip.
2 Fil
a new clip and
install
the driveshaft.
3. Install the lower arm ball-joint 1o
the knuckle,
and tighten
the
clinch bolt.
Tightening
torque:
43-53 N.m
(4.4-5.5
m-kg,
32-39
fl-lb)
Clutch cable
lnstall
the clutch cable and
check
diffrection.
(Refer
to Section H.)
Shlft control cable
(ATx)
Install the shitt control
cable to the transaxle.
Tightening
torque:
6.9-11 N m
(70-110
qm.kg,
6l-95
inlb)
Shift control rod
(MTX)
Install the shift control rod
to the
transaxle.
Tightening
torque:
'16-22
Nm
(1.6-2.3
m-kg, 12-16 in-lb)
Extension
bar
(MTX)
Install
the extension bar to the transaxle.
Tightening lorque:
3l-46
N.m
(3.2-4.7
m-kg, 23-34 in-lb)
