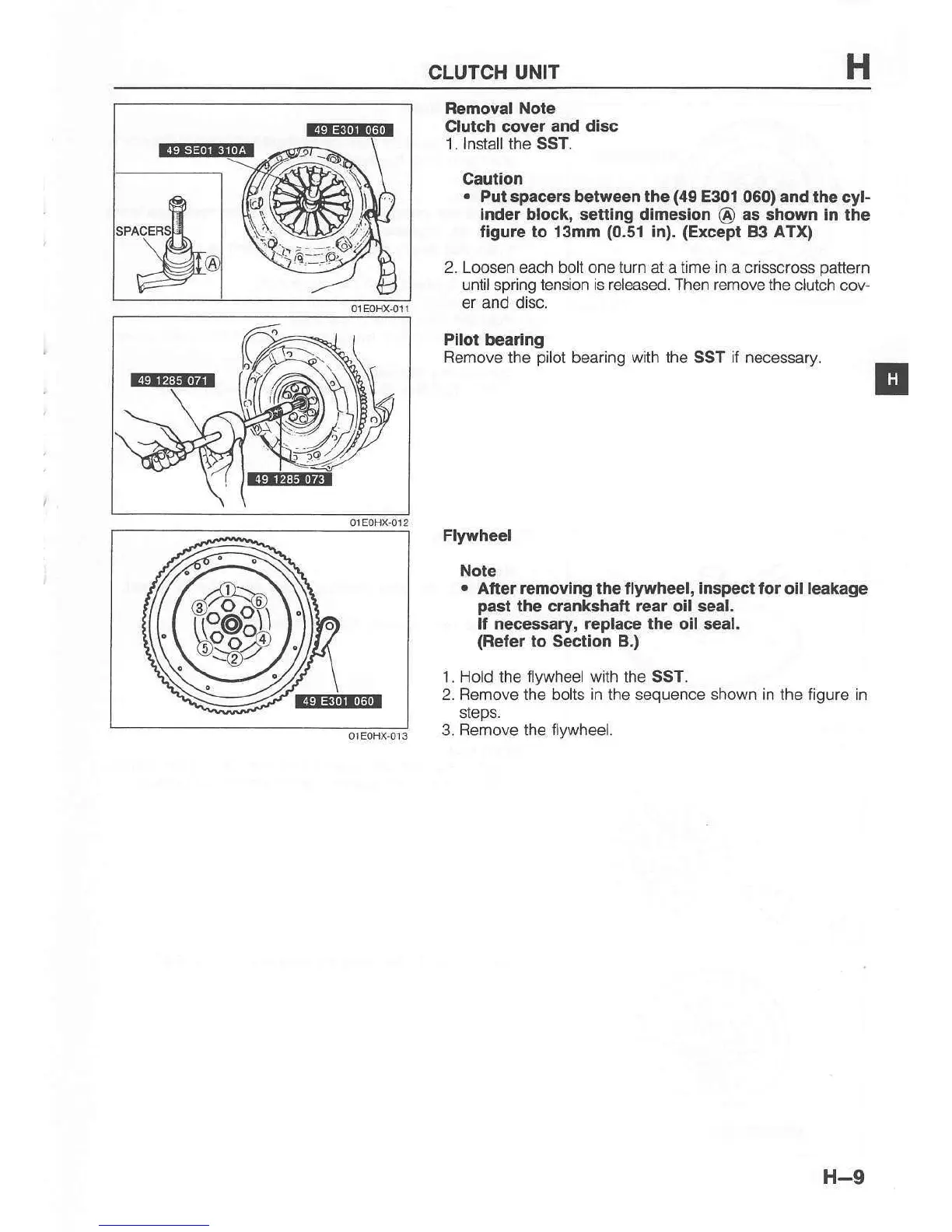

Mazda 121 - Clutch Cover and Disc; Pilot Bearing; Flywheel

CLUTCH
UNIT
Rgmoval Note
Outch cover and disc
1. lnstall the ssT.
Caution
.
Put 8pacs6 between the
(49
E30l
060)andlhecyl-
inder block, setling dimeaion
@
as
shown in the
figure io l3mm
(0.51
in).
(Except
83 ATX)
2. Loosen
each
bolt one turn
at a time
in a
crisscross Dattern
until
spring
tension is released. Then remove the
clutch cov-
er and disc.
Pilot
bearing
Remove the
pilot
bearing with the SST
if
necessary.
Flywheel
Note
.
After removlng the lly'rvheel, Inspeci lor
oil
leakage
pasl
the crankshatt
rear
oil seal,
lf ngcess€ry,
replace the
oil seal.
(Rete.
lo Seclion
B.)
1. Hold the
flywheel
with the SST.
2. Remove the bolts in the sequence shown in the figure in
steos.
3. Remove the
tlywheel.
H-9
