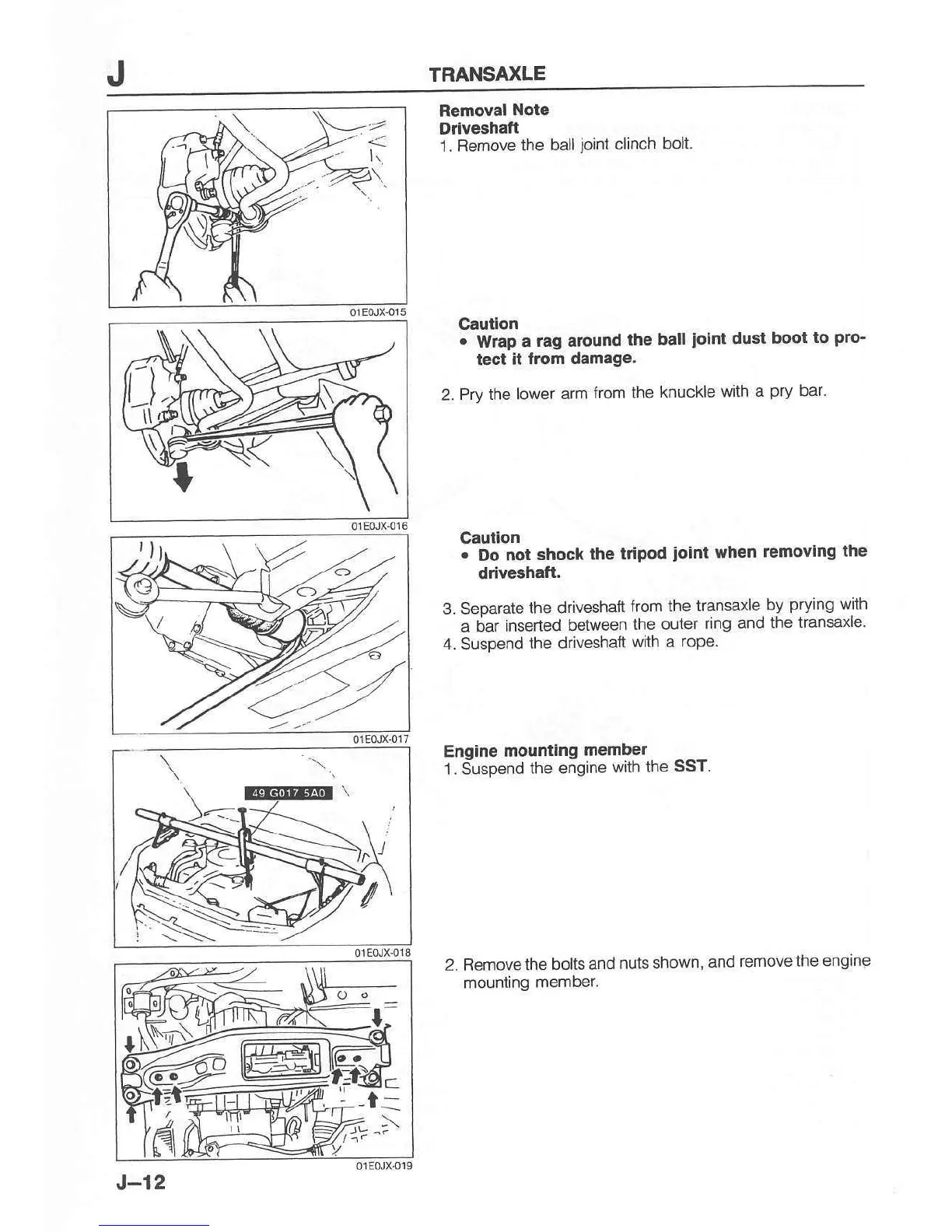

Mazda 121 - Engine Mounting Member

J
TRANSAXLE
-1.
Removd
Note
DrlvEhaft
1. Remove
the
ball
joint
clinch
bolt.
Caution
.
Wrap a
rag around
the
ball
ioint
dusi
boot
to
pro'
lect
h
trom damage.
2.
Pry the lower
arm
from the
knuckle
with a
pry
bar.
Cautlon
.
Do not
shock
the tripod
ioint
when
removing
the
dtiveshaft.
3. Seoarate
the driveshaft
from the transaxle
by
prying
wilh
a bar inserted
between
lhe outer
nng and the
transaxle.
4. Suspend
the driveshaft
with a
rope.
Engine
mountinE
member
1 . Suspend
the engine
with the
SST
2. Remove
the
bolts and
nuts shown,
and
remove
the englne
mounting
member.
J-12
