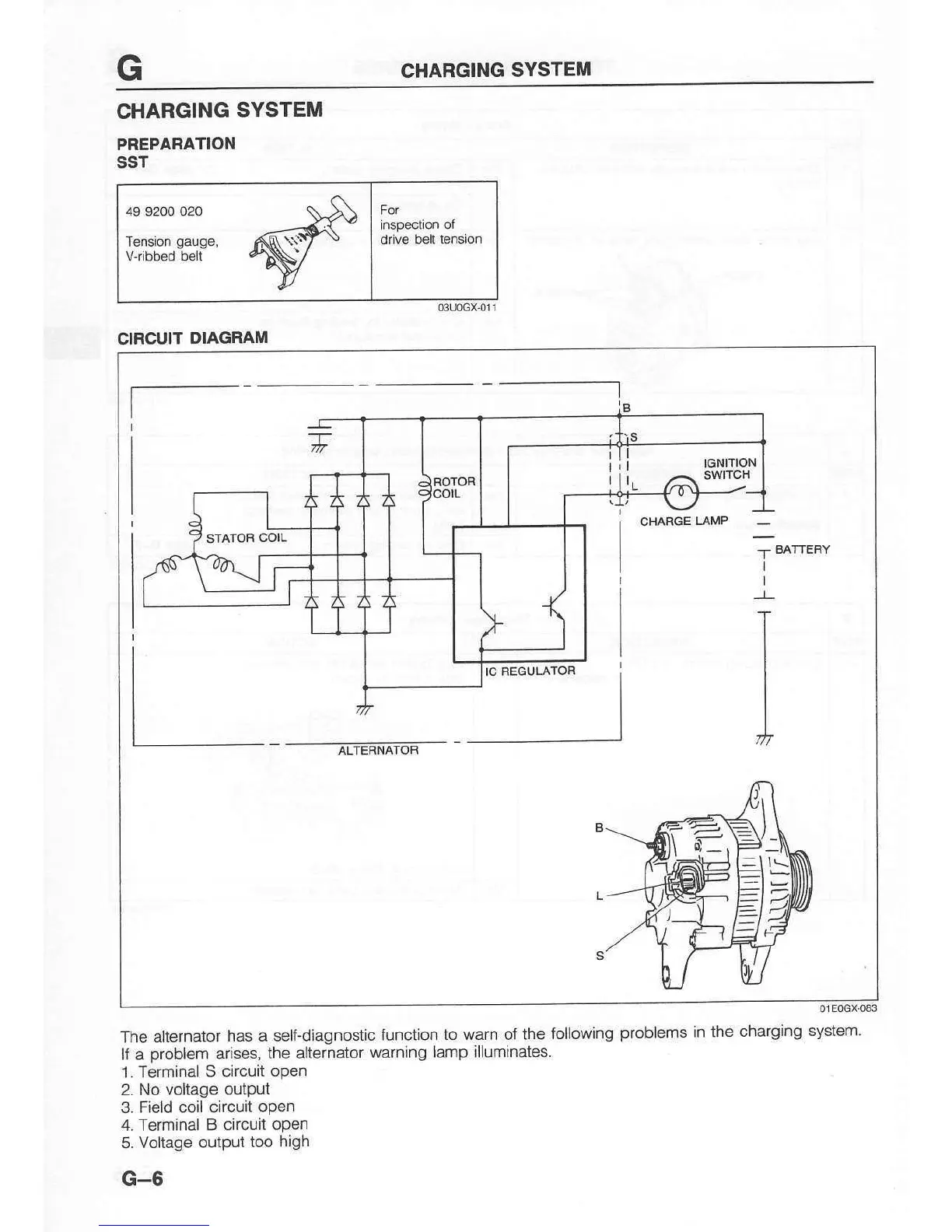

Mazda 121 - Charging System Circuit Diagram

CHARGING
SYSTEM
49 9200 020
Tension
gauge,
CHARGING
SYSTEM
PREPARATION
ssT
The alternator
has a self-diagnostic
lunction
to warn of the
following
problems in the
charging
system-
lf a
problem
arises,
the alternator
warning
lamp alluminates
1. Terminal
S circuit
open
2. No voltage
output
3. Field coil circuit
open
4. Terminal
B circuit open
5. Voltage output
too
high
G-6
CINCUIT
DIAGRAM
I
I
I
CHAFTGE
LAMP
T
BATIEFY
