Mazda 121 - Steel Ball, Spacer

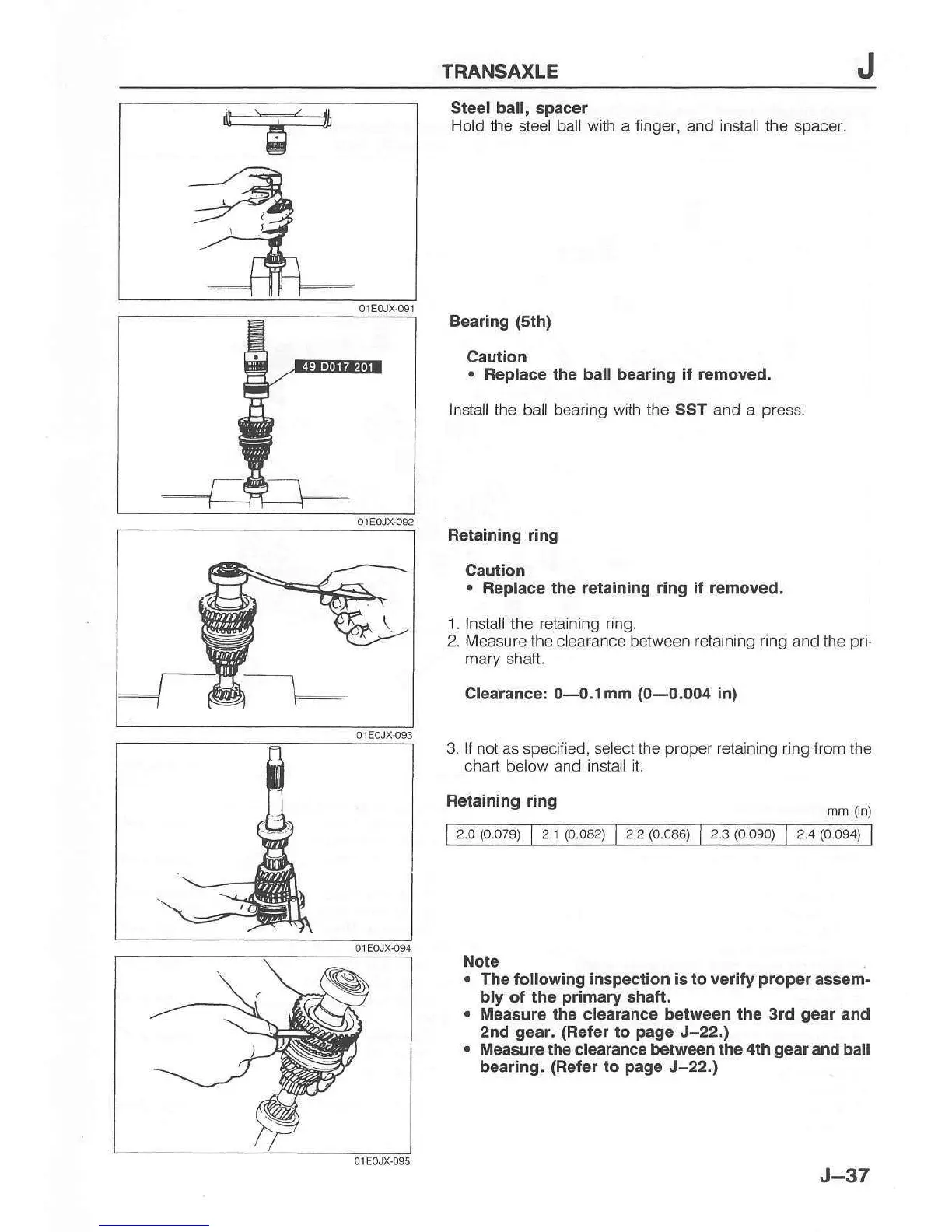

TRANSAXLE
J
Steel ball, spacer
Hold the steel ball with a finger, and install the spacer.
Bearing
(sth)
C€ution
.
Replace the ball
Install the ball bearing
bearing if removed,
with the SST and a
press.
2.0
(0.079)
I
2
r
(0082
|
22
(0.086)
|
2.3
(0.090)
|
2.!
(0
094)
Retaining ring
Caution
.
Replace the relaining
ring
it
removed,
1. lnstall the retaining ring.
2. Measure the clearance between retaining ring and the
pri-
mary shatt.
Clearance: 0-0.1mm
(0-0,004
in)
3. lf not
as specified, select
the
proper
retaining ring from
the
chart below and
install it.
Fetaining ring
mm
(in)
Note
.
The lollowing Inspectlon is to verity
proper
assem.
bly
ol
lhe
primary
shatt.
.
ileasure the clearance between the 3rd
gear
and
2nd
geal. (Reter
to
page
J-22.)
.
Measure the clearance between the 4th
gear
and ball
bearing.
(Refer
to
page
J-22.)
J-37
