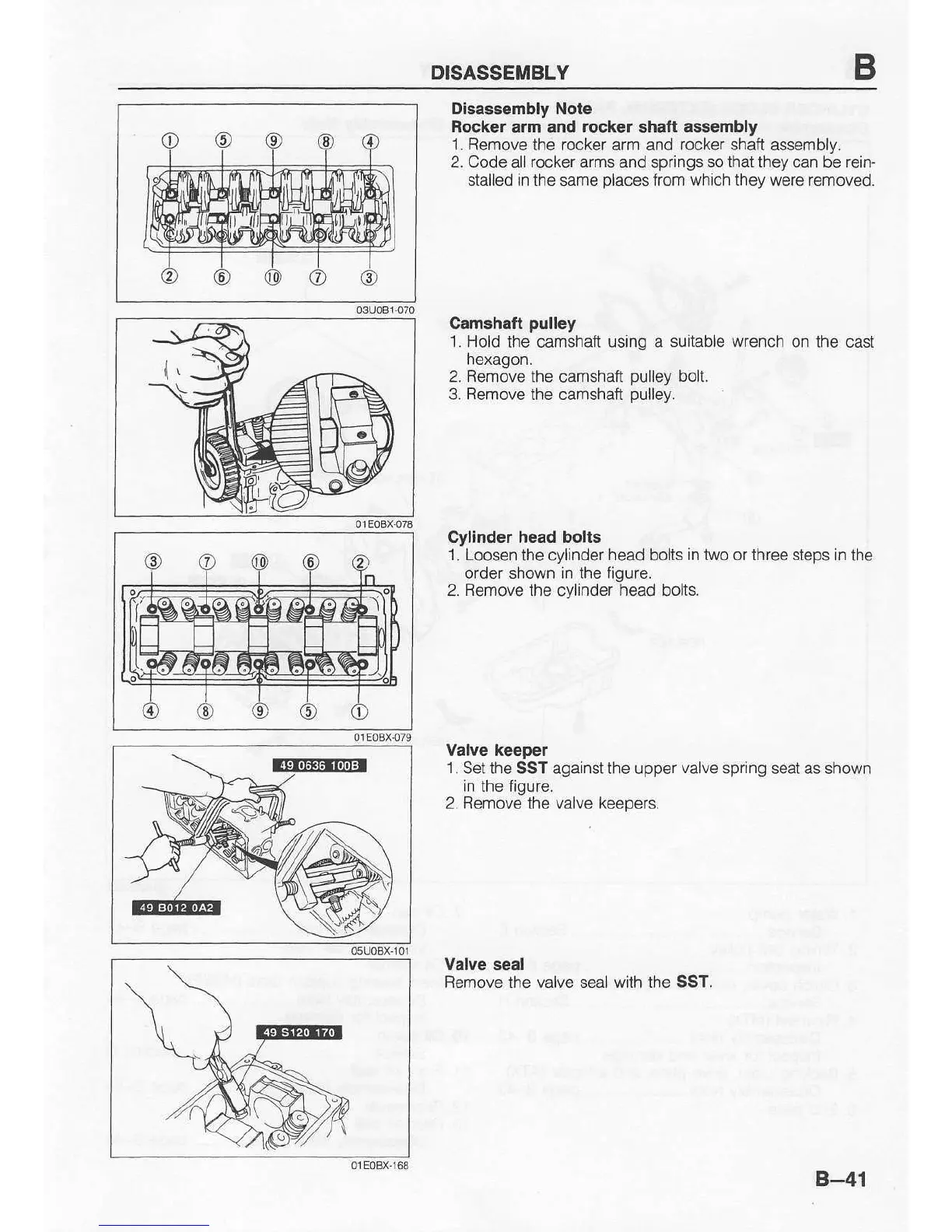

Mazda 121 - Rocker Arm and Rocker Shaft Assembly; Camshaft Pulley; Valve Keeper; Valve Seal

DISASSEMBLY
Dlsassembly Note
Rocker arm and
rocker
shaft
assembly
1. Remove the rocker arm
and
rocker shaft assembly.
2. Code allrocker arms and springs
sothatthey
can be
rein"
stalled in
the same
places
from which they were removed.
Camshafi
pulley
1.
Hold the camshaft using a suitable
wrench
on the casl
hexaoon.
2.
Remdve
the camshaft
pulley
bolt.
3. Remove the camshaft oullev.
Cyllnder head bolts
1. Loosen
the cylinder
head
bolts
in two orthree sleps in
the
order shown an the figure.
2.
Remove
the cylinder
head
bolts.
Valve keeper
1.
Set the SST against the upper
valve
spring seat as shown
in the figure.
2.
Flemove
the valve
keepers.
Valve seal
Remove
lhe
valve
seal
with the SST
B-41
