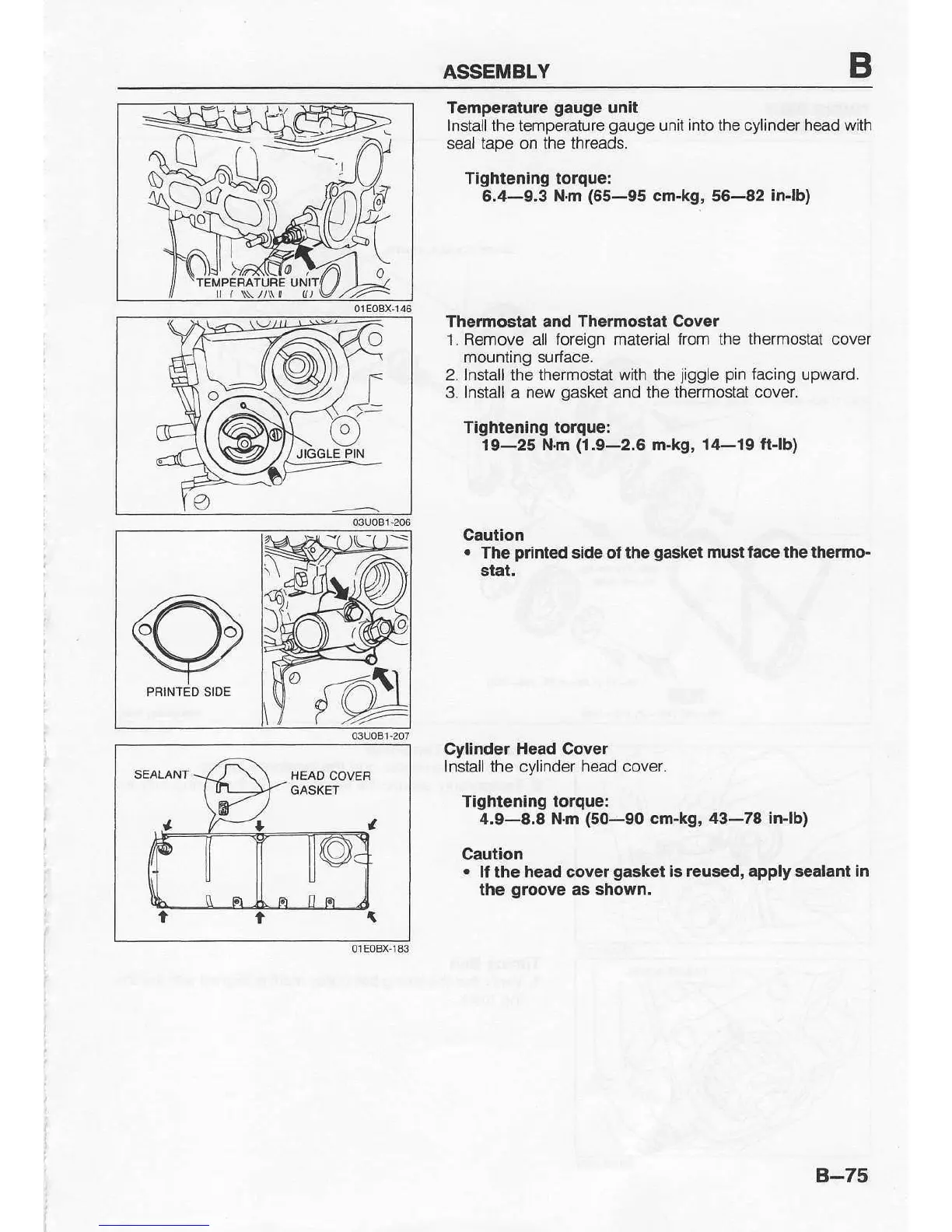

Mazda 121 - Temperature Gauge Unit; Thermostat and Thermostat Cover; Cylinder Head Cover

ASSEMBLY
OlEOBXJS3
Temperature
gauge
unit
Installthe temperature
gauge
unit into the cylinder head with
seal tape on the threads.
Tlghtenlng lolque:
6.4-9.3
Nm
(65-95
cm-kg, 56-82
in-lb)
Thermostat and
Thermostal Cover
1. Remove all foreign material
lrom the thermostat cover
mounting surface.
2. Install the thermostat with the
jiggle
pin
facing
upward.
3.
Install
a
new
gasket
and the thermostat cover.
Tighlening torque:
l9-25 N{n
(1.9-2.6
m-kg, 14-19
ft-lb)
Caution
.
Thg
pdnted
side ol the
gasket
must face lhe
thermg-
stat.
C:lrlinder
Head Cover
lnstall the cylinder
head cover.
Tightenlng lorque:
4.9-8.8 N.m
(50-90
cm-kg,
43-78 in-lb)
Caution
.
lf
the
head
cover
gasket
is
reused, apply
sealant
in
the
groove
as shown.
;nY\v
w"ffi
PBINT€O
SIOE
a
_-/-$,1
?\+
B-75
