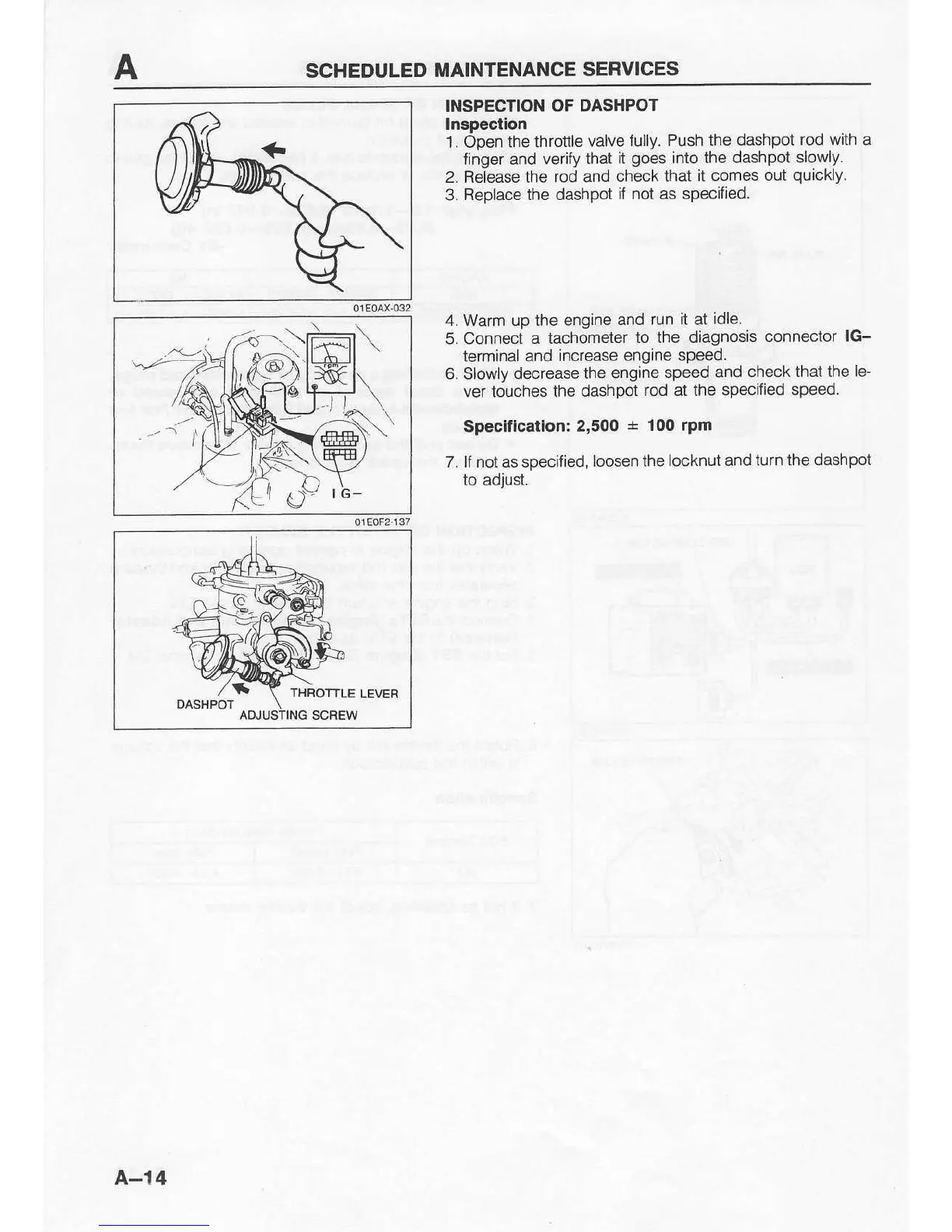

Mazda 121 - Inspection of Dashpot

SCHEDULED
I'AINTENANCE
SERVICES
INSPECTION
OF DASHPOT
Inapection
1. ODen the throttle
valve
lully. Push the
dashpot rod with a
finger and verity
that it
goes
into the dashpot
slowly.
2. Release the rod and
check that
it comes
out
quickly
3.
Replace the dashpot
if not as specified.
4. Warm up the engine
and run
it
at
idle.
5. Connect
a tachometer
to the diagnosis
connector
lG-
terminal and
increase engine
speed.
6. Slowly decrease
the engine
speed and
check that the
le-
ver touches
the dashpot
rod at the specified
speed.
Specitication:
2,500
+
100 rpm
7. if not
as
specilied,
loosen the locknut
and turn the
dashpot
to adjust.
ADJUSTING
SCFEW
