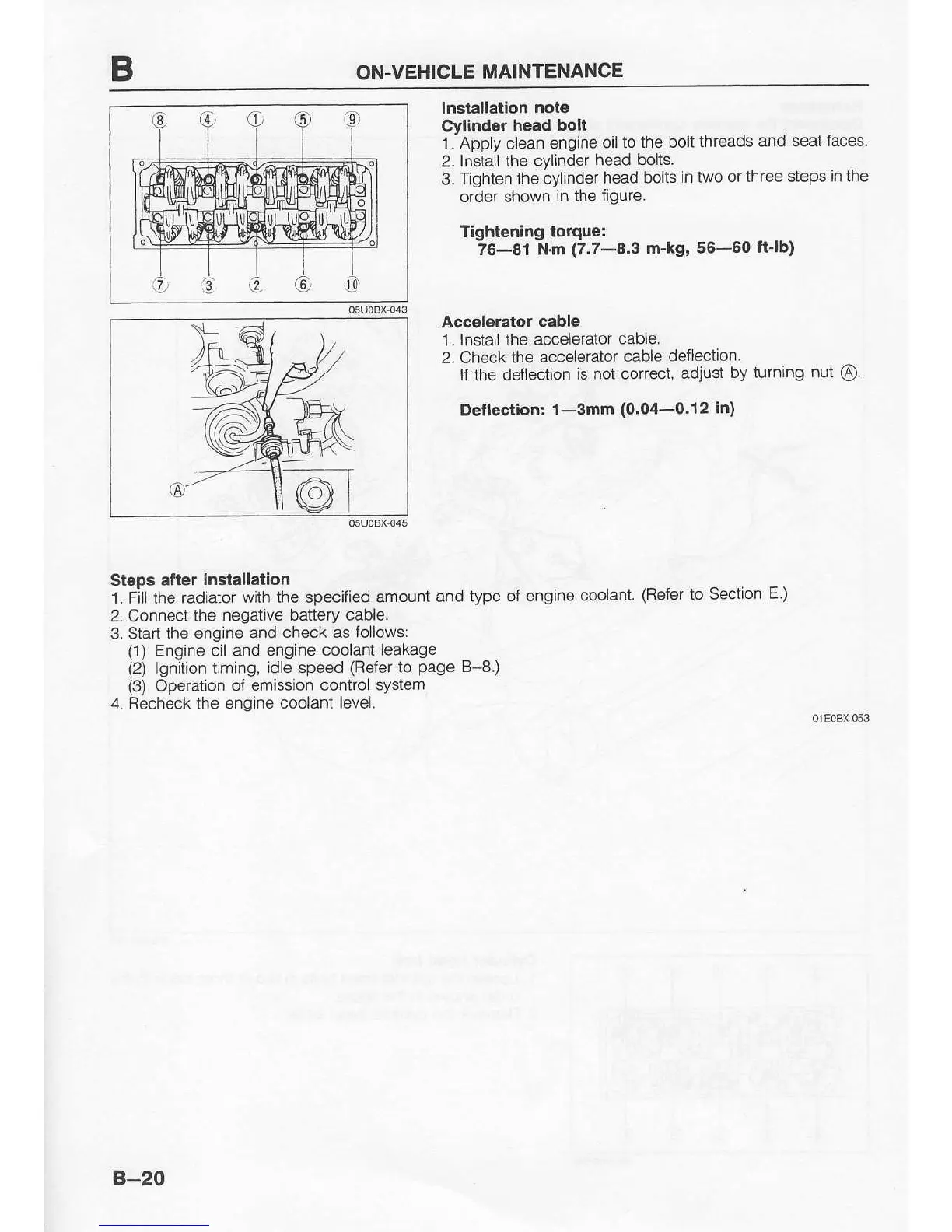

Mazda 121 - Page 58

ON-VEHICLE
MAINTENANCE
lnstallation
note
Cvlinder
head
bolt
1. Apply clean engine
oil to
the bolt
threads and seat
faces
2.
Install the cylinder
head bolts.
3.
Tighten the cylinder
head bolts
in two
or three steps in the
order shown
in the
figure.
Tiohtenlnq toroue:
is-gr
-N.n
1z.z-a.l
m-rg, s6-60
ft-lb)
Acceleralor cable
1.
Install the accelerator
cable.
2. Check the
accelerator
cable deflectior
lf the deflection
is not correct,
adjust
by turning
nut
@.
Delleciion:
1-3mm
(0,04-0'12
in)
Steps alter
installation
1. Fill the radiator
with the specified amount
and type of
engine coolant
(Refer
to Section
E.)
2.
Connecl
the negative
battery cable.
3. Start
the engine
and check as
tollows:
(1)
Engine oil and engine
coolant leakage
(2)
lgnition timing,
idle speed
(Refer
to
page
B-8.)
(3)
Operation of
emission control system
4.
Recheck the engine
coolant level.
B-20
