ON.VEHICLE

MAINTENANCE

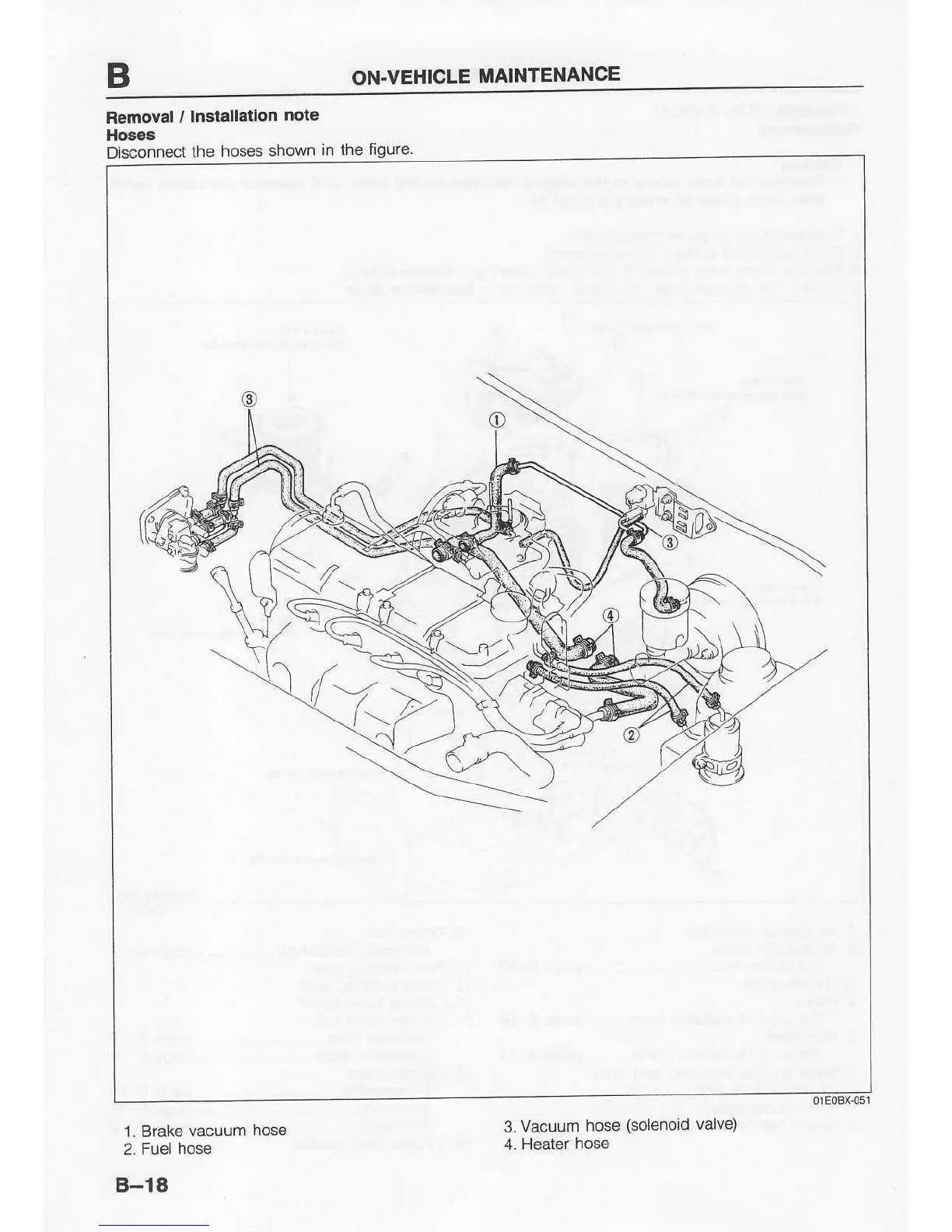

Removal

/ Installation

ngte

Hoses

Disconnect

the

hoses

shown

in the

figure.

'1.

Brake

vacuum

hose

2. Fuel

hose

B-18

Vacuum

hose

(solenoid valve)

Heater

hose
