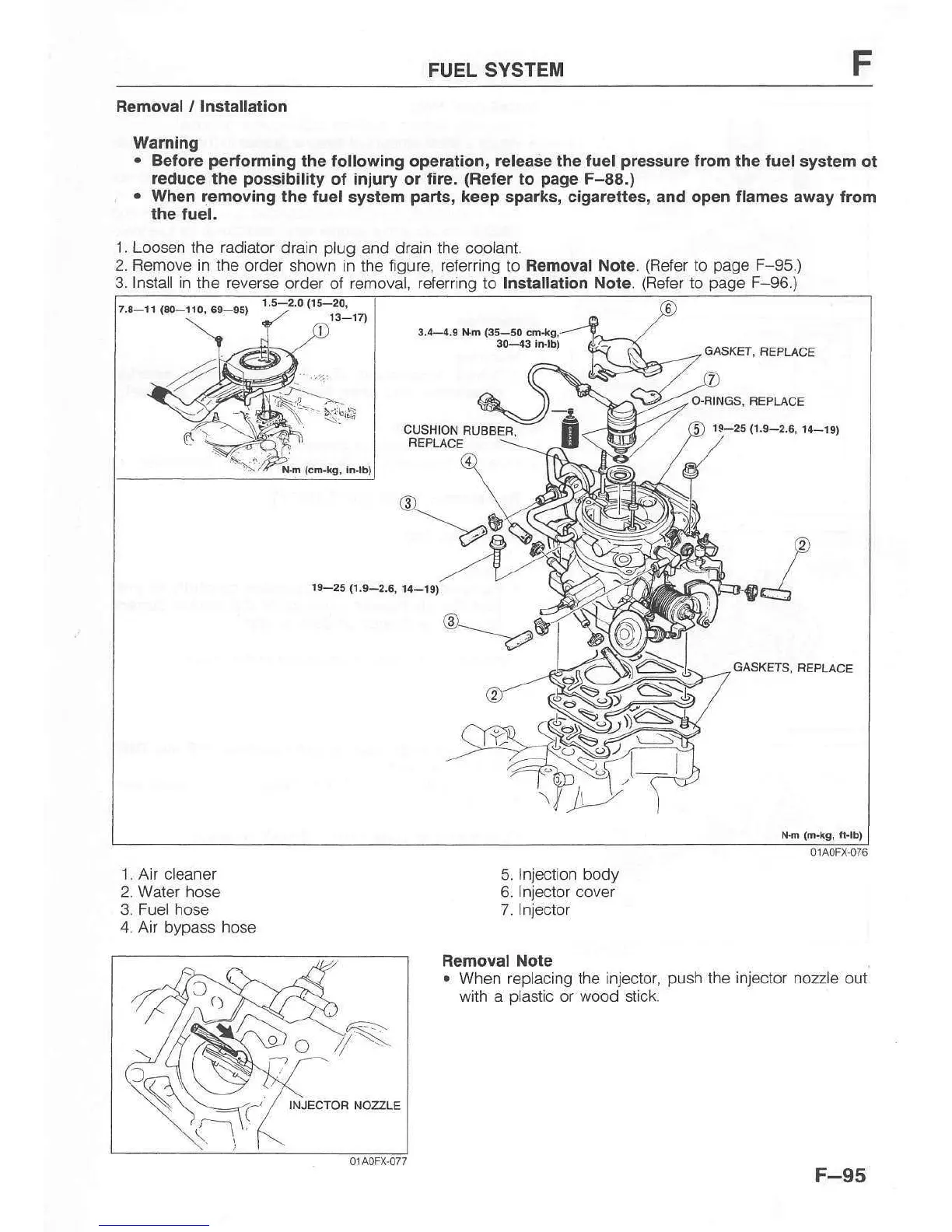

FUEL SYSTEM
Removal / lnstallation
Warning
.
Betore
performing
the following
operalion,
relgase the luel
pressure
lrom the tuel
system ot
reduqe the
possibility
of injury or tire,
(Reter
to
page
F-88.)
.
When
removing the fuel
syslem
parts,
keep sparks, cigarettes, and open tlames away trom
the tuel.
1. Loosen the radiator
drain
plug
and drain the coolant.
2. Remove in
the order shown in the figure, referring to Removal Note.
(Refer
10
page
F-95-)
3.
Install in
the
reverse
order
ot
removal, referring to Installation Note.
(Refer
to
page
F-96.)
7,3-11
(30-110,
69-9s)
GASKET,
SEPLAC€
CIFINGS, FIEPLACE
CUSHION
RUBBEF,
rQ-25
O,e-2.6,
r.-t9)
ad
-e
re-25
0.e-2.6,
r.-19)
GASKETS.
REPLACE
1. Air cleaner
2. Water hose
3. Fuel hose
4.
Air
bypass
hose
5. Injecuon body
6.
lnjector
cover
7. lnjector
Removd Note
.
When replacing the injector,
push
the
injector nozzle
out
wjth a
plastic
or wood stick.
F-95
