TRANSAXLE J

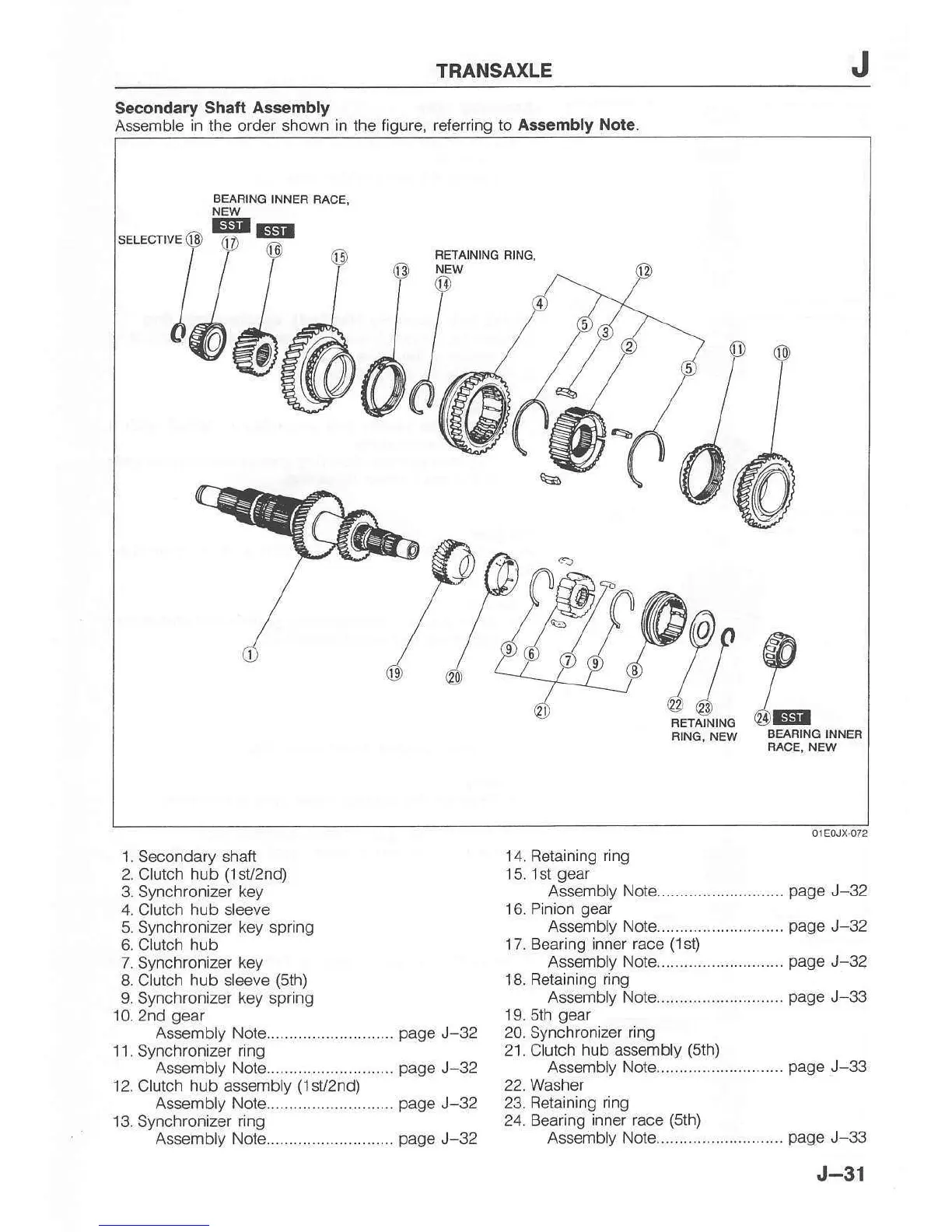

secondary Shaft Assembly
Assemble in the order shown
in
the
figure, reierring to Assembly
Note.
'1-
Secondary
shaft
2. Clutch
hub
(1sv2nd)
3- Synchronizer
key
4. Clutch hub sleeve
5. Synchronizer key spring
6. Clutch hub
7.
Synchronizer
key
8. Clutch
hub
sleeve
(5th)
9. Synchronizer
key
spring
10. 2nd
gear
Assembly
Note............................
page
J-32
11. Synchronizer ring
Assembly Note............................
page
J-32
12. Clutch
hub
assembly
(1sl2nd)
Assembly Note............................
page
J-32
13. Synchronizer ring
Assembly Note............................
page
J-32
14. Relaining
ring
15. 1st
gear
Assembly
Note............................
page
J-32
16. Pinion
gear
Assembly
Note............................
page
J-32
17. Bearing inner race
(1st)
Assembly Note...............
.....
page
J-32
18. Retaining
ring
Assembly
Note............................
page
J-33
19.5th
gear
20. Synchronizer
ring
21. Clutch hub assembly
(sth)
Assembly N ote........................
-.. -
page
J-33
22. Washer
23. Retaining ring
24. Bearing
inner race
(sth)
Assembly
Note............................
page
J-33
BEAFINQ
INNEF RACE,
YI
RETAINING
FIING, NEW
@
@E
AEAFING INNER
J-31
