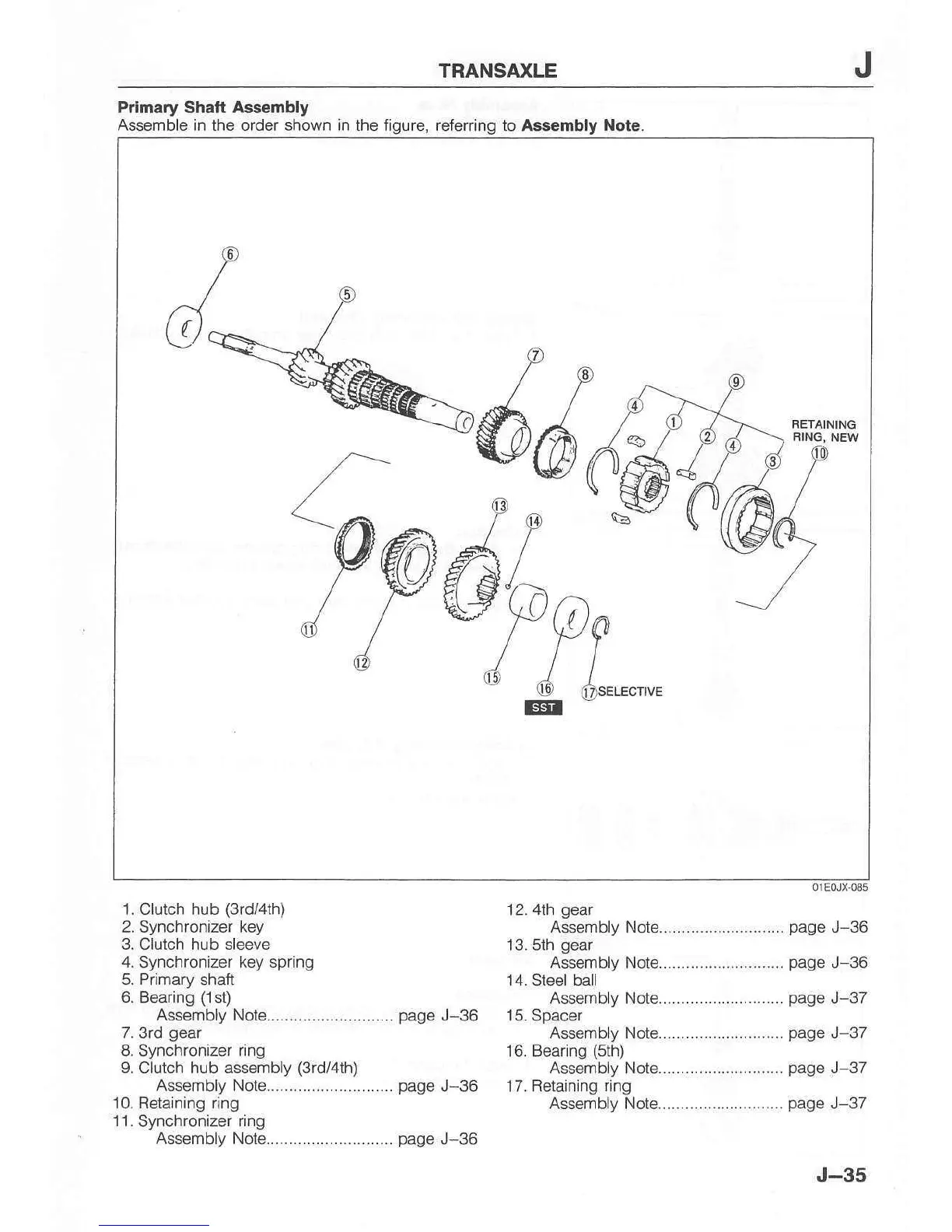

TRANSAXLE J
Prlmary
Shaft
Assembly
As.semble in
the
order shown in
the
figure, referring
to Aasembly
Note.
RETAINING
FIN6,
NEW
1.
Clutch
hub
(3rd/4th)
2. Synchronizer key
3.
Clutch
hub sleeve
4.
Synchronizer
key
spring
5.
Primary
shaft
6. Bearing
('1st)
Assembly Note............................
page
J-36
7. 3rd
gear
8. Synchronizer ring
9. Clutch hub assembly
(3rd/4th)
Assembly Note............................
page
J-36
10. Retaining ring
11.
Synchronizer ring
Assembly Nole............................
page
J-36
12. 4th
gear
Assembly Note............................
page
J-36
13. sth
gear
Assembly Note............................
page
J-36
'14.
Sleel ball
Assembly Note............................
page
J-37
15.
Spacer
Assembly Note............................
page
J-37
16. Bearing
(sth)
Assembly Note............................
page
J-37
17.
Retaining ring
Assembly Note............................
page
J-37
