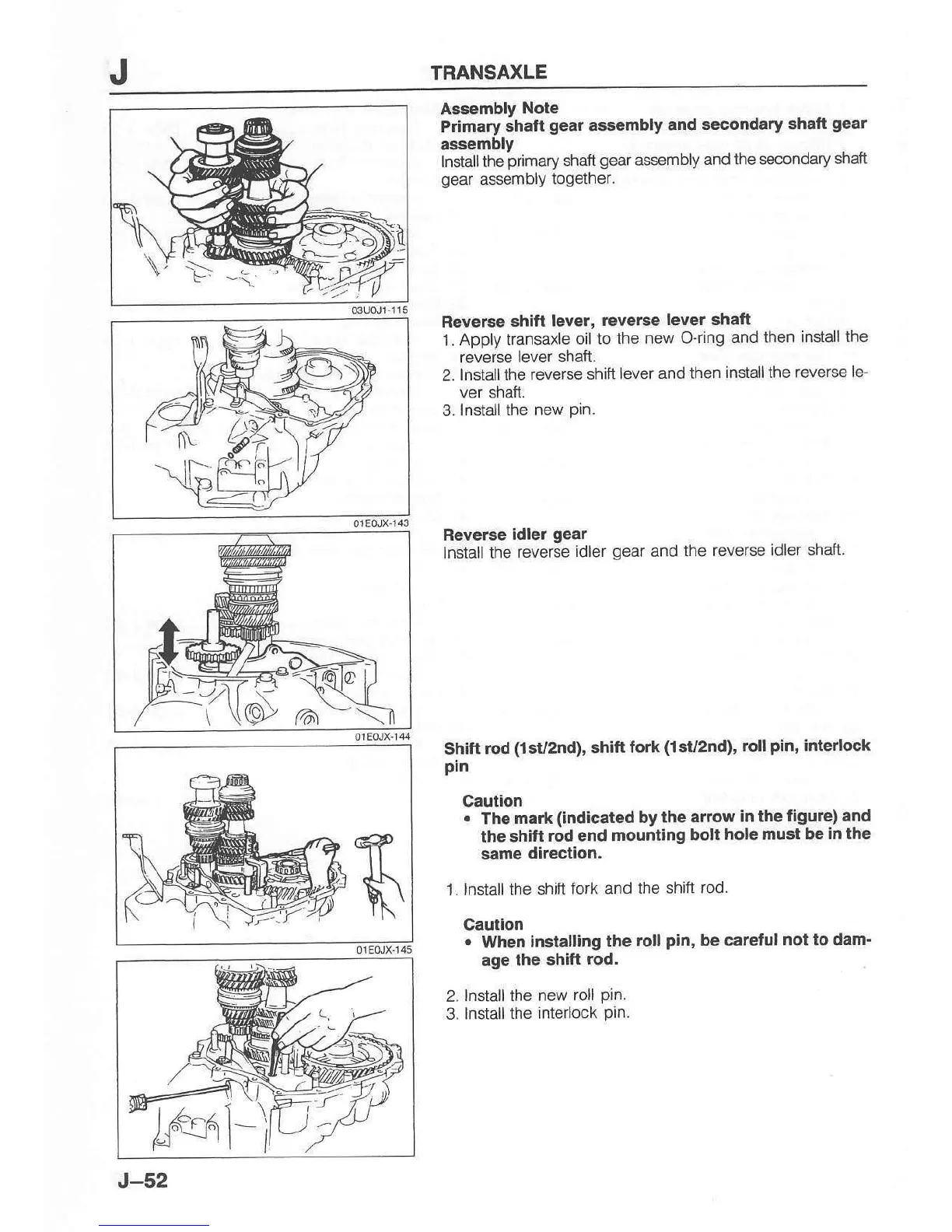

J
TRANSAXLE
Assembly
Note
Primary
ahalt
gear
assembly
and
secondary shatt
gear
assembly
Inslall the
bdmary
shatt
gear
assembly
and the secondary
shaft
gear
assembly
together.
Reverse shift
lever,
reverse
lever shalt
1.
Apply transaxle
oil to the
new O-ring
and then
inslall the
reverse lever shalt.
2.
Installthe reverse
shift lever
and then
installthe
reverse le-
ver shaft.
3.
Inslall the new
pin.
Reverse
idler
gaar
Install the
reverse
idler
gear
and
the reverse
idler shalt.
Shift
rod
(l
sU2nd), shift
fork
(l
su2nd),
roll
pin,
interlock
pin
Caution
.
The
mark
0ndicated
by the
atrow in the
llgure) and
theshin
rod end mountlng
bolt
hole must be
in the
aame
direction.
'l.
,nstall the shitt
iork and
the shift rod.
Caution
.
When
Installing
the roll
pin,
be caretul
not to dam'
age the
shlft
rod.
2.
Install the new
roll
pin.
3. Install
the interlock
pin.
J-52
