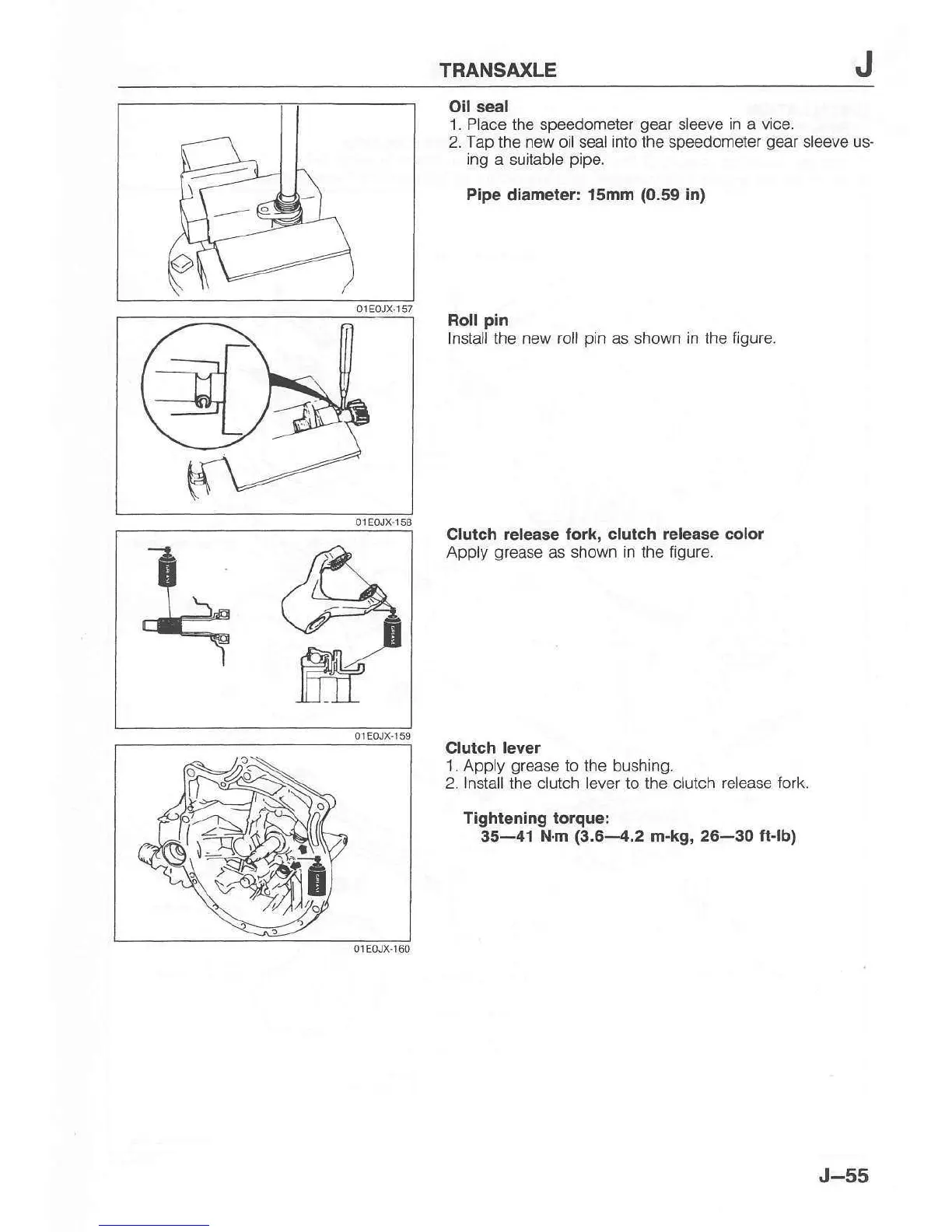

TRANSAXLE J
Oil seal
1. Place the speodometer
gear
sleeve in a vice.
2. Tap the new oil seal into the speedometer
gear
sleeve us-
ing a suitable
pipe.
Pipe
diameter: 15mm
{0,59
in)
Folt
pln
Install
the new roll
pin
as
shown in the figure.
Clulch
release fork, clutch releaae colol
Apply
grease
as
shown in the figure.
Clutch lever
1. Apply
grease
to the bushing.
2. lnstall the clutch lever to the clutch release
fork.
Tightening torque:
35-41
Nm
(3.6-4.2
m-kg,
26-30 fi-lb)
J-55
