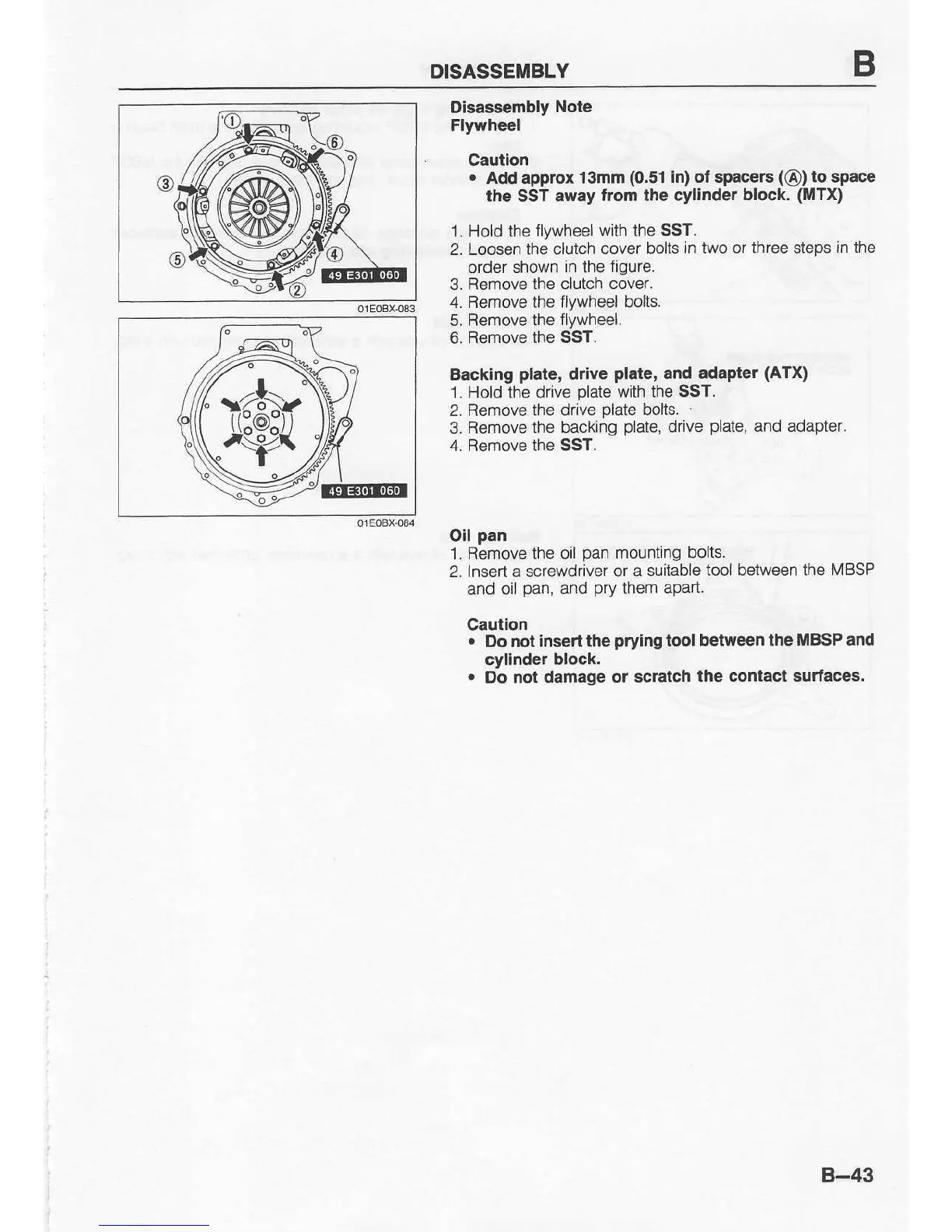

DISASSEMBLY
@
Dbaaaembly
Note
Flywheel
Cautlon
.
Add approx
l3mm
(0.51
In) ot spacets
(@)
lo space
the
SST
away
trom lhe cylinder block.
(MTX)
1. Hold the flywheel
with the SST.
2. Loosen
the clutch cover bolts
in two or three steps
in the
order
shown
in
the
figure.
3. Remove
the clutch cove..
4. Remove the flywheel
bolts.
5. Bemove
the flywheel.
6.
Remove the SST.
Backing
plate,
drive
plate,
and
adapter
(ATX)
'1.
Hold the drive
plate
with the SST.
2. Remove
the drive
plate
botts.
3. Remove
the backing
plate,
drive
plate,
and
adapter.
4. Remove the SST.
Oll
pan
'1.
Remove the oil
pan
mounting bolts.
2. lnsen a screwdriver
or a suitable
tool between the IVIBSP
and oil
pan,
and
Pry
them apart.
Caution
.
Do not
insert the
prying
tool between the
MBSP and
cylinder
block.
.
Do not
damage or sc6tch
the contact surfaces.
B-43
