TIMING/SYNCHRONIZING/ADJUSTING
90-826883R2 JUNE 1998 Page 2C-13
6. Manually push throttle lever forward until it contacts the throttle stop on shift platform.
Verify that the throttle plate can achieve wide open throttle and that no preload exists
on the throttle return spring behind the cam follower plate. (Adjust throttle link rod if
necessary)

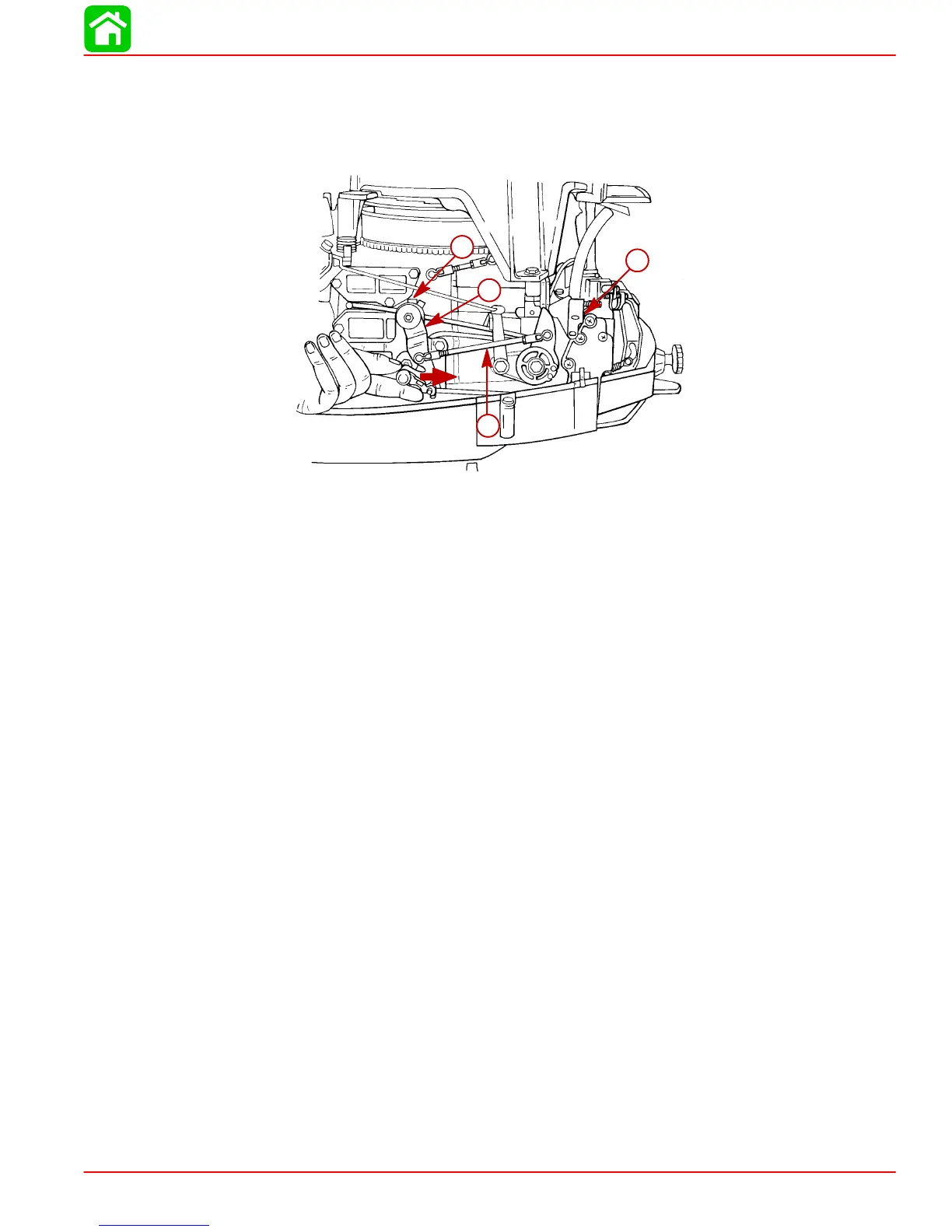

52799
a
b
c
d
a- Throttle Stop
b- Throttle Lever
c- Return Spring (do not allow to act as a throttle stop)
d- Throttle Link Rod
Shift and Throttle Cable Installation To The Outboard
Install the shift cable and throttle cable into the remote control and mount the remote con-
trol following instructions which are provided with the remote control.
NOTE: Install the shift cable before the throttle cable. The shift cable is the first cable to
move when the remote control handle is moved into gear.
