BATTERY CHARGING AND STARTING SYSTEMS
Page 2B-24 90-826883R2 JUNE 1998

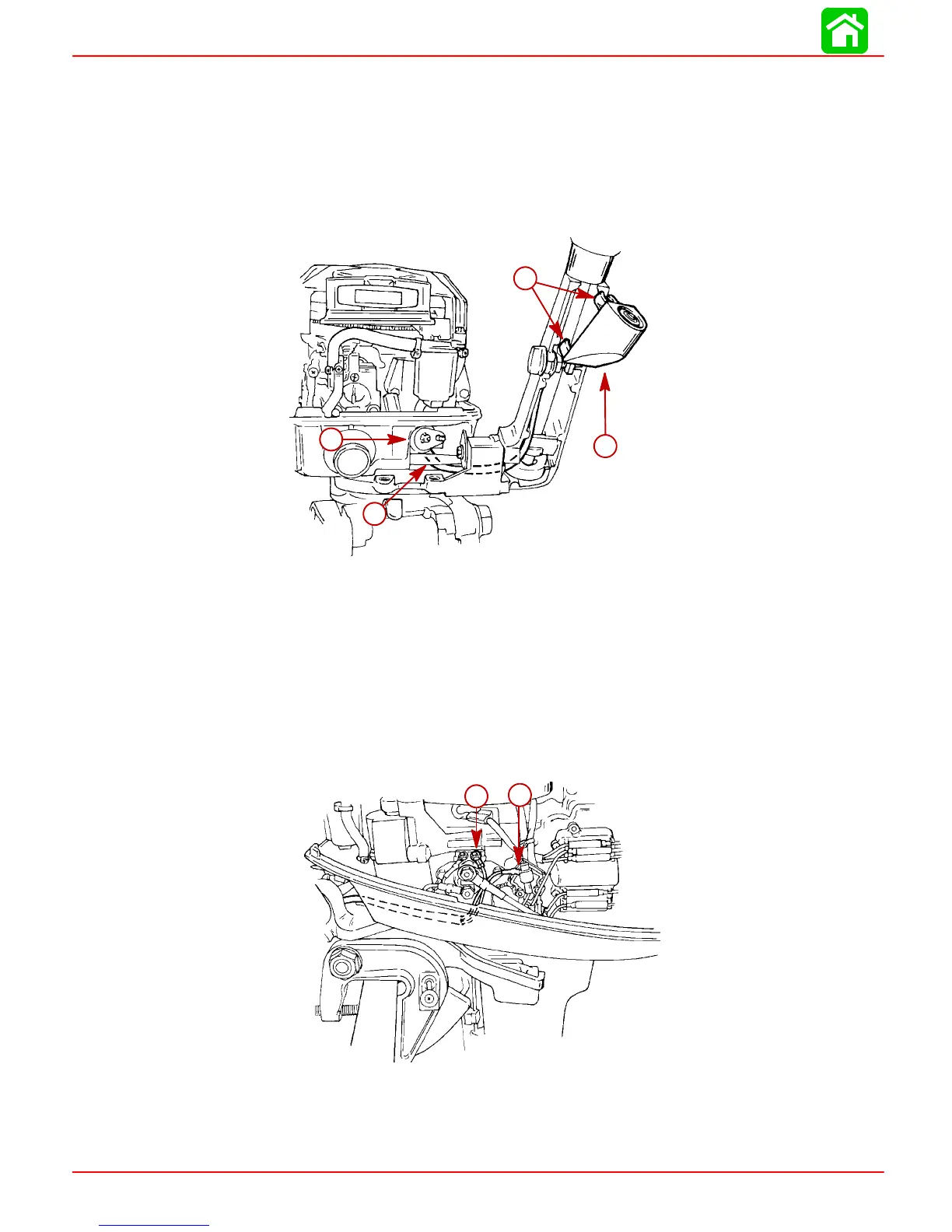

Tiller Handle Start Button
1. The tiller handle start button assembly is securedto the tiller handle by 2 semi-loops
which snap fit onto thetiller throttleshaft. To remove the button assembly,pry the as-
sembly away from the tiller handle with a flat tip screw driver.
2. The starter button harness is routed into the lower cowl through the fuel connector
access hole.
53216
a
c
d
b
a - Start Button Assembly
b - Semi-Loops
c - Harness
d - Fuel Connector
3. The starter button harness is routed down the PORT side of lower engine to cowl.
4. The RED harness lead is connected to the POSITIVE (+) terminal of the rectifier.
Torque attaching nut to 25 lb. in. (2.8 N·m).
5. The YELLOW/RED harness lead attaches to the #2 terminal of the starter terminal.
Torque attaching nut to 15 lb. in. (1.7 N·m).
53215
b
a
a - RED Lead [Torque nut to 25 lb. in. (2.8 N·m)]
b - YELLOW/RED Lead [Torque nut to 15 lb. in. (1.7 N·m)]
