WIRING DIAGRAMS
Page 2D-6 90-826883R2 JUNE 1998

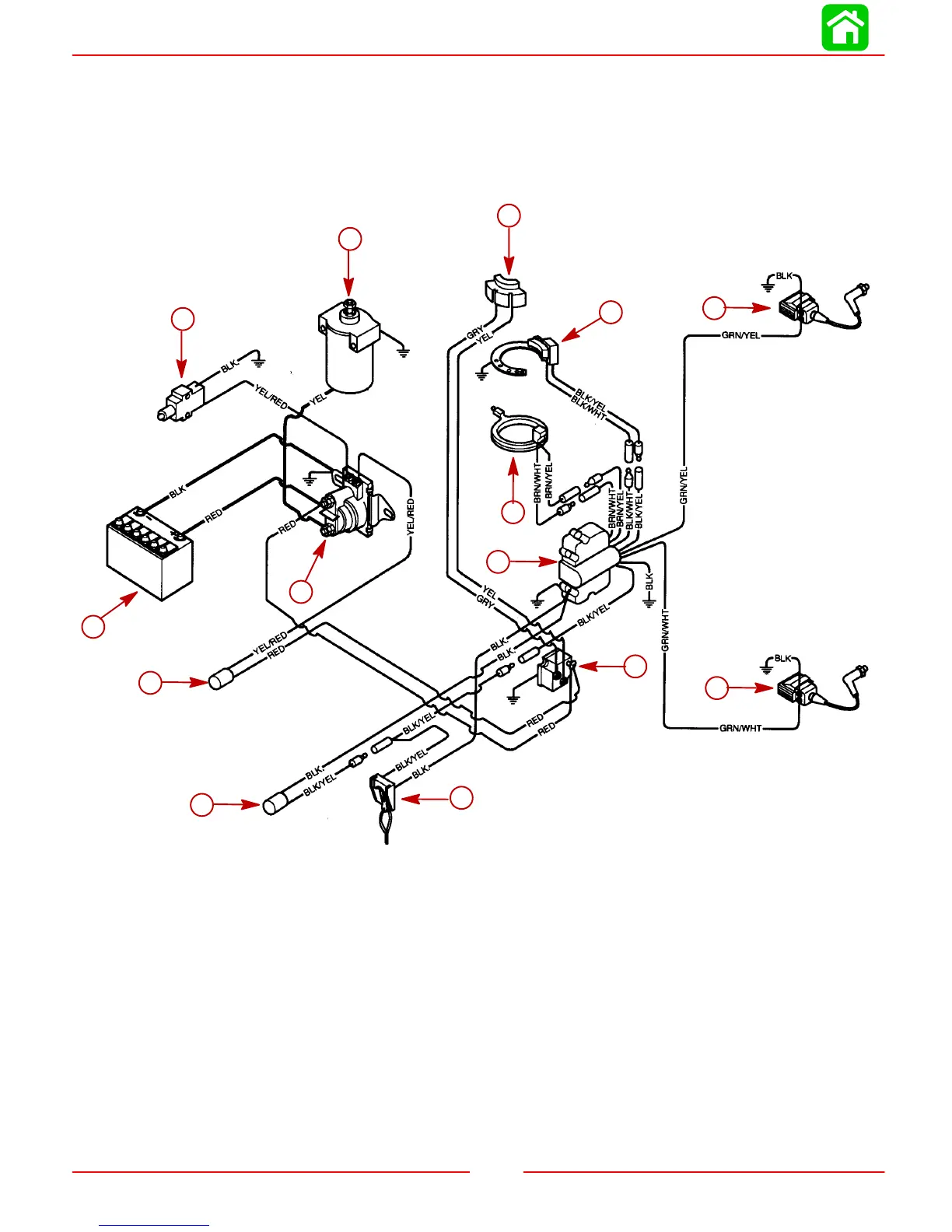

Electric Start Models with Tiller Handle Start Button
(Mechanical Advance)
Model 20/25 (1998)
a
b
c
d
e
f
g
h
i
j
k
l
m
n
BLK = Black
BRN = Brown
GRY = Gray
GRN = Green
RED = Red
WHT = White
YEL = Yellow
a - Charging Coils
b - Stator
c - Ignition Coil Top Cylinder
d - Ignition Coil Bottom Cylinder
e - Rectifier
f - Switch Box
g - Trigger
h - Starter Motor
i - Starter Solenoid.
j - Emergency Stop Switch.
k - Stop Switch
l - Start Switch.
m - 12 VDC Battery
n - Neutral Start Switch
