JET DRIVE
Page 6B-26 90-826883R2 JUNE 1998
Single Bearing System (Large Diameter Bearing)

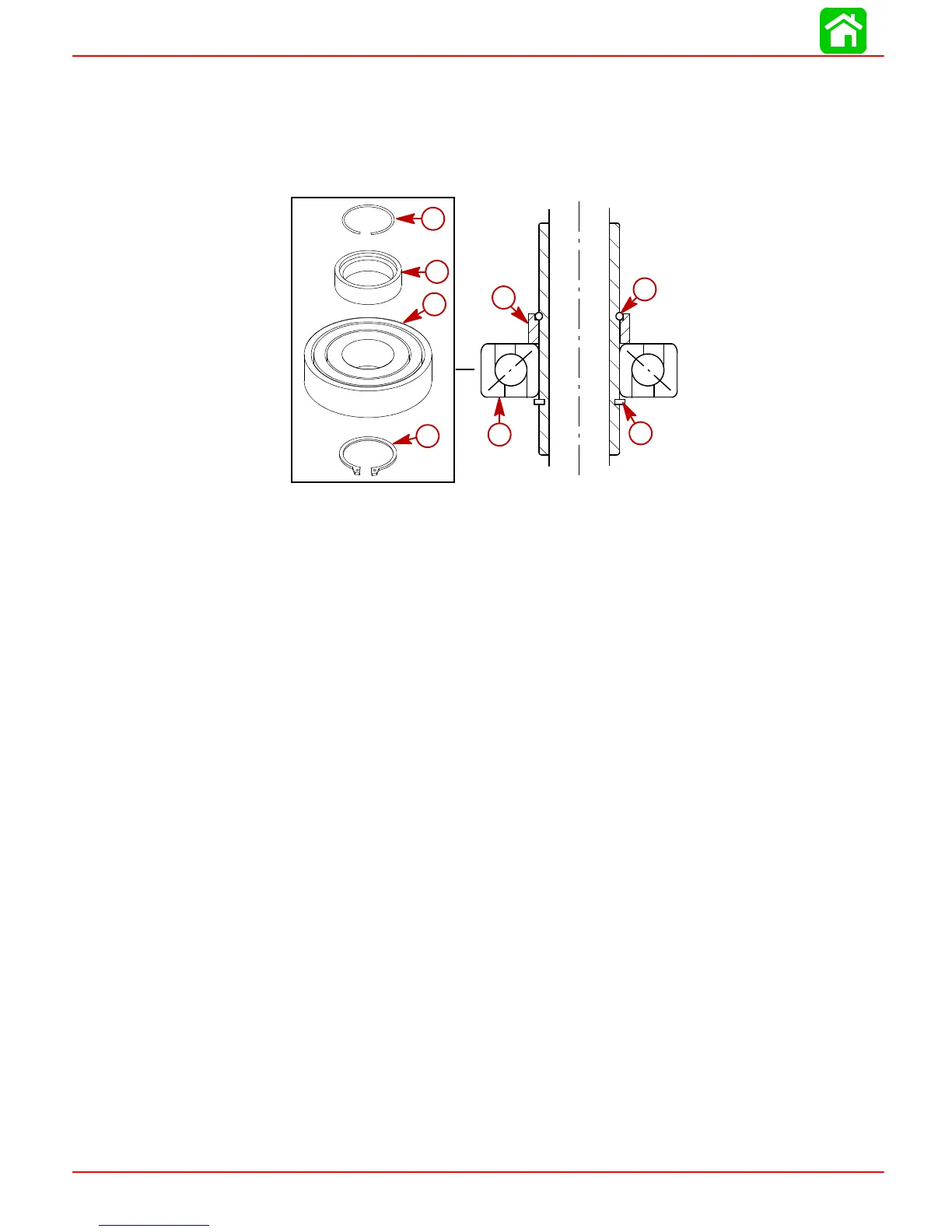

1. If removed, install the bearing thrust ring into the groove on the drive shaft.
2. Install collar onto the drive shaft. Press the new ball bearing onto the drive shaft,
pressing against the inner race only. Press collar over the thrust ring (a), locking
it in its groove. Install snap ring into drive shaft groove below the bearing.
a
b
c
d
b
c
d
a
a - Bearing Thrust Ring
b - Collar
c - Ball Bearing
d - Snap Ring
