CARBURETOR/FUEL
PUMP
90-826883R2 JUNE 1998
Page 3A-19

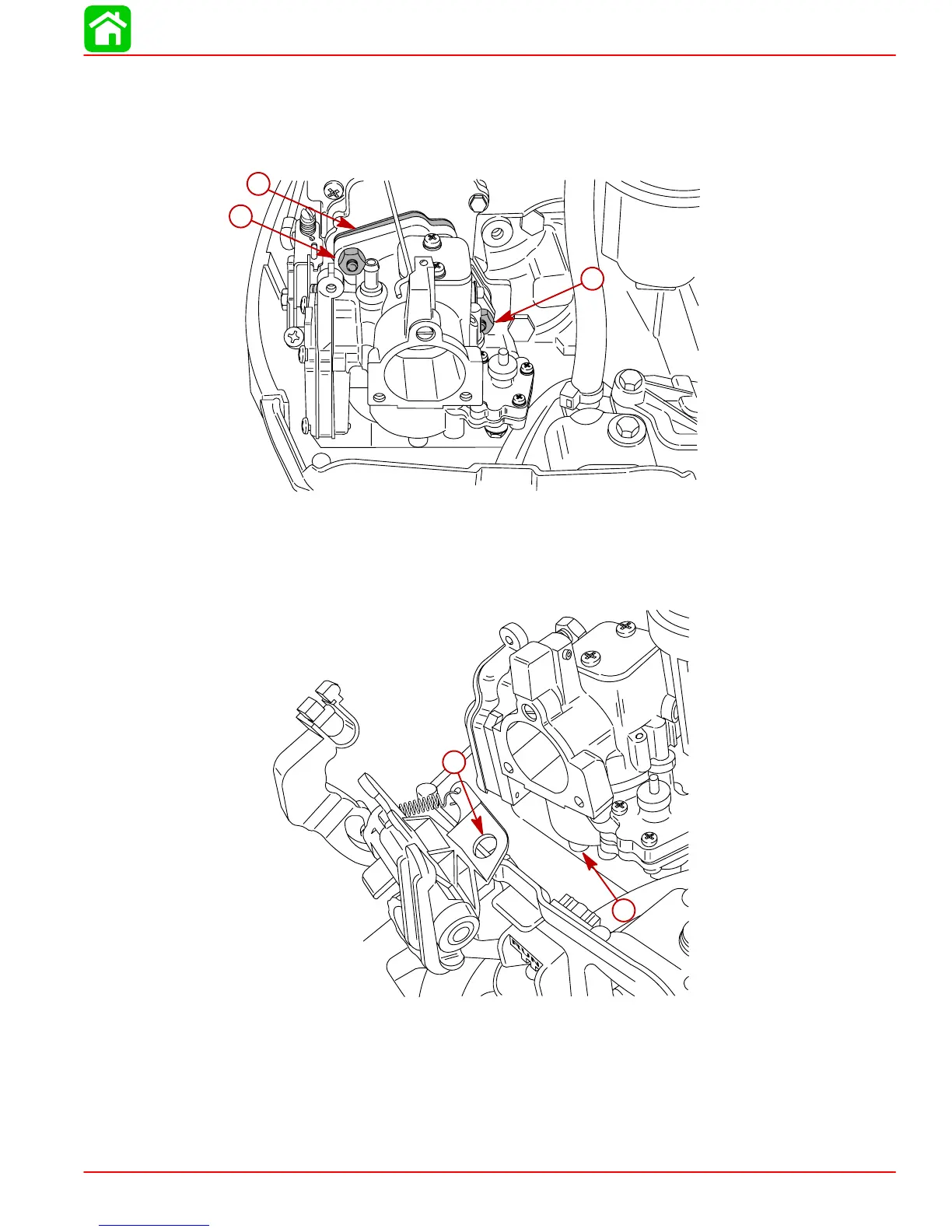

Carburetor Installation
1.
Install carburetor with new gasket onto mounting studs. Start attaching nuts but do
not tighten.
57067
b
b
a
a-
Gasket
b-
Nuts
2.
Install primer assembly onto carburetor
. Position alignment hole on assembly over
post on bottom of carburetor
.
57066
a
b
a-
Alignment Hole
b-
Post
