THROTTLE/SHIFT LINKAGE
Page 7A-12 90-826883R2 JUNE 1998
Installation
1. Secure throttle cam/control lever assembly onto mounting boss of crankcase cover
with bolt. Torque bolt to 120 lb. in. (13.6 N·m).
2. Connect timing link between ball joints of control lever and trigger assembly.

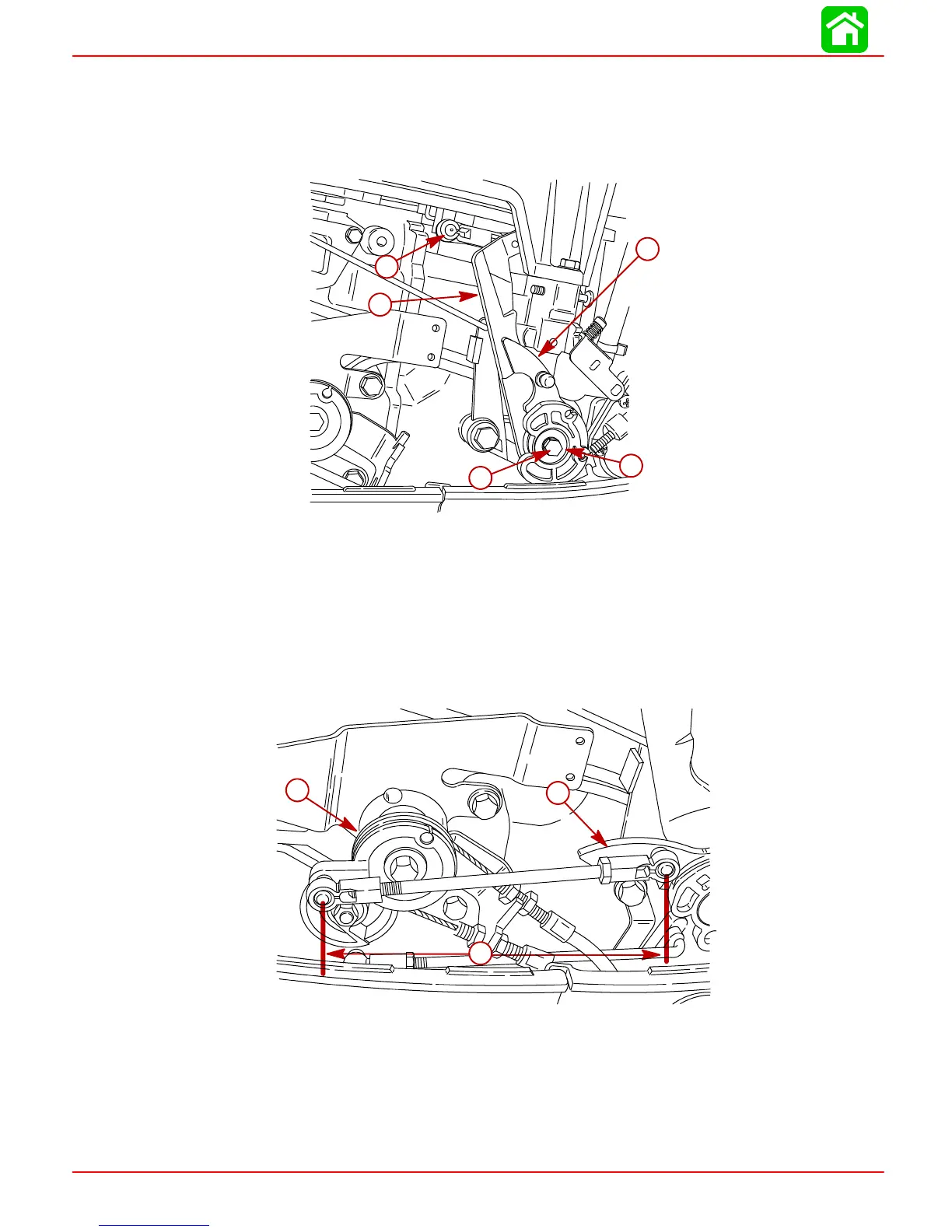

57041
a
b
c
d
e
a - Throttle Cam
b - Control Lever
c - Flat Washer
d - Bolt -- Torque bolt to 120 lb. in. (13.6 N·m)
e - Timing Link
3. Adjustthrottle linkrodtoalengthof5-1/4in.(13.3cm)asmeasuredbetweenballjoint
center lines.
4. Connect throttle link rod between ball jointsof throttle cam and primary throttle lever.
57031
a
b
c
a - Throttle Link Rod -- Adjust to a length of 5-1/4 in. (13.3cm)
b - Throttle Cam
c - Primary Gear
