GEAR HOUSING
Page 6A-14 90-826883R2 JUNE 1998
Disassembly
IMPORTANT: Itis recommended that,during completedisassembly ofgear housing,
all O-rings and oil seals be replaced, regardless of their appearance.
Bearing Carrier

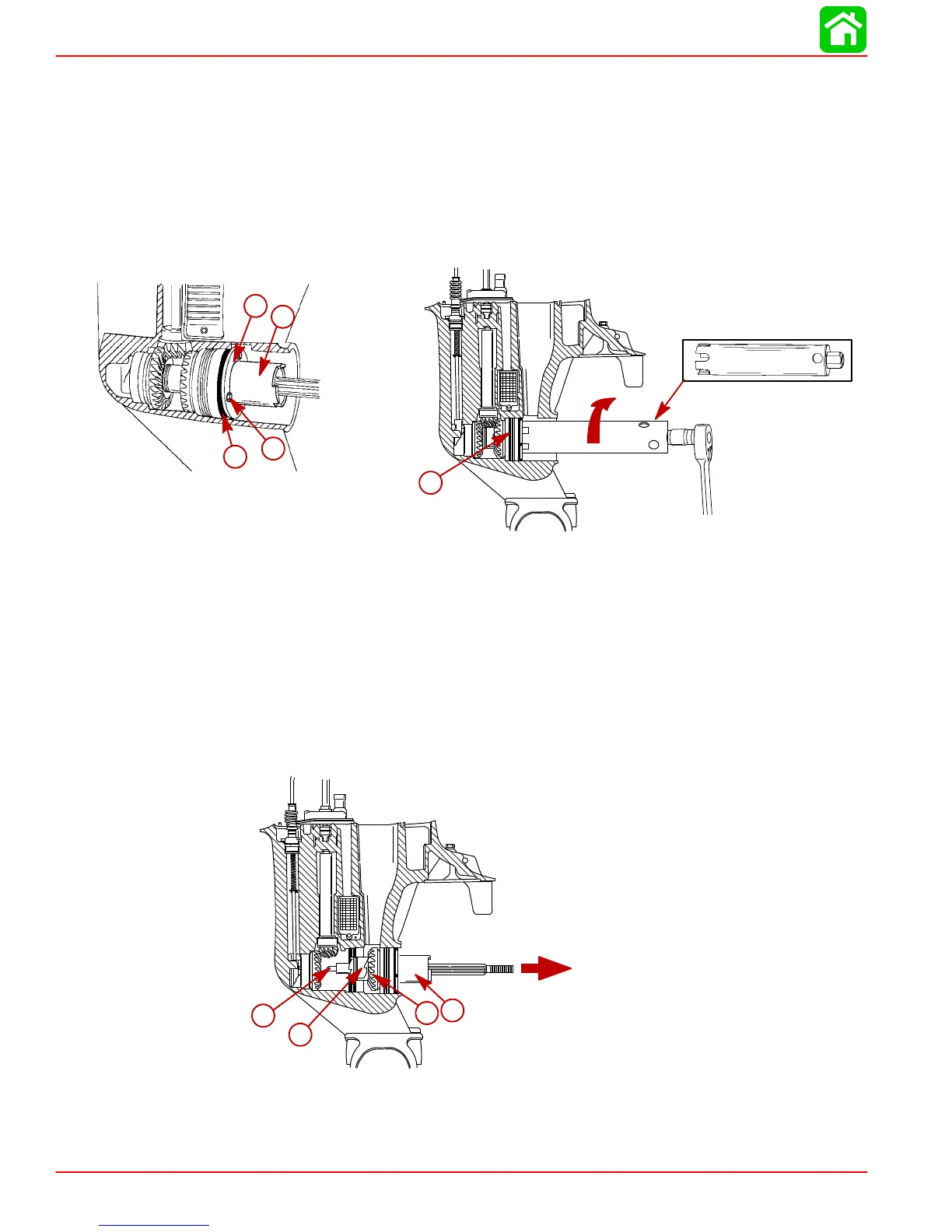

1. Remove 3 screws which secure the O-ring retainer plate and O-ring to the bearing
carrier. Remove the O-ring retainer plate and O-ring from gear housing.
2. Remove bearing carrier using Special Tool 91-93843--1 (LEFT HAND THREAD).
a
b
c
d
91-93843--1
56805
d
a-Screws (3)
b-O-Ring Retainer Plate
c-O-Ring
d-Bearing Carrier
3. Whileholdingontopropellershaftandbearingcarrier,pullpropellershaftfrompropeller
shaft cavity, as shown.
NOTE: Cam follower is free to slide out of propeller shaft.
4. Remove reverse gear and bearing carrier from propeller shaft.
5. Separate reverse gear from bearing carrier.
56806
a
b
d
c
a-Cam Follower
b-Propeller Shaft Assembly
c-Reverse Gear
d-Bearing Carrier
To Next Page
