GEAR HOUSING
Page 6A-26 90-826883R2 JUNE 1998

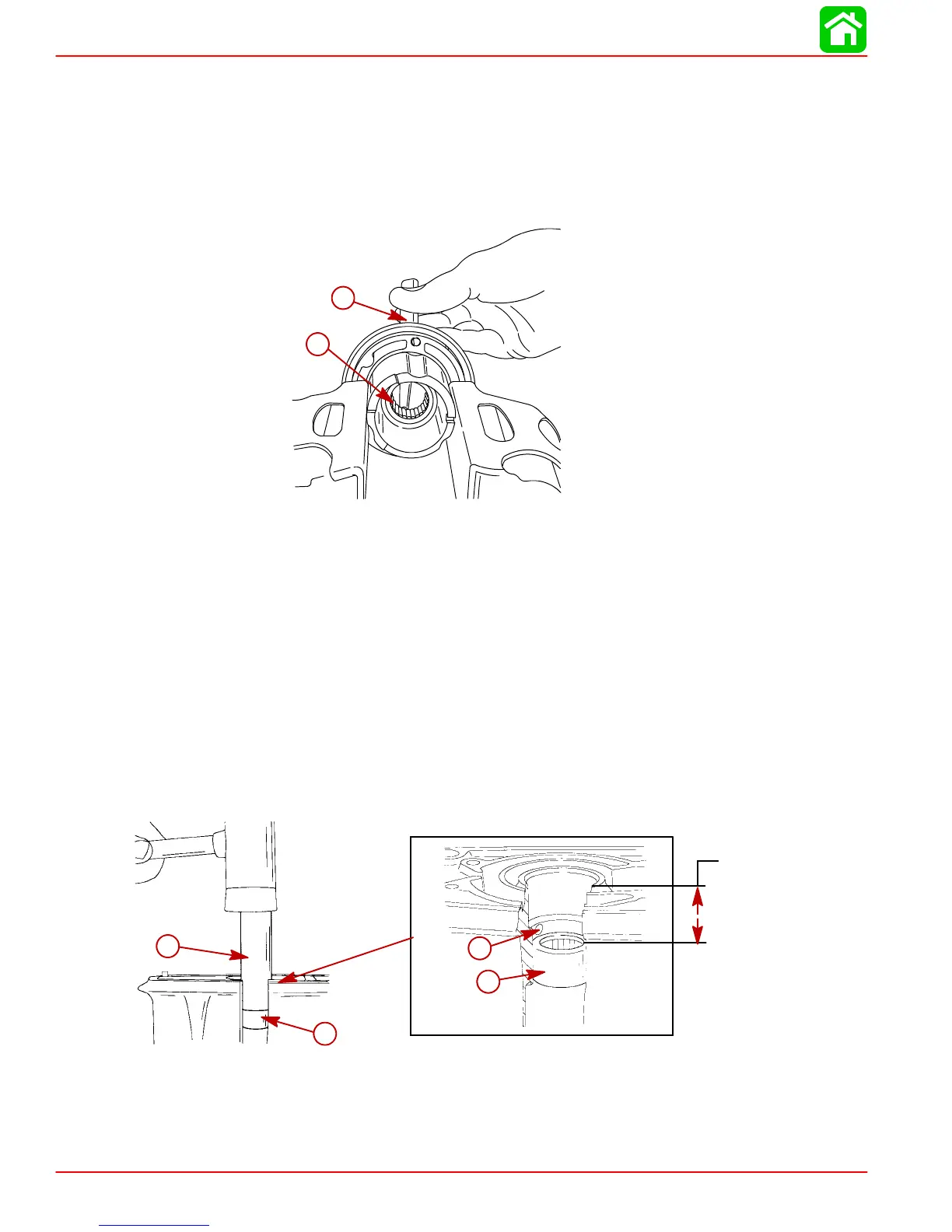

Bearing Carrier
1. If inspection of bearing area on propeller shaft determines that replacement of bearing
inside of bearing carrier is required, remove bearing from bearing carrier.
2. Securebearingcarrierinavise,DONOTclampontothreadedportionofbearingcarrier.
3. Removebearingfrombearingcarrierwithapunchorsuitablemandrel/socketandham-
mer.
56811
b
a
a-Bearing
b-Punch
Reassembly
Drive Shaft Bearing and Seals
1. Installupperdriveshaftbearingintodriveshaftboreofgearhousingsleeve.Applyalight
coat of 2-4-C w/Teflon to upper driveshaft bearing retainer bore as follows:
· Place upper driveshaft bearing over bearing retainer bearing bore with lettered
side of bearing face up.
· Using a suitable mandrel, press bearing into gear housing sleeve until the bear-
ing is just below the oil hole to a depth of 1.00 in. (25.4 mm) as shown.
b
a
c
a
1.00 in. (25.4 mm)
a-Upper Driveshaft Bearing
b-Mandrel
c-Oil Hole
To Next Page
