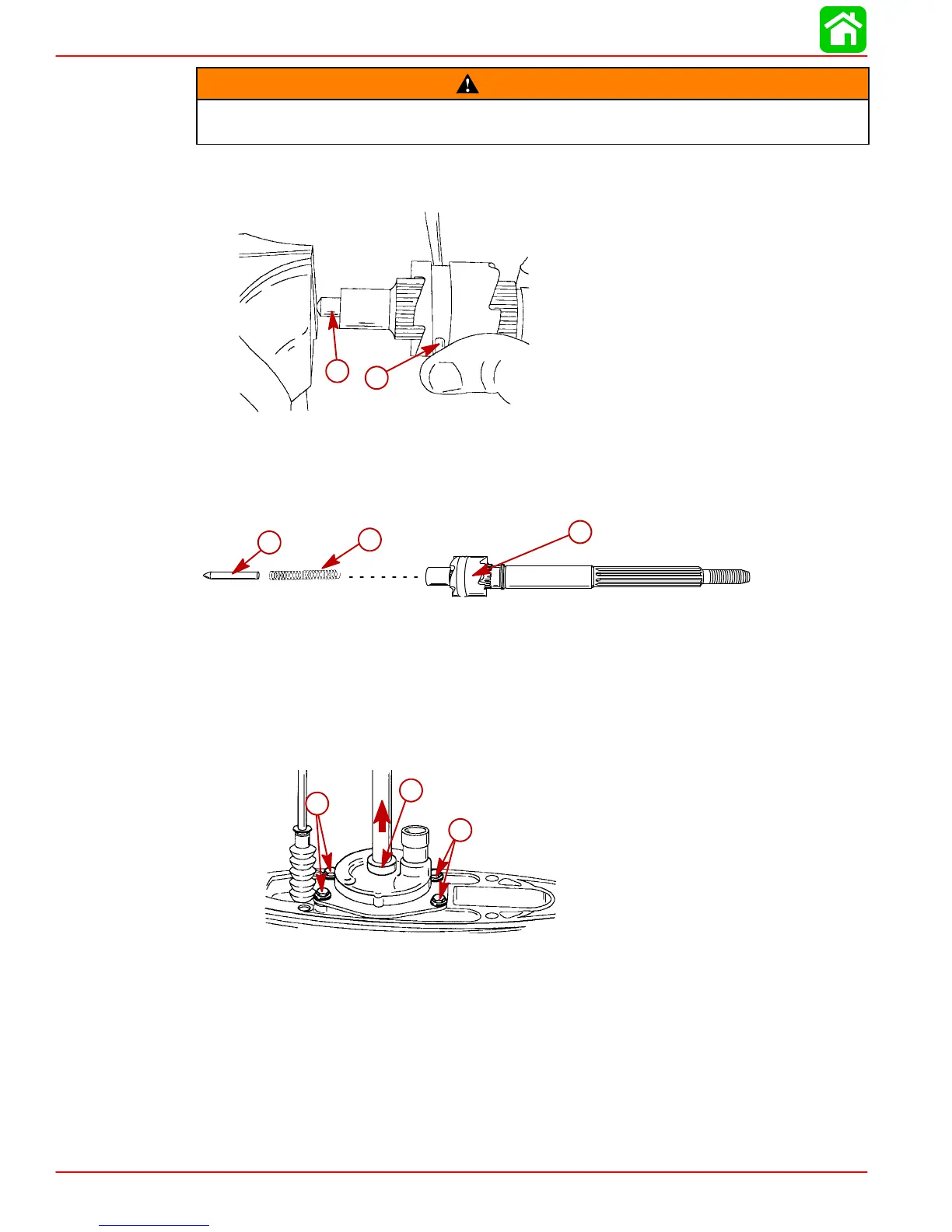

GEAR HOUSING
Page 6A-16 90-826883R2 JUNE 1998
WARNING
Use caution when removing cam follower. As the cross-pin is remove the cam fol-
lower can shoot out of the propeller shaft as a high speed projectile.
5. Push against cam follower. Use a punch or awl to push cross-pin out of sliding clutch.
6. Release pressure against cam follower.
a
b
a-Cam Follower
b-Cross Pin
7. Remove cam follower, spring and sliding clutch from propeller shaft.
a
b
c
a-Cam Follower
b-Spring
c-Clutch
Water Pump
1. Slide centrifugal slinger off drive shaft.
2. Remove four (4) screws securing water pump to gear housing as shown in illustration.
a
b
b
a-Centrifugal Slinger
b-Water Pump Mounting Screws
3. Remove cover, nylonwashers (aboveand belowimpeller), impeller anddrive key from
drive shaft.
4. It is recommended that impeller be replaced whenever gear case is being serviced.
NOTE: If impeller is not going to be replaced, DO NOT install impeller in reverse rotation
to its original state as vanes have taken a set. Vanes will crack and break shortly after out-
board is returned to service.
