WIRING DIAGRAMS
90-826883R2 JUNE 1998 Page 2D-3

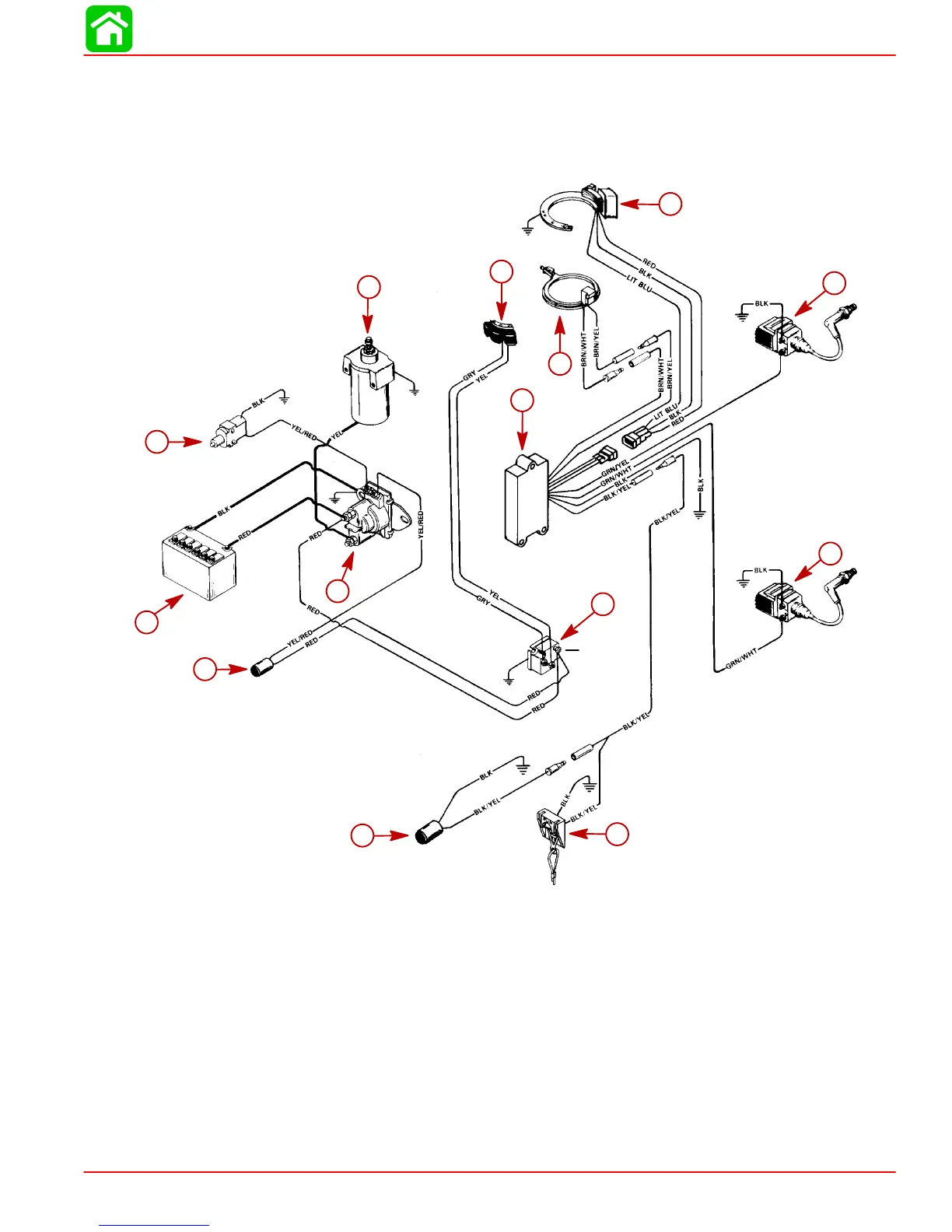

Electric Start Models with Tiller Handle Start Button
(Electronic Advance)
Model 20/25 (1994
1
/
2
THRU 1997)
(+)
g
a
c
b
d
e
f
h
i
j
k
l
m
n
BLK = BLACK
BRN = BROWN
GRY = GRAY
GRN = GREEN
RED = RED
WHT = WHITE
YEL = YELLOW
a - Stator
b - Trigger
c - Ignition Coil Top Cylinder
d - Ignition Coil Bottom Cylinder
e - Emergency Stop Switch
f - Stop Switch
g - Rectifier
h - Switch Box
i - Charging Coils.
j - Starter Motor.
k - Starter Solenoid
l - Start Button.
m - 12 VDC Battery
n - Neutral Start Switch
