GEAR HOUSING
Page 6A-34 90-826883R2 JUNE 1998

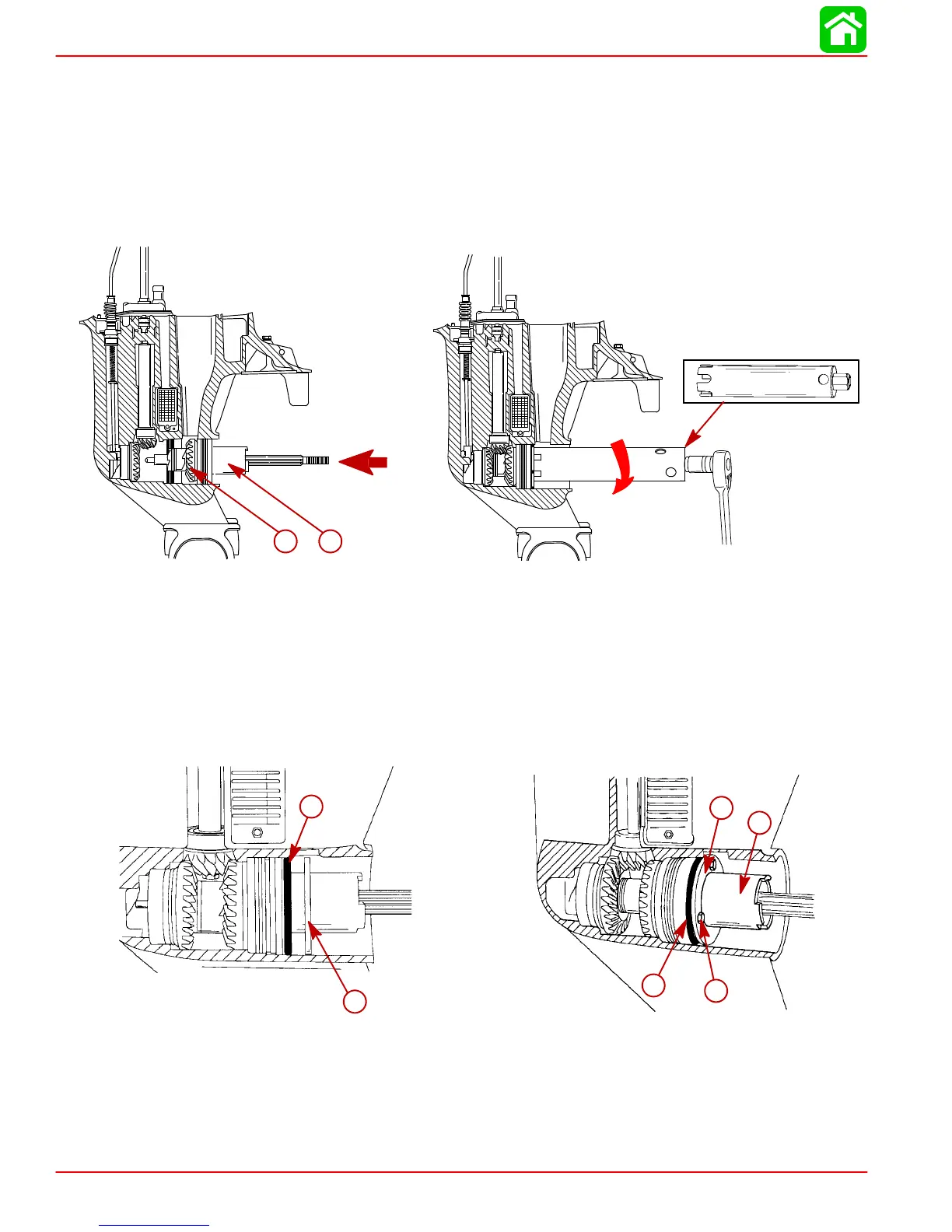

Bearing Carrier/Propeller Shaft Installation
1. Apply a small amount of 2-4-C w/Teflon between lips of propeller shaft oil seals. Apply
2-4-C w/Teflon to threads, O-ring groove and pilot diameter.
2. Slide reverse gear into bearing carrier assembly. Slide bearing carrier assembly over
propellershaft andthreadit intopropellershaft cavity as-far-as possiblebyhand(LEFT
HAND THREAD).
3. Torque bearing carrier using Special Tool 91-93843--1. Torque to 80 lb-ft (108.5 Nm).
91-93843--1
56805
56806
ba
a-Reverse Gear
b-Bearing Carrier Assembly
4. Install O-ring and O-ring retainer plate on bearing carrier.
5. Secure O-ring retainer plate to bearing carrier with 3 screws.
NOTE: Orientate O-ring to prevent “pinching it”.
6. Torque screws to 65 lb-in. (7.2 Nm).
a
b
c
b
a
d
a-O-Ring
b-O-Ring Retainer Plate
c-Screws (3) Torque to 65 lb-in. (7.2 Nm)
d-Bearing Carrier
To Next Page
