Mercury 15XD - Water Pump Removal and Installation; Removal; Installation

JET DRIVE
Page 6B-24 90-826883R2 JUNE 1998
Water Pump Removal and Installation
Removal
1. Remove water pump assembly as shown.
Installation
IMPORTANT: If impeller being installed has been previously used and vanes have
takena“set,” donotinstalltheimpellerwiththevanesreversedfromtheirprevious
“set” as vane breakage will occur shortly after unit is returned to service.
NOTE: Apply a light coat of 2-4-C w/Teflon to inside of pump cover to ease installation
of cover over impeller.

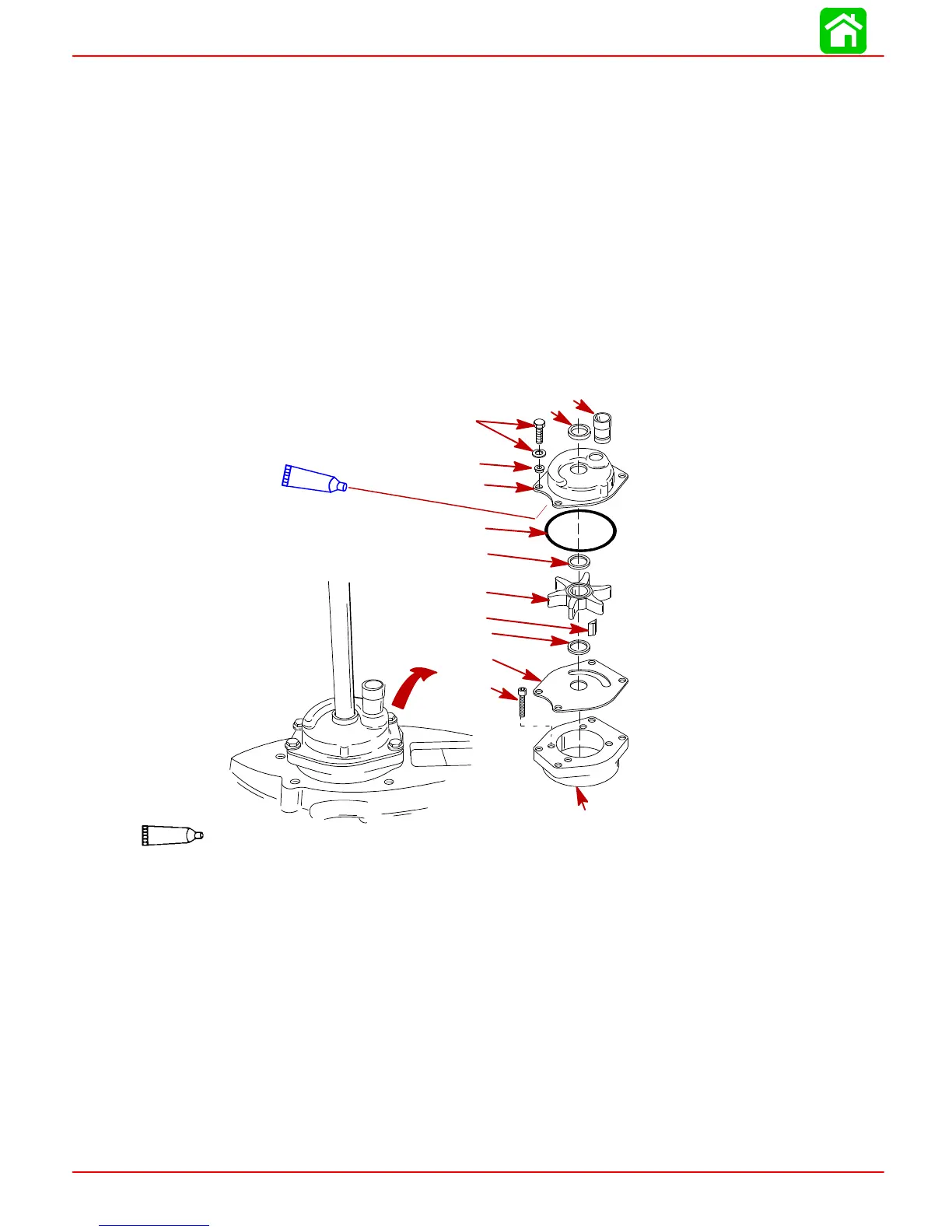

1. Reassemblewaterpumpassemblyasshown.RotatedriveshaftCLOCKWISEwhile
pressing water pump body down over impeller.
c
95
95
2-4-C With Teflon (92-825407A12)
b
a
d
h
e
f
g
i
k
j
l
m
a - Bolt and flat washer (4) -- Apply Loctite 271 to threads
b - Bushing (4) -- Used on earlier type water pumps
c - Rubber Ring
d - Seal -- Water Tube
e - Pump Assembly
f - O-Ring
g - Washer
h - Impeller
i - Key
j - Washer
k - Face Plate
l - Screw (4) -- Apply Loctite 271. Torque to 35 lb. in. (4.0 N·m)
m - Base
