JET DRIVE
90-826883R2 JUNE 1998 Page 6B-17

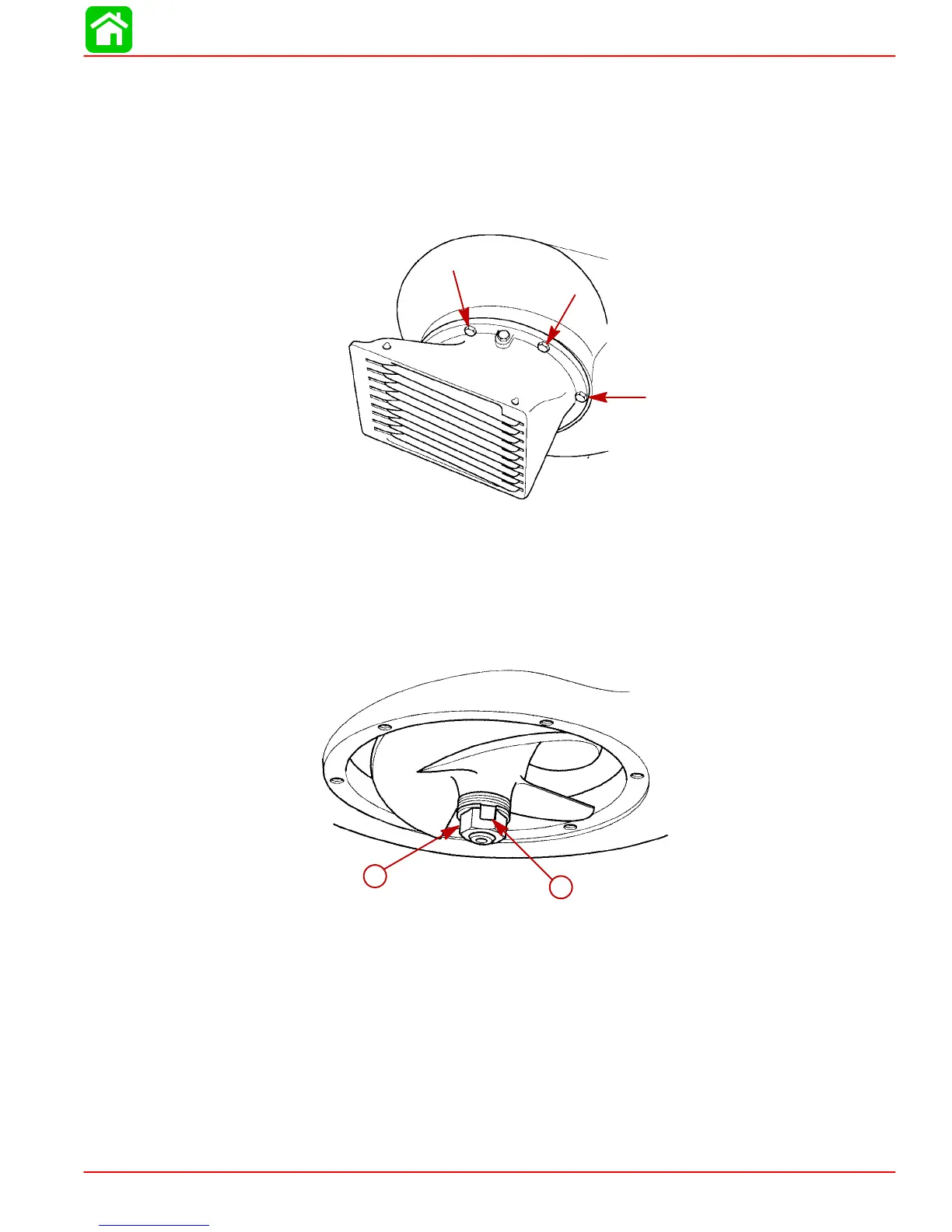

Impeller Removal and Installation
REMOVAL
1. Shift outboard to NEUTRAL (N) position.
2. Remove spark plug leads to prevent engine from starting.
3. Remove the water intake housing that is fastened with six screws.
4. Straighten the bent tabs on the impeller nut retainer and remove the impeller nut.
5. Pull impeller straight off the shaft. If the impeller is tight, use a hammer and block of
woodtorotatetheimpeller(clockwise)ontheshaftuntilthekeywayisdirectly above
the flat on the shaft. This will free the jammed key and allow removal.
a
b
a - Tab
b - Nut
