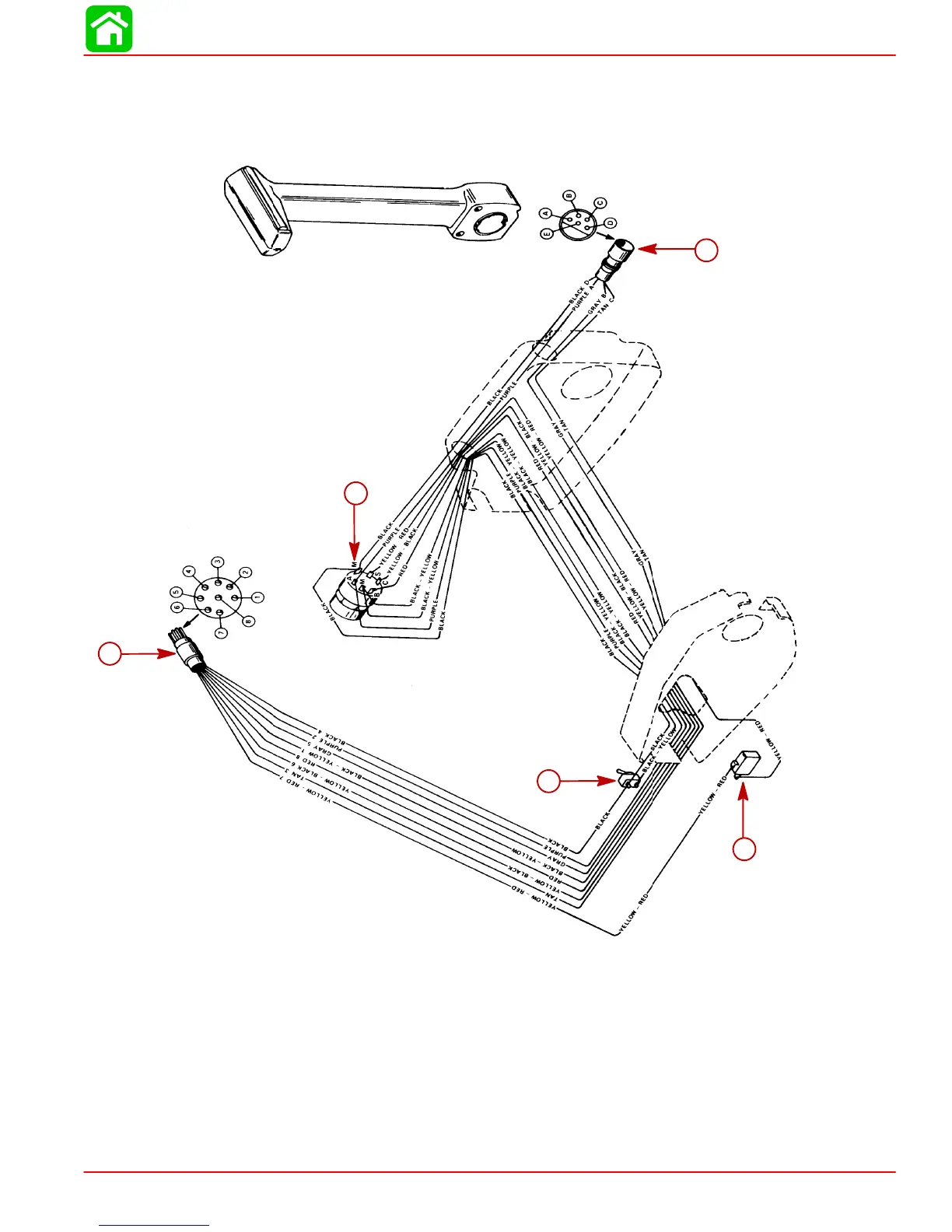

WIRING DIAGRAMS
90-826883R2 JUNE 1998
Page 2D-13
Commander Remote Control (Electric Start)
BLK
=
BLACK
BRN
=
BROWN
GR
Y
=
GRA
Y
GRN
=
GREEN
RED
=
RED
WHT
=
WHITE
YEL
=
YELLOW
d
c
b
a
e
a
-
Ignition/Choke Switch
b
-
Emergency Stop Switch
c
-
Neutral Start Switch
d
-
T
achometer/Accessories Harness Connector
e
-
Remote Control Harness Connector
122
124
