WIRING DIAGRAMS
Page 2D-4 90-826883R2 JUNE 1998

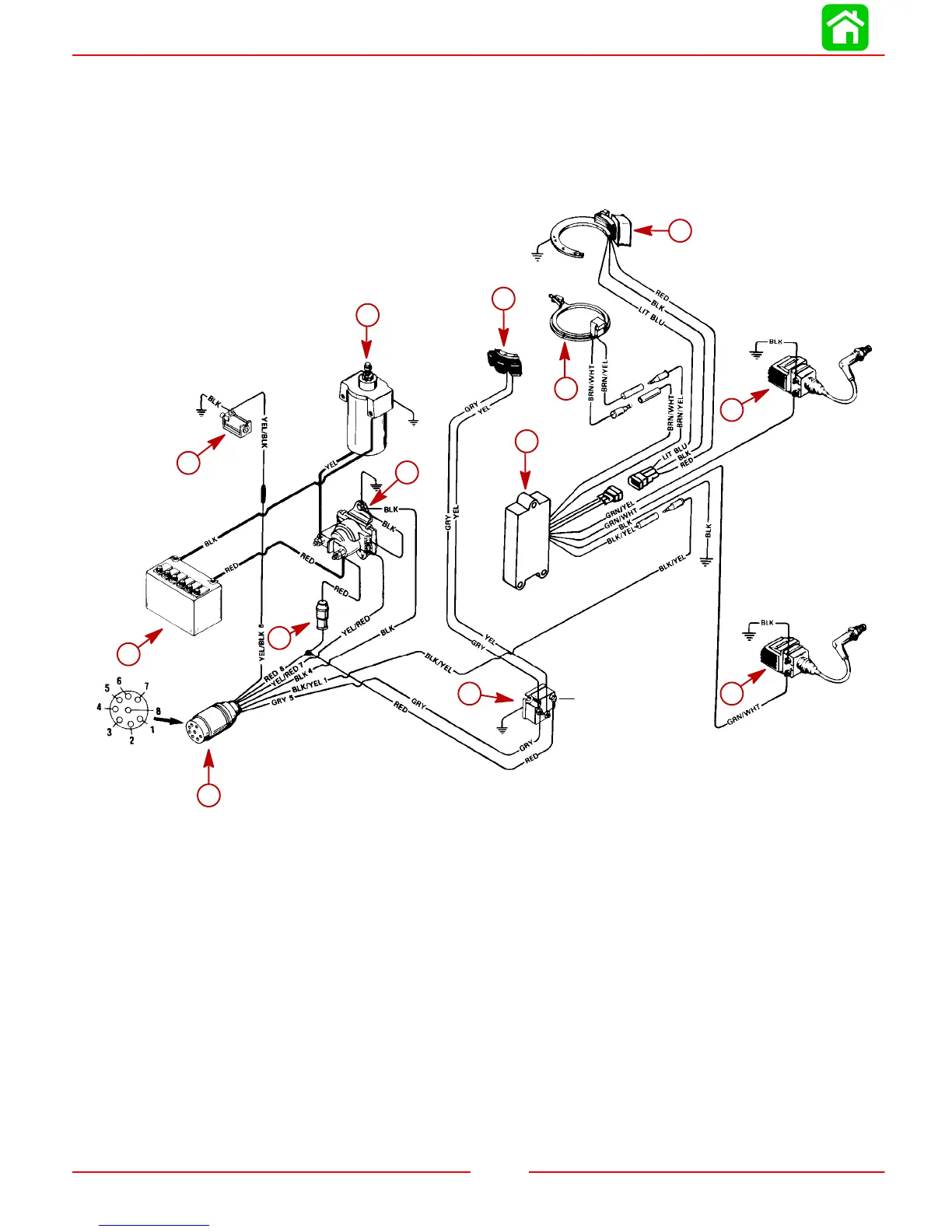

Electric Models Equipped with Remote Control
(Electronic Advance)
Model 20/25 (1994
1
/
2
THRU 1997)
(+)
i
f
b
g
a
c
d
e
k
l
j
h
m
BLK = BLACK
BRN = BROWN
GRY = GRAY
GRN = GREEN
RED = RED
WHT = WHITE
YEL = YELLOW
a - Stator
b - Trigger
c - Ignition Coil Top Cylinder
d - Ignition Coil Bottom Cylinder
e - Rectifier
f - Switch Box
g - Charging Coils
h - Starter Motor
i - Starter Solenoid.
j - Fuse Holder (20 Ampere Fuse).
k - Remote Control Harness
l - 12 VDC Battery.
m - Neutral Start Switch
