BATTERY CHARGING AND STARTING SYSTEMS
90-826883R2 JUNE 1998 Page 2B-15
Emergency Stop Switch
(Lanyard Type)
IMPORTANT: Refer to Section 2D “Wiring Diagrams” for wiring connections.

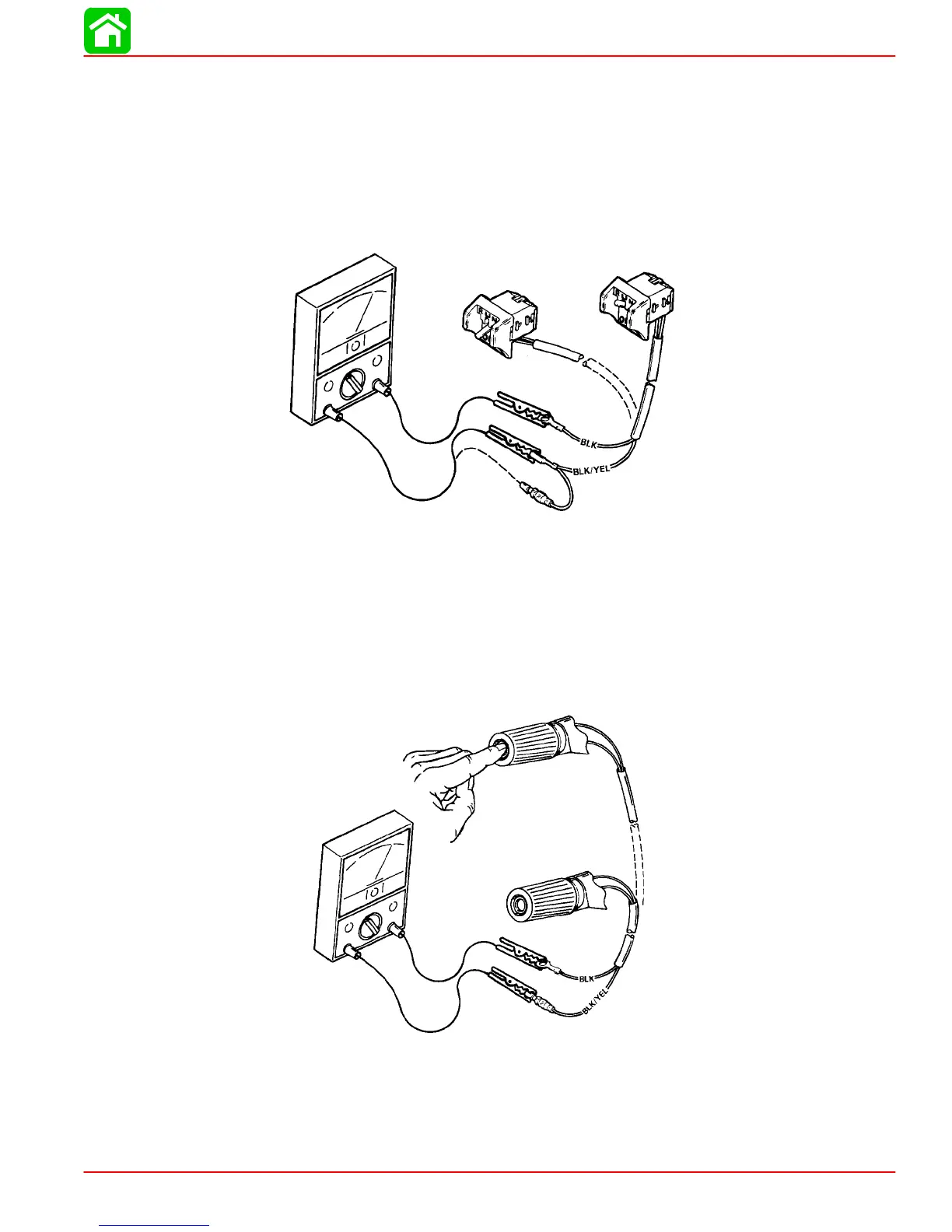

1. Disconnect emergency stop switch leads from engine wiring.
2. Use an ohmmeter and perform the following tests.
“OFF”
CONTINUITY
(1 Ohm or Less)
“RUN”
NO CONTINUITY
(¥)
23421
3. If meter readings are other than specified, replace emergency stop switch.
Push Button Stop Switch
IMPORTANT: Refer to Section 2D “Wiring Diagrams” for wiring connections.
1. Disconnect push button stop switch leads from engine wiring.
2. Use an ohmmeter and perform the following tests.
23421
CONTINUITY
(I Ohm or Less)
NO CONTINUITY
(¥)
3. If meter readings are other than specified, replace push button stop switch.
