GEAR HOUSING
Page 6A-20 90-826883R2 JUNE 1998

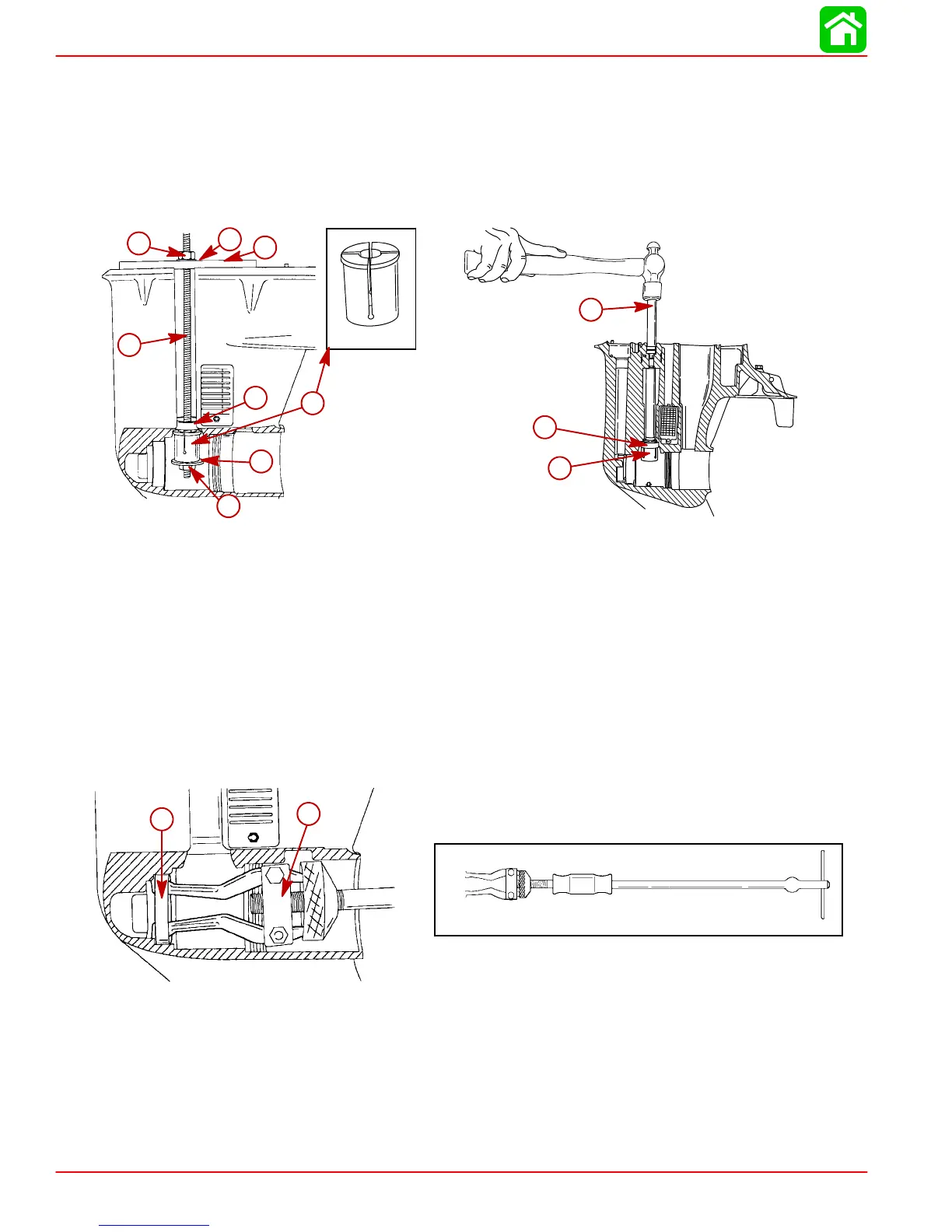

Lower Drive Shaft Bearing/Cup
1. Fasten bearing cup puller on a threaded rod as shown.
2. Tightenhexnutanddrawthebearingcuppullerupintobearingcupuntillipontoolsnaps
over the top side of bearing cage. Remove threaded rod assembly.
3. Insert tapered end of rod (91-44385) into bearing cup puller and tap bearing cup out of
driveshaft bore.
a
c
d
e
f
g
c
91-44385
b
56911
a
b
h
a-Bearing Cup
b-Bearing Cup Puller (91-44385)
c-Flat Washers 2 (12-34961)
d-Hex Nut 0.625x18 (11-24156)
e-Threaded Rod 0.625x18-16 Long (91-31229)
f-Plate (91-29310)
g-Hex Nut 0.625x18 (11-24156)
h-Tapered Rod (91-44385)
Forward Gear Race
1. Use slide hammer to remove forward gear tapered bearing race as shown.
a
b
91-34569A1
a-Slide Hammer
b-Tapered Bearing Race
