BATTERY CHARGING AND STARTING SYSTEMS
Page 2B-10 90-826883R2 JUNE 1998

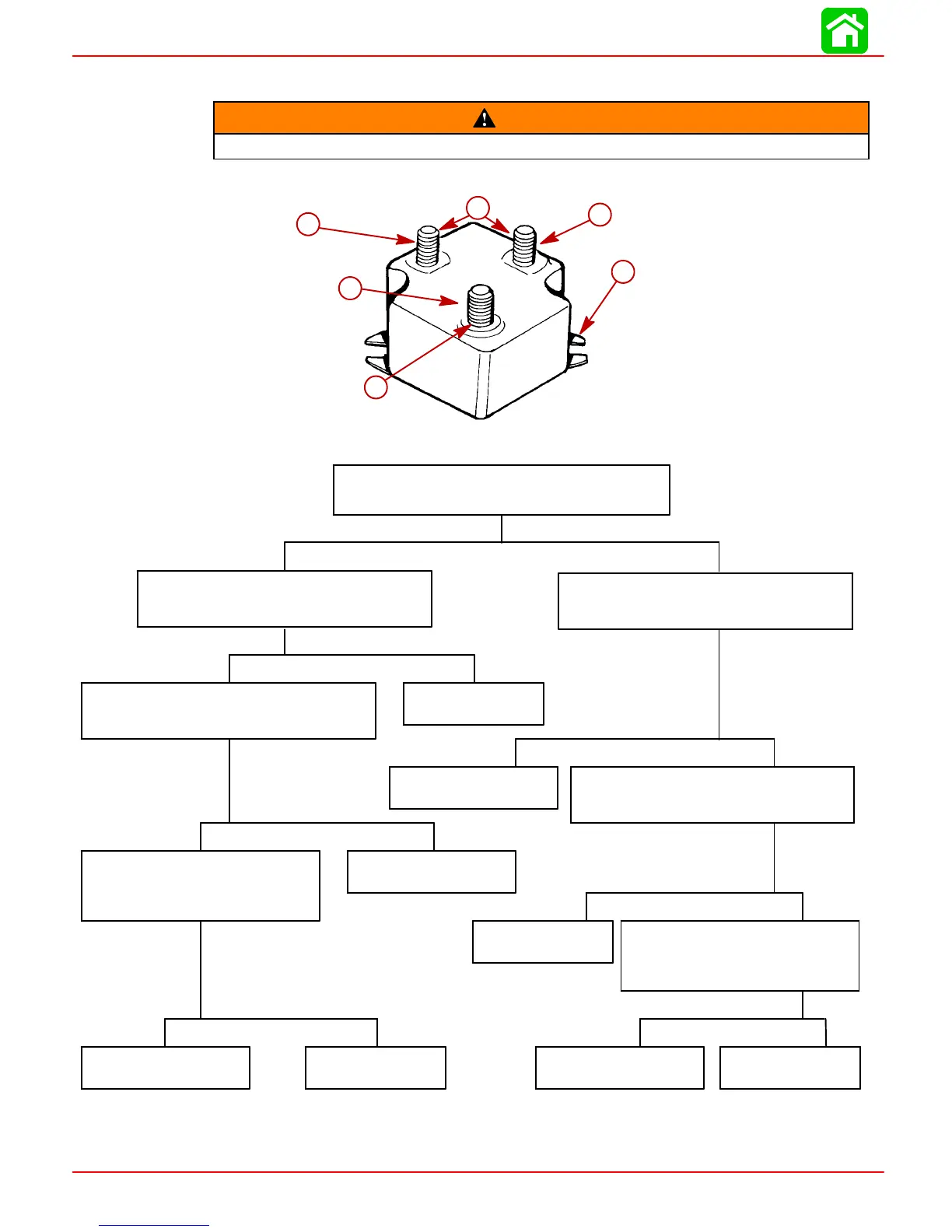

Rectifier Test
WARNING
Disconnect battery leads from battery before testing rectifier.
*NOTE: Rectifier can be tested without removing from engine.
07300
b
e
c
f
a
d
Rectifier Test (continued)
Connect RED meter lead to ground, BLACK lead
alternately to terminals a and c.
Connect BLACK meter lead to ground, RED
lead alternately to terminals a and c.
Connect BLACK meter lead to ground, RED
lead alternately to terminals a and c.
Continuity Indicated
No Continuity Indicated
Continuity Indicated.
Replace Rectifier.
Continuity Indicated.
Replace Rectifier.
Continuity Indicated.
Rectifier Tests O.K.
Continuity Indicated.
Replace Rectifier.
No Continuity Indicated.
Replace Rectifier.
No Continuity Indicated.
Replace Rectifier.
No Continuity Indicated.
Replace Rectifier.
No Continuity Indicated.
Rectifier tests O.K.
Continuity Indicated
Continuity Indicated
No Continuity Indicated
No Continuity Indicated
Connect RED meter lead to termi-
nal b, BLACK lead alternately to
terminals a and c.
Connect RED meter lead to termi-
nal b, BLACK lead alternately to
terminals a and c.
Connect BLACK meter lead to terminal b,
RED lead alternately to terminals a and c.
Connect BLACK meter lead to terminal b,
RED lead alternately to terminals a and c.
