WIRING DIAGRAMS
90-826883R2 JUNE 1998 Page 2D-7

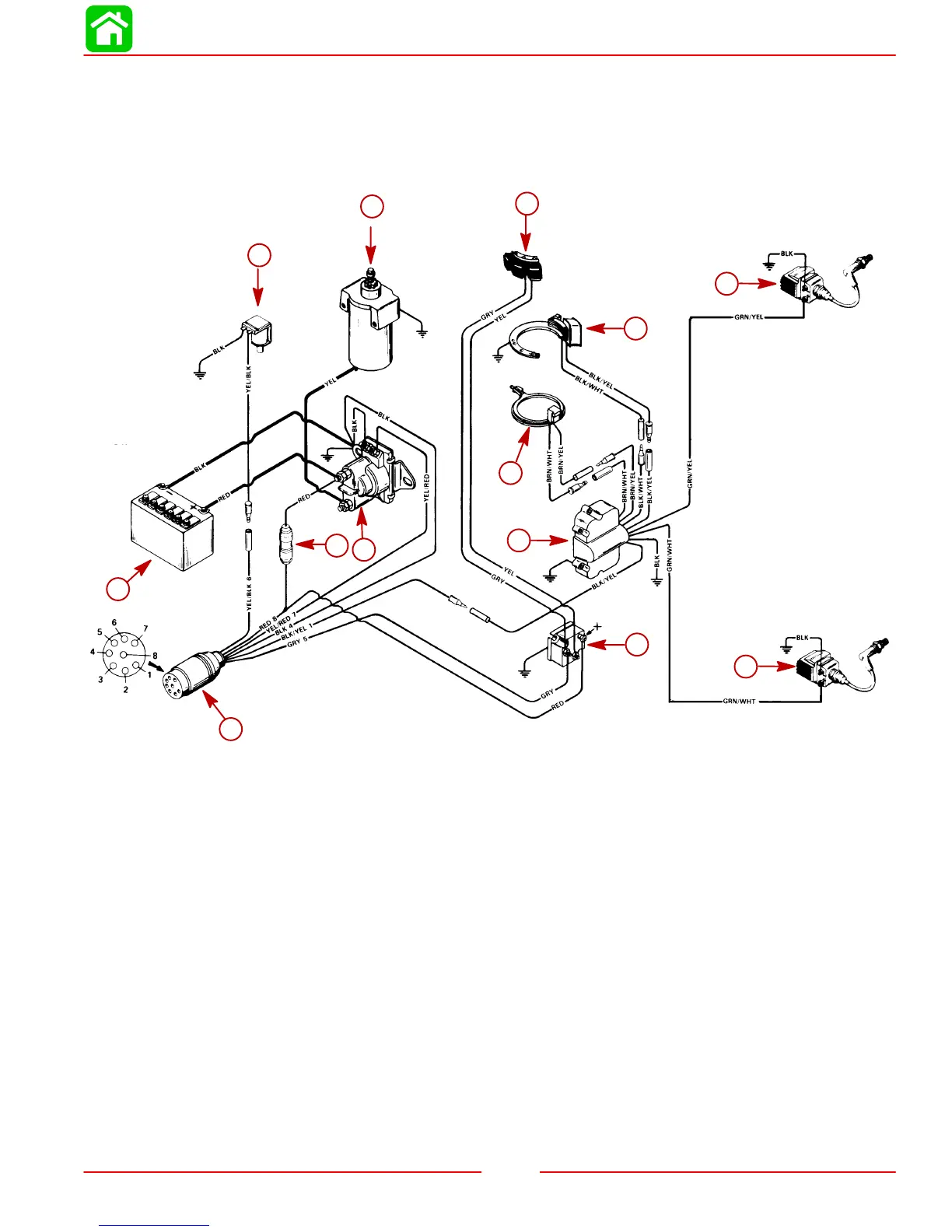

Electric Models Equipped with Remote Control
(Mechanical Advance)
Model 20/25 (1998)
BLK = BLACK
BRN = BROWN
GRY = GRAY
GRN = GREEN
RED = RED
WHT = WHITE
YEL = YELLOW
a
b
c
d
e
f
g
h
k
m
i
l
j
a - Charging Coils
b - Stator
c - Ignition Coil Top Cylinder
d - Ignition Coil Bottom Cylinder
e - Rectifier
f - Switch Box
g - Trigger
h - Starter Motor
i - Starter Solenoid.
j - Fuse Holder (20 Ampere Fuse).
k - Remote Control Wiring Harness
l - 12 VDC Battery.
m - Choke Solenoid
To Next Page
