THROTTLE/SHIFT LINKAGE
90-826883R2 JUNE 1998 Page 7A-7
Reassembly/Installation

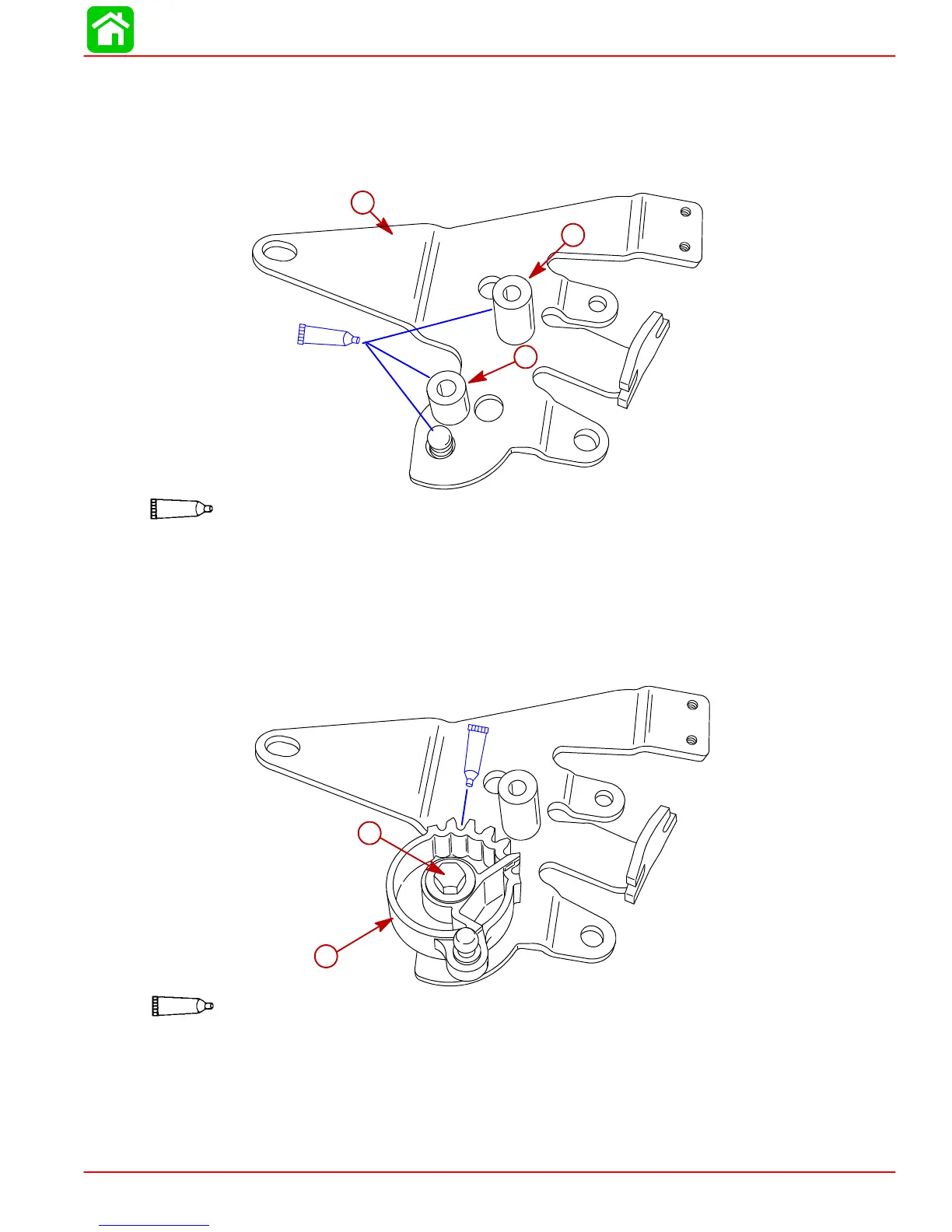

1. Install short bushing and long bushing on control platform.
2. Install detent spring and detent ball into recess of control platform.
3. Lubricate bushings and area of platform traveled by gears with 2-4-C w/Teflon.
c
b
57038
95
2-4-C With Teflon (92-825407A12)
95
a
a - Short Bushing
b - Long Bushing
c - Platform
4. Install secondary gear over short bushing and detent ball and spring as shown.
5. Securesecondary gearwithbolt andflatwasher.Torqueboltto120lb.in.(13.6N·m).
6. Lubricate gear teeth with 2-4-C w/Teflon.
b
a
57039
95
2-4-C With Teflon (92-825407A12)
95
a - Secondary Gear
b - Bolt and Flat Washer -- Torque to 120 lb. in. (13.6 N·m)
