THROTTLE/SHIFT LINKAGE
Page 7A-8 90-826883R2 JUNE 1998

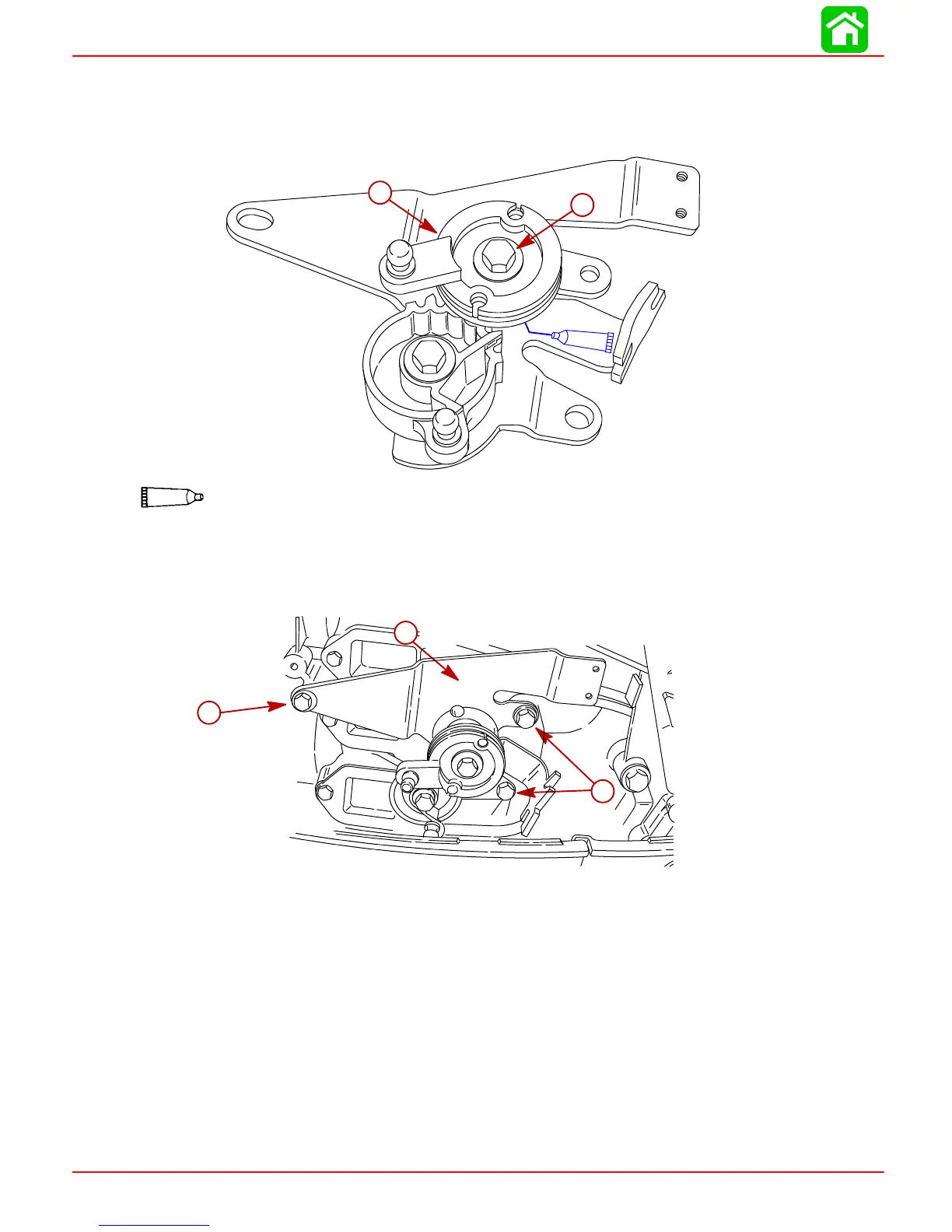

7. Install primary gear over long bushing as shown.
8. Secure primary gear with bolt and flat washer. Torque bolt to 120 lb. in. (13.6 N·m).
9. Lubricate gear teeth with 2-4-C w/Teflon.
57040
a
b
95
95
2-4-C With Teflon (92-825407A12)
a - Primary Gear
b - Bolt and Flat Washer -- Torque to 120 lb. in. (13.6 N·m)
10. Secure assembled control platform onto cylinder block using 3 bolts. Torque bolts to
120 lb. in. (13.6 N·m).
57034
a
b
b
a - Platform
b - Bolts -- Torque to 120 lb. in. (13.6 N·m)
