TILLER HANDLE
Page 7B-4 90-826883R2 JUNE 1998
Control Cables
Removal

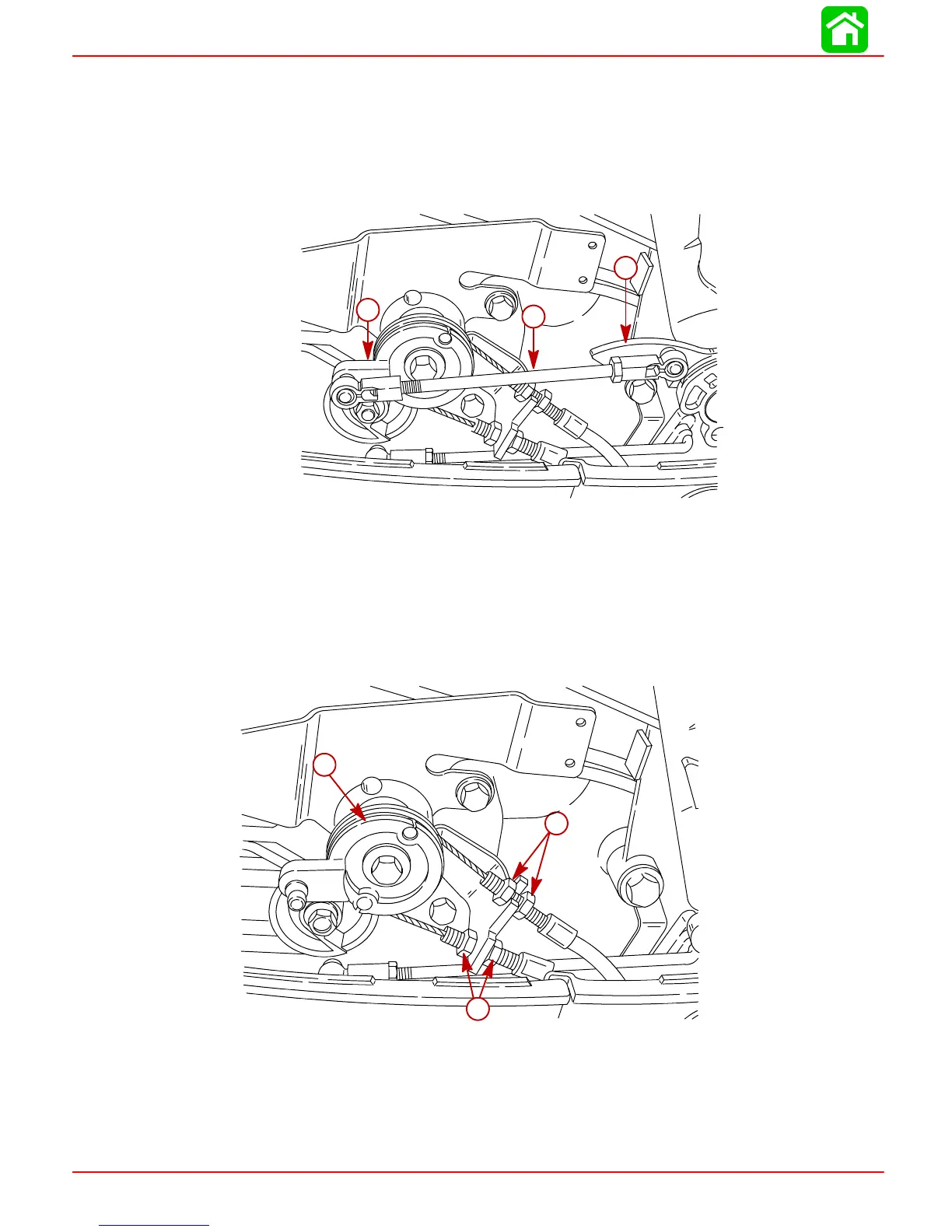

1. Place tiller handle twist grip in NEUTRAL position.
2. Remove throttle link rod from throttle cam and primary throttle lever.
57031
a
b
c
a - Link Rod
b - Throttle Cam
c - Primary Throttle Lever
3. Loosen jam nuts which secure control cables to anchor bracket.
4. Unwrap and remove control cables from pulley of primary gear.
NOTE: If not replacing control cables, mark top cable with a piece of tape to aid in reas-
sembly.
a
57032
a
b
a - Jam Nuts
b - Primary Gear
To Next Page
