Throttle Cable Installation
NOTE: Attach Shift cable to engine prior to attaching throttle cable.
1. Position the remote control handle forward, to wide-open-throttle position.
2. Install the throttle cable onto the throttle pin. lock in place with retainer latch.
3. Move throttle lever until tab contacts throttle stop. Adjust the barrel on the throttle
cable so that the barrel will fit into the barrel holder.
4. Slip the barrel into the barrel holder and place the barrel holder into the retaining pock-
et.
5. Check the throttle cable adjustment as follows.
a. Move the remote control handle back to neutral a few times and then return the
handle back to forward wide-open-position.
b. Recheck to make sure tab is contacting throttle stop.
a
b
c
d
e
f
g

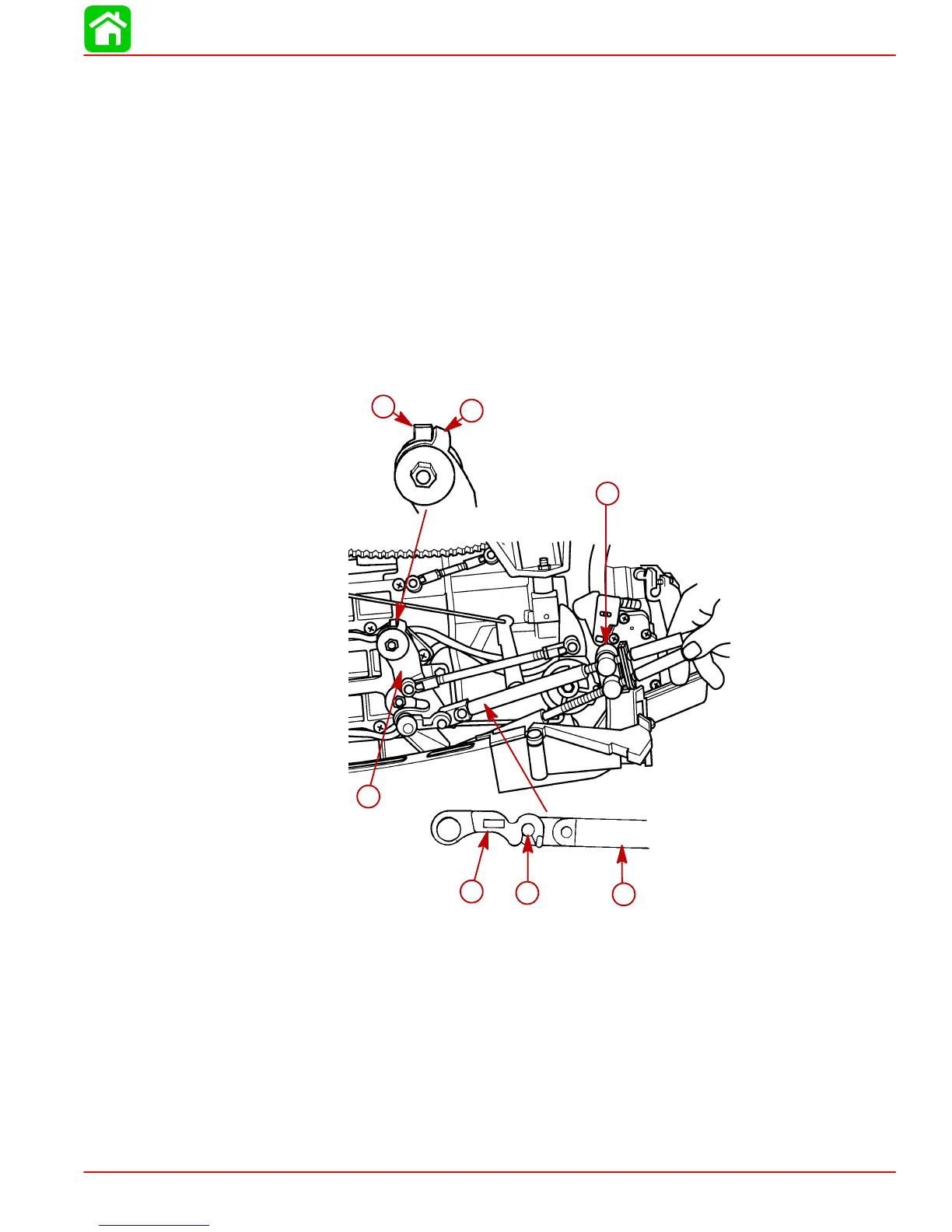

a- Throttle Cable
b- Throttle Pin
c- Retainer Latch
d- Barrel Holder
e-Tab
f - Throttle Stop
g- Throttle Lever
